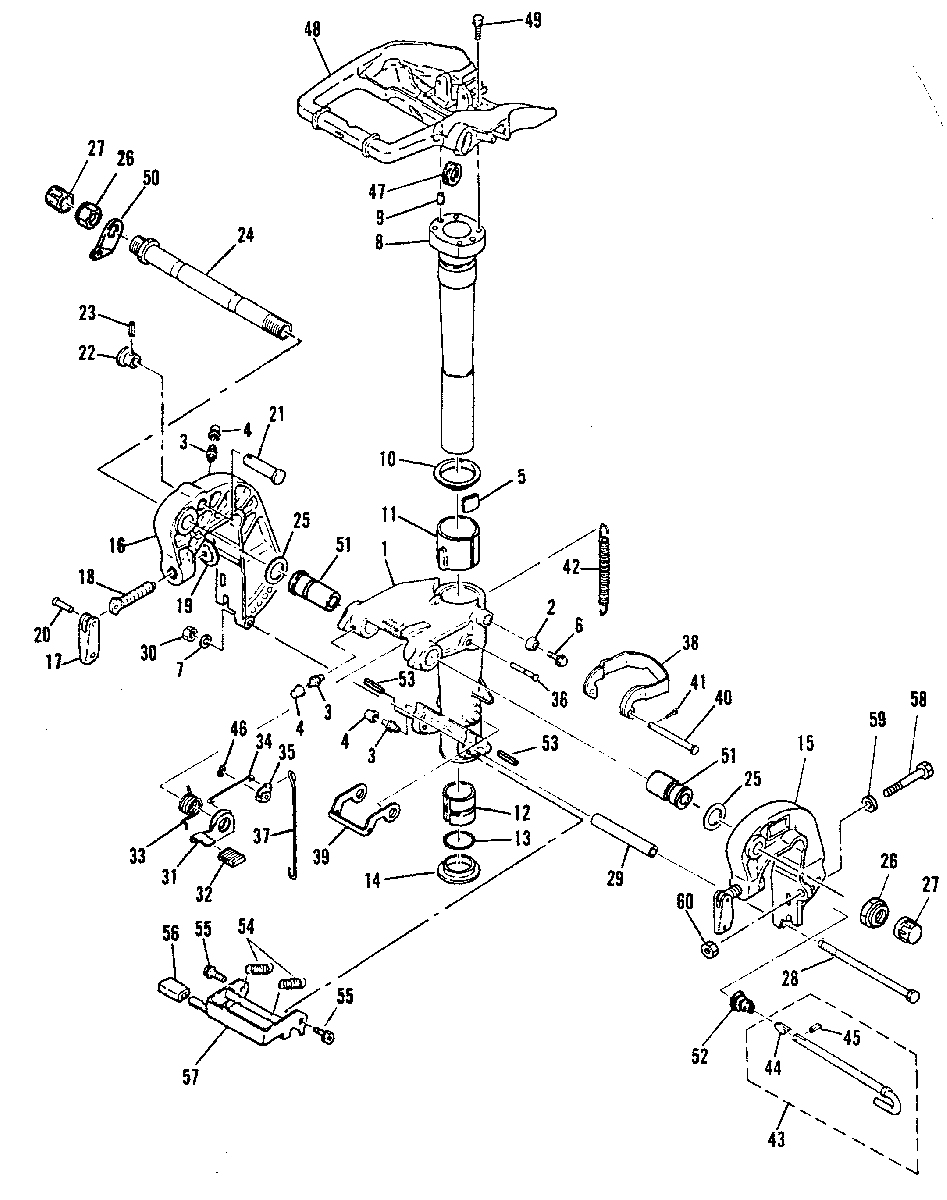

CLAMP AND SWIVEL BRACKET/REVERSE LOCK для Mariner - 30A 689-230101 AND UP
-
№АртикулНазвание
-
11485-9792M SWIVEL BRACKETSWIVEL BRACKET
-
226-91637M SEALSEAL
-
322-82369M GREASE FITTINGGREASE FITTING
-
481439M CAPCAP
-
580633M FRICTION PLATEFRICTION PLATE
-
610-96382M SCREWSCREW
-
712-82217M WASHERWASHER
-
984833M SHAFTSHAFT
-
917-82368M DOWEL PINDOWEL PIN
-
1012-81873M WASHERWASHER
-
1123-81964M BUSHING (UPPER)BUSHING (UPPER)
-
1223-81961M BUSHING (LOWER)BUSHING (LOWER)
-
1325-82274M O-RINGO-RING
-
1423-81959M BUSHINGBUSHING
-
151484-9797M CLAMP BRACKET (PORT)CLAMP BRACKET (PORT)
-
161484-9798M CLAMP BRACKET (STARBOARD)CLAMP BRACKET (STARBOARD)
-
17809959M HANDLEHANDLE
-
1810-81756M SCREWSCREW
-
1912-80638M PADPAD
-
2017-81888M ROLL PINROLL PIN
-
2184835M SHAFTSHAFT
-
2295650M KNOBKNOB
-
2317-82148M ROLL PINROLL PIN
-
2410-18974M BOLTBOLT
-
2512-81836M WASHERWASHER
-
2611-879172252 NUTNUT
-
27811914M CAP
NOTE #1: M-689-232775 & BELOW ML-689-532960 & BELOW E-689-250855 & BELOW EL-689-551575 & BELOWCAP
NOTE #1: M-689-232775 & BELOW ML-689-532960 & BELOW E-689-250855 & BELOW EL-689-551575 & BELOW -
27811914M CAP
NOTE #2: M-689-232776 & UP
ML-689-532961 & UP
E-689-250856 & UP
EL-689-551576CAP
NOTE #2: M-689-232776 & UP
ML-689-532961 & UP
E-689-250856 & UP
EL-689-551576 -
2810-82924M BOLTBOLT
-
2923-19108M SPACERSPACER
-
3011-82382M NUTNUT
-
3191640M LOCK/RELEASE LEVERLOCK/RELEASE LEVER
-
3291641M COVERCOVER
-
3324-91642M SPRINGSPRING
-
3491643M LINKLINK
-
3580648M TILT CAMTILT CAM
-
3617-19109M PINPIN
-
3780645M RODROD
-
3884837M HOOK (REAR)HOOK (REAR)
-
3980643M HOOK (FRONT)HOOK (FRONT)
-
4017-81882M PINPIN
-
4118-82125M COTTER PINCOTTER PIN
-
4224-19110M SPRINGSPRING
-
4317-94569M TILT LOCK PIN ASSEMBLYTILT LOCK PIN ASSEMBLY
-
4482857M STOPPERSTOPPER
-
4517-82144M ROLL PINROLL PIN
-
4653-82330M SNAP RINGSNAP RING
-
4725-82070M GROMMETGROMMET
-
4819113M BRACKETBRACKET
-
4910-84830M BOLTBOLT
-
5019111M PLATEPLATE
-
5123-19112M BUSHINGBUSHING
-
5224-815007M SPRINGSPRING
-
5317-95552M PINPIN
-
5424-95553M SPRINGSPRING
-
5510-95554M BOLTBOLT
-
5611932M COVERCOVER
-
5795551M LEVERLEVER
-
5810-82471M BOLTBOLT
-
5912-82217M WASHERWASHER
-
6011-82382M NUTNUT
