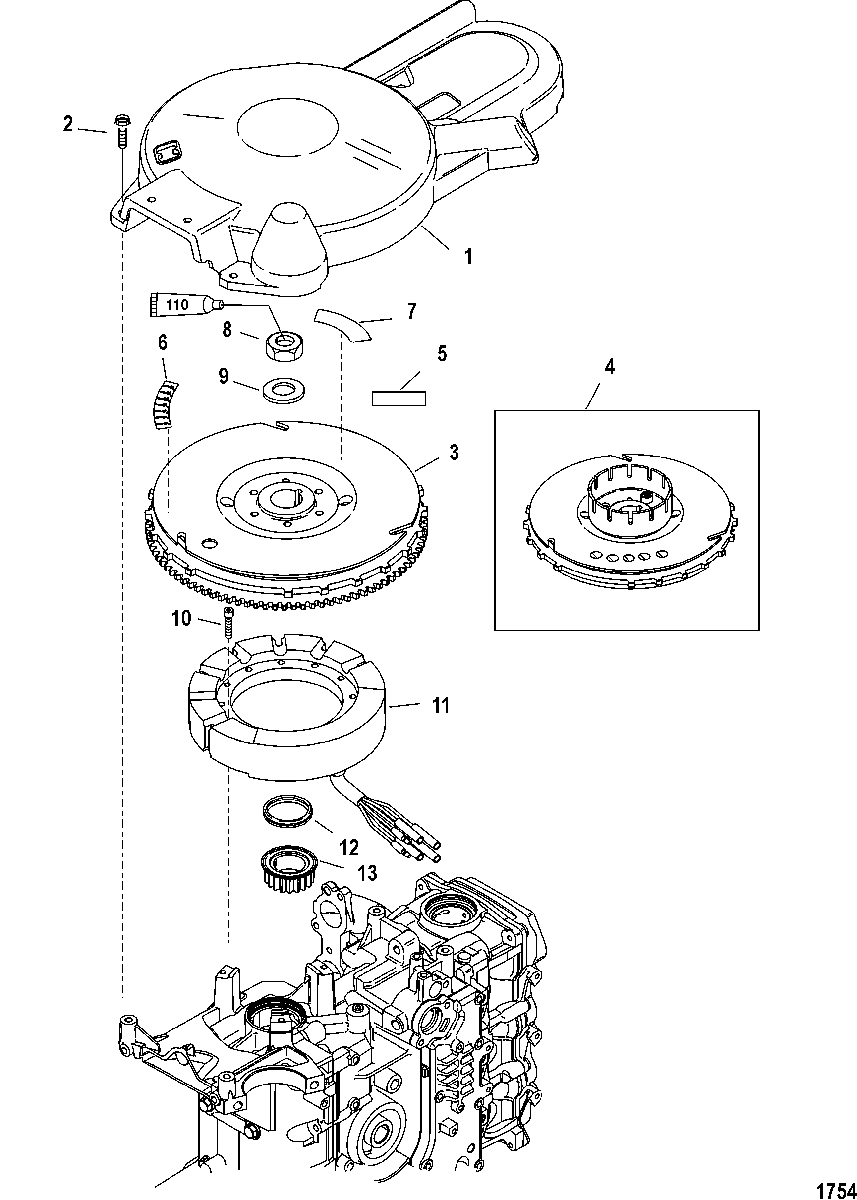

Flywheel для Mariner - 40 CARB (3 CYL.)(4-STROKE) 0T409000 THRU 1B226999
-
№АртикулНазвание
-
1859284T2 FLYWHEEL COVER
(ELECTRIC)FLYWHEEL COVER
(ELECTRIC) -
210-8248326 SCREW, (M6 x 25 MM)
(ELECTRIC)SCREW, (M6 x 25 MM)
(ELECTRIC) -
3284-832010T32 FLYWHEEL
(ELECTRIC)FLYWHEEL
(ELECTRIC) -
4200-8M0118174 FLYWHEEL
(MANUAL)FLYWHEEL
(MANUAL) -
4284-832010T29 FLYWHEEL
(MANUAL/ELECTRIC-W/CUP AND RING GEAR)FLYWHEEL
(MANUAL/ELECTRIC-W/CUP AND RING GEAR) -
5NSS NOT SOLD SEPARATE, Decal-Warning Spinning FlywheelNOT SOLD SEPARATE, Decal-Warning Spinning Flywheel
-
6NSS NOT SOLD SEPARATE, Decal-Timing MarksNOT SOLD SEPARATE, Decal-Timing Marks
-
7NSS NOT SOLD SEPARATE, Decal-Warning-NeutralNOT SOLD SEPARATE, Decal-Warning-Neutral
-
811-893789 NUTNUT
-
912-893762 WASHERWASHER
-
1010-4013930 SCREW, (M5 x 30)SCREW, (M5 x 30)
-
11398-852387T7 STATOR
(ELECTRIC)STATOR
(ELECTRIC) -
11398-852386T6 STATOR
(MANUAL)STATOR
(MANUAL) -
12834838 LOAD RINGLOAD RING
-
13833102T GEAR, DriveGEAR, Drive
-
-61-803017T01 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
-
-61-803016T01 POWERHEAD ASSEMBLY
(BIGFOOT)POWERHEAD ASSEMBLY
(BIGFOOT)
