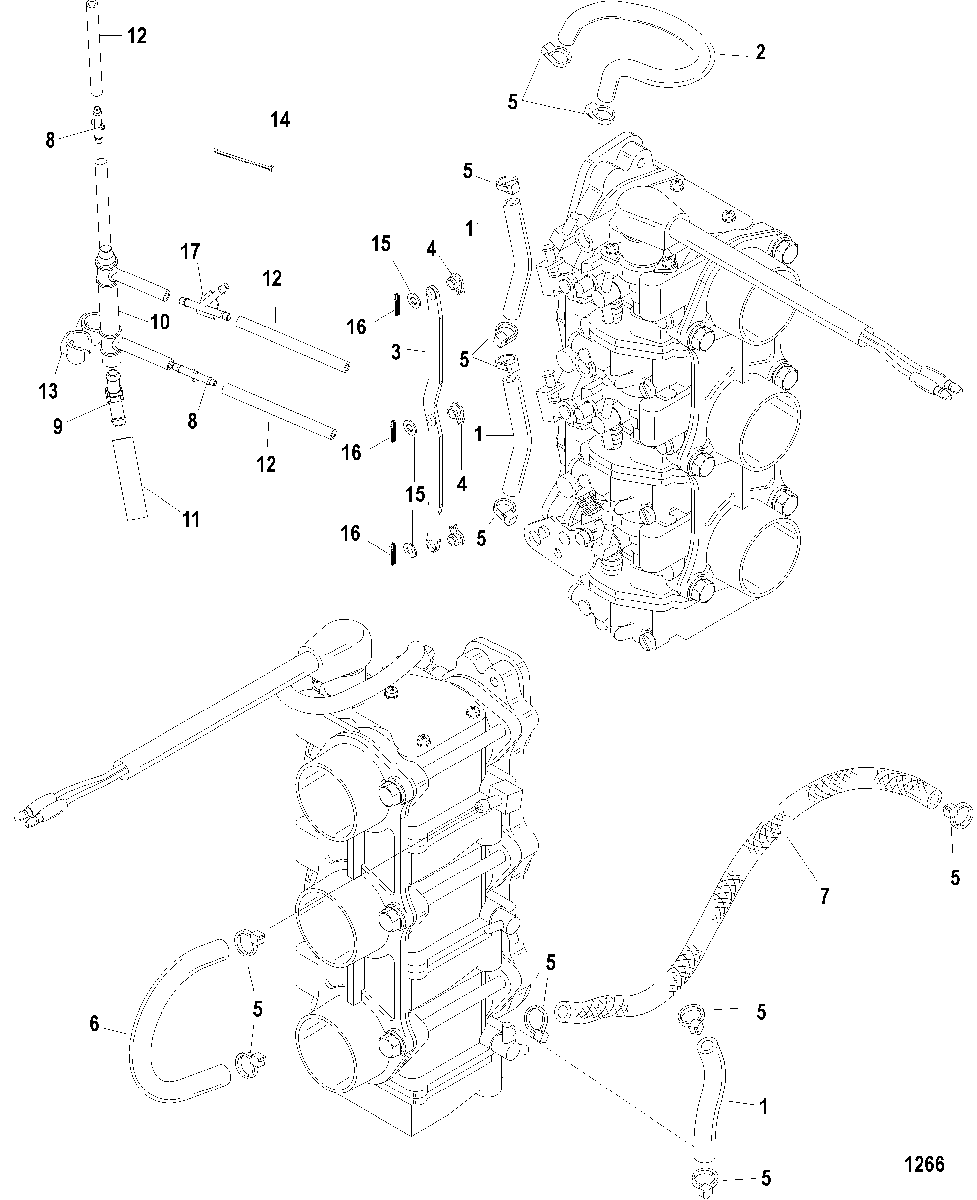

Fuel Lines для Mariner - 40 CARB (3 CYL.)(4-STROKE) 0T409000 THRU 1B226999
-
№АртикулНазвание
-
132-856607 HOSEHOSE
-
232-856609 HOSEHOSE
-
3856610 LINKAGELINKAGE
-
423-803896 BUSHINGBUSHING
-
554-8M0064024 TIE STRAPTIE STRAP
-
632-856613 HOSEHOSE
-
732-856611 HOSE and SLEEVEHOSE and SLEEVE
-
822-822771 CONNECTORCONNECTOR
-
922-878404 FITTING, 45 DegreeFITTING, 45 Degree
-
1032-878423 HOSEHOSE
-
1132-85682239 TUBING, (17.00 Inches Bulk) (Cut to 3-1/2 Inches)TUBING, (17.00 Inches Bulk) (Cut to 3-1/2 Inches)
-
1232-82381310 HOSE, (80 mm)HOSE, (80 mm)
-
1354-878425 CLIPCLIP
-
1456762 TIE STRAP, (4.00 Inches)TIE STRAP, (4.00 Inches)
-
1512-8542592 WASHERWASHER
-
1618-880850 COTTER PINCOTTER PIN
-
1722-878593 Y-CONNECTORY-CONNECTOR
