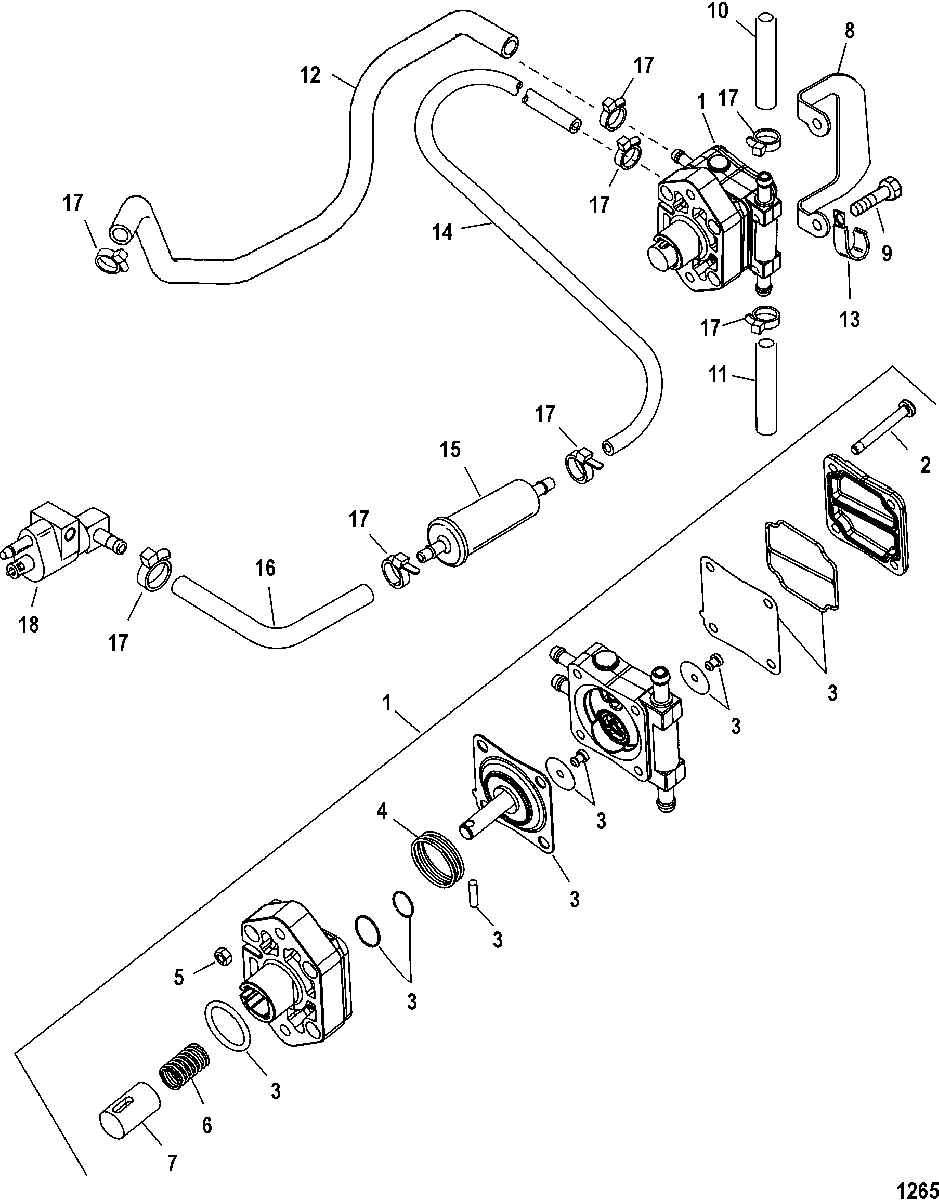

Fuel Pump для Mariner - 40 CARB (3 CYL.)(4-STROKE) 0T409000 THRU 1B226999
-
№АртикулНазвание
-
18M0141844 PUMP, Fuel
SN# 0T939654 & BelowPUMP, Fuel
SN# 0T939654 & Below -
18M0141844 PUMP, Fuel
SN# 0P301503 & BelowPUMP, Fuel
SN# 0P301503 & Below -
18M0141844 PUMP, Fuel
SN# 0T939655 THRU 1B033613PUMP, Fuel
SN# 0T939655 THRU 1B033613 -
18M0141844 PUMP, Fuel
SN# 0P301504 & UpPUMP, Fuel
SN# 0P301504 & Up -
18M0141844 PUMP, Fuel
(Sold Complete Only) SN# 1B036614 & UpPUMP, Fuel
(Sold Complete Only) SN# 1B036614 & Up -
210-883517 SCREW
SN# 1B036613 & BelowSCREW
SN# 1B036613 & Below -
3883520A1 DIAPHRAGM KIT
SN# 1B036613 & BelowDIAPHRAGM KIT
SN# 1B036613 & Below -
424-8835181 SPRING
SN# 1B036613 & BelowSPRING
SN# 1B036613 & Below -
511-883519 NUT
SN# 1B036613 & BelowNUT
SN# 1B036613 & Below -
624-883518A03 SPRING
SN# 0T939654 & BelowSPRING
SN# 0T939654 & Below -
624-883518A03 SPRING
SN# 0P301503 & BelowSPRING
SN# 0P301503 & Below -
624-883518A03 SPRING
SN# 0T939655 THRU 1B036613SPRING
SN# 0T939655 THRU 1B036613 -
624-883518A03 SPRING
SN# 0P301504 & UpSPRING
SN# 0P301504 & Up -
7NSS NOT SOLD SEPARATE, Cap
SN# 1B036613 & BelowNOT SOLD SEPARATE, Cap
SN# 1B036613 & Below -
88M0007776 DEFLECTOR, CowlDEFLECTOR, Cowl
-
910-82684430 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
1032-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 13 Inches) To Block Exhaust CoverTUBING, (.312) (70.00 Inches Bulk) (Cut to 13 Inches) To Block Exhaust Cover
-
1132-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 6 Inches) To TelltaleTUBING, (.312) (70.00 Inches Bulk) (Cut to 6 Inches) To Telltale
-
1232-856611 HOSE and SLEEVE, To Float BowlHOSE and SLEEVE, To Float Bowl
-
1354-55098 J CLIPJ CLIP
-
1432-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 14 Inches)HOSE, (57.00 Inches Bulk) (Cut to 14 Inches)
-
1535-877565T1 FILTER, FuelFILTER, Fuel
-
1632-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 19 Inches)HOSE, (57.00 Inches Bulk) (Cut to 19 Inches)
-
1754-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1822-816856A4 CONNECTOR ASSEMBLY, FuelCONNECTOR ASSEMBLY, Fuel
-
-25-16524 O-RING, Fuel ConnectorO-RING, Fuel Connector
