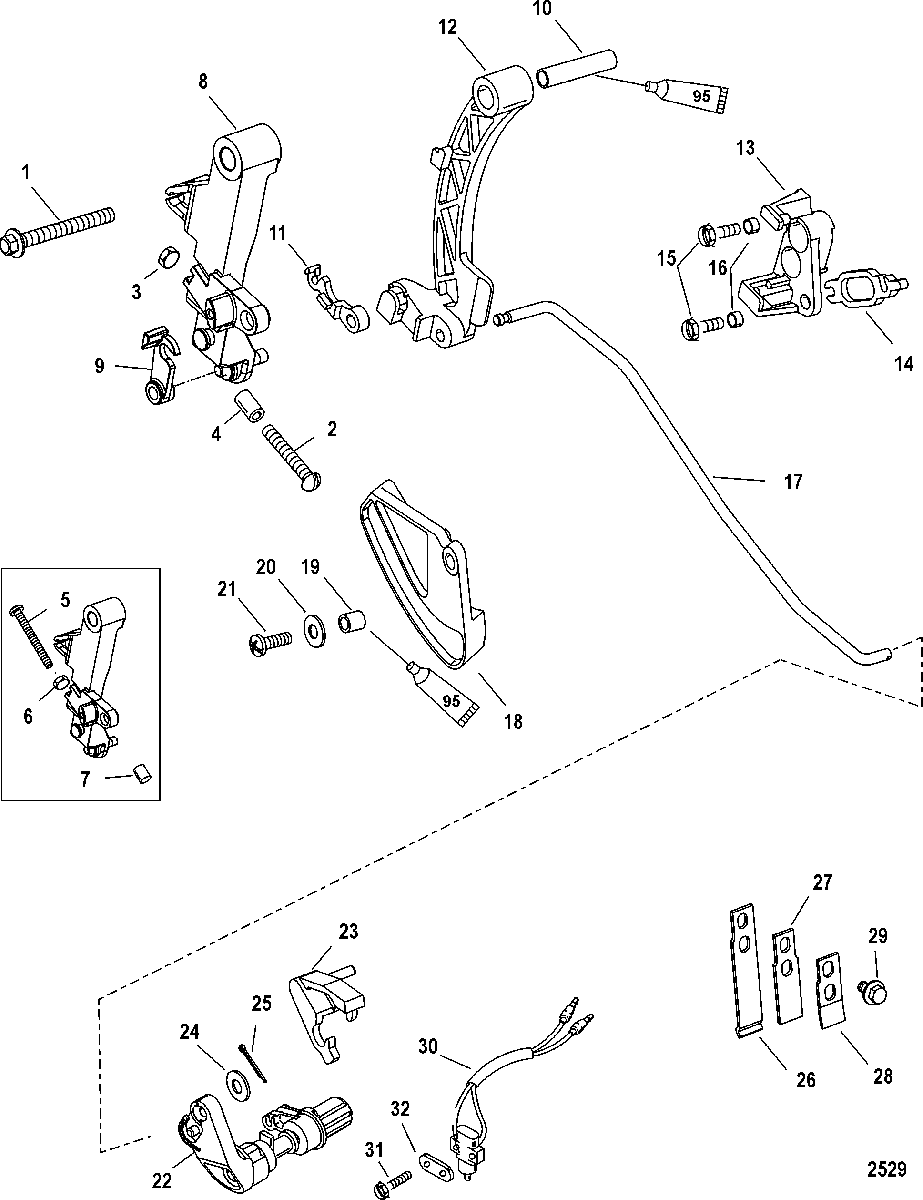

Linkage(Non Bigfoot) для Mariner - 40 CARB (3 CYL.)(4-STROKE) 0T409000 THRU 1B226999
-
№АртикулНазвание
-
110-40011158 SCREW, (M8 x 70) Stainless SteelSCREW, (M8 x 70) Stainless Steel
-
210-8147763 SCREW, (M6 x 60)
(30 HP)SCREW, (M6 x 60)
(30 HP) -
311-401196 NUT, (M6)
(30 HP)NUT, (M6)
(30 HP) -
423-823807 BUSHING
(30 HP)BUSHING
(30 HP) -
510-8147763 SCREW, (M6 x 60)
(40 HP)SCREW, (M6 x 60)
(40 HP) -
611-401196 NUT, (M6)
(40 HP)NUT, (M6)
(40 HP) -
742942 CAP
(40 HP)CAP
(40 HP) -
8822682A4 LEVER ASSEMBLY, ThrottleLEVER ASSEMBLY, Throttle
-
9883160 RETAINERRETAINER
-
1023-825078 BUSHINGBUSHING
-
11822459 RETAINER
(NON HANDLE)RETAINER
(NON HANDLE) -
128259571 LEVER, Shift
(NON HANDLE)LEVER, Shift
(NON HANDLE) -
13827706A4 BRACKET
(NON HANDLE)BRACKET
(NON HANDLE) -
1498889 LATCH
(NON HANDLE)LATCH
(NON HANDLE) -
1510-8248324 SCREW, (M6 x 16)
(NON HANDLE)SCREW, (M6 x 16)
(NON HANDLE) -
1623-15885 SLEEVE
(NON HANDLE)SLEEVE
(NON HANDLE) -
17882820 SHIFT ROD
(NON HANDLE)SHIFT ROD
(NON HANDLE) -
188535853 CAM, ThrottleCAM, Throttle
-
1923-309772 SPACERSPACER
-
2012-4002314 WASHERWASHER
-
2110-40056107 SCREW, (M5 x 16)SCREW, (M5 x 16)
-
22826588A4 SHIFT SHAFT ASSEMBLY, HorizontalSHIFT SHAFT ASSEMBLY, Horizontal
-
238277071 RETAINERRETAINER
-
2412-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
2518-210711 COTTER PINCOTTER PIN
-
2624-826077 SPRING, DetentSPRING, Detent
-
2724-824993 SPRING, BackingSPRING, Backing
-
28824994 SPRING, PlateSPRING, Plate
-
2910-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
3087-8M0052927 SWITCH
(ELECTRIC HANDLE MODELS)SWITCH
(ELECTRIC HANDLE MODELS) -
3110-88075020 SCREW, (M3 x 20)
(ELECTRIC HANDLE MODELS)SCREW, (M3 x 20)
(ELECTRIC HANDLE MODELS) -
32824923 PLATE
(ELECTRIC HANDLE MODELS)PLATE
(ELECTRIC HANDLE MODELS)
