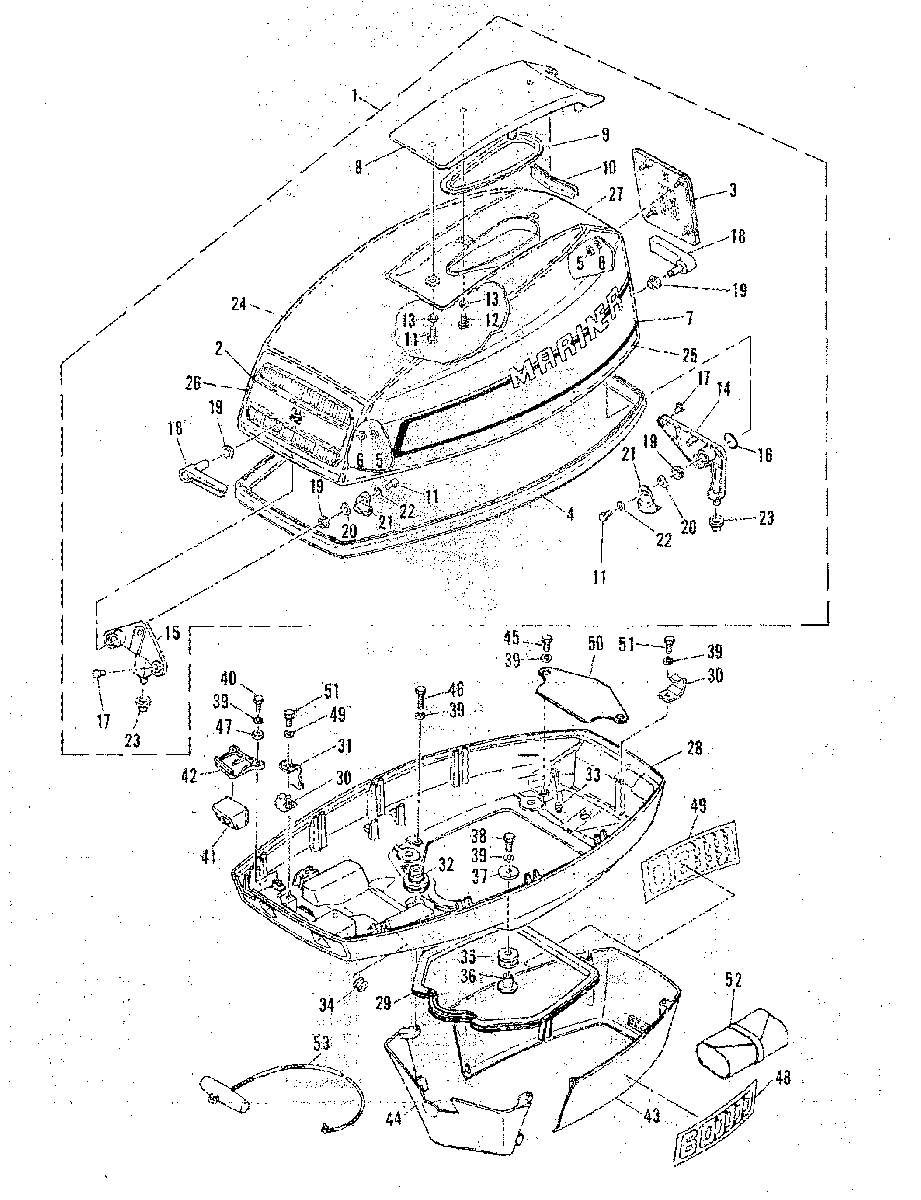

COWLING для Mariner - 60 (2 CYL.) 675-304181 AND UP
-
№АртикулНазвание
-
12168-8601M TOP COWL ASS'YTOP COWL ASS'Y
-
282912M EMBLEM,FRONTEMBLEM,FRONT
-
382999M EMBLEM, REAREMBLEM, REAR
-
483043M SEAL, TOP COWLSEAL, TOP COWL
-
511-82388M NUTNUT
-
612-82211M WASHERWASHER
-
737-82865M DECAL, SIDE SETDECAL, SIDE SET
-
883024M COVER, AIR DUCTCOVER, AIR DUCT
-
983025M AIR SHROUDAIR SHROUD
-
1083039M SEAL, RUBBERSEAL, RUBBER
-
1110-91772M BOLTBOLT
-
1210-826957M BOLTBOLT
-
1312-82214M WASHER, LOCKWASHER, LOCK
-
1483040M HOLDERHOLDER
-
1583041M HOLDERHOLDER
-
1625-82269M O-RINGO-RING
-
1717-82982M RIVETRIVET
-
1883026M LEVER, COWL CLAMPLEVER, COWL CLAMP
-
1923-41823M BUSHINGBUSHING
-
2013-81871M WASHER, WAVEWASHER, WAVE
-
2183027M CLAMP, COWLCLAMP, COWL
-
2212-81794M WASHERWASHER
-
2383042M DAMPERDAMPER
-
2483232M SOUND BLANKETSOUND BLANKET
-
2583233M SOUND BLANKETSOUND BLANKET
-
2684323M SOUND BLANKETSOUND BLANKET
-
2784323M SOUND BLANKETSOUND BLANKET
-
282168-9367M BOTTOM COWLBOTTOM COWL
-
2927-83044M SEAL, BOTTOM COWL TO APRONSEAL, BOTTOM COWL TO APRON
-
3083045M HOOK, COWL CLAMP - FRONTHOOK, COWL CLAMP - FRONT
-
3182996M CLAMPCLAMP
-
3225-81369M GROMMETGROMMET
-
3322-81326M FITTING, LOWER COWLFITTING, LOWER COWL
-
3525-82065M GROMMETGROMMET
-
3623-83610M COLLARCOLLAR
-
3712-81796M WASHERWASHER
-
3810-83285M BOLTBOLT
-
3913-82212M WASHER, LOCKWASHER, LOCK
-
4010-826957M BOLTBOLT
-
4181370M BUMPER, COWLBUMPER, COWL
-
4283153M RETAINER, COWL BUMPERRETAINER, COWL BUMPER
-
4395664M PARON, COWL - REARPARON, COWL - REAR
-
4495665M APRON, COWL- FRONTAPRON, COWL- FRONT
-
4510-84058M BOLTBOLT
-
4610-82405M BOLTBOLT
-
4712-82214M WASHERWASHER
-
4837-83028M DECAL (HP) - PORTDECAL (HP) - PORT
-
4937-83029M DECAL (HP) - STARBOARDDECAL (HP) - STARBOARD
-
5083047M COVER, BOTTOMCOVER, BOTTOM
-
5110-84211M BOLTBOLT
-
5291-803581 TOOL KITTOOL KIT
-
5347341A11 ROPE, EMERGENCY STARTROPE, EMERGENCY START
