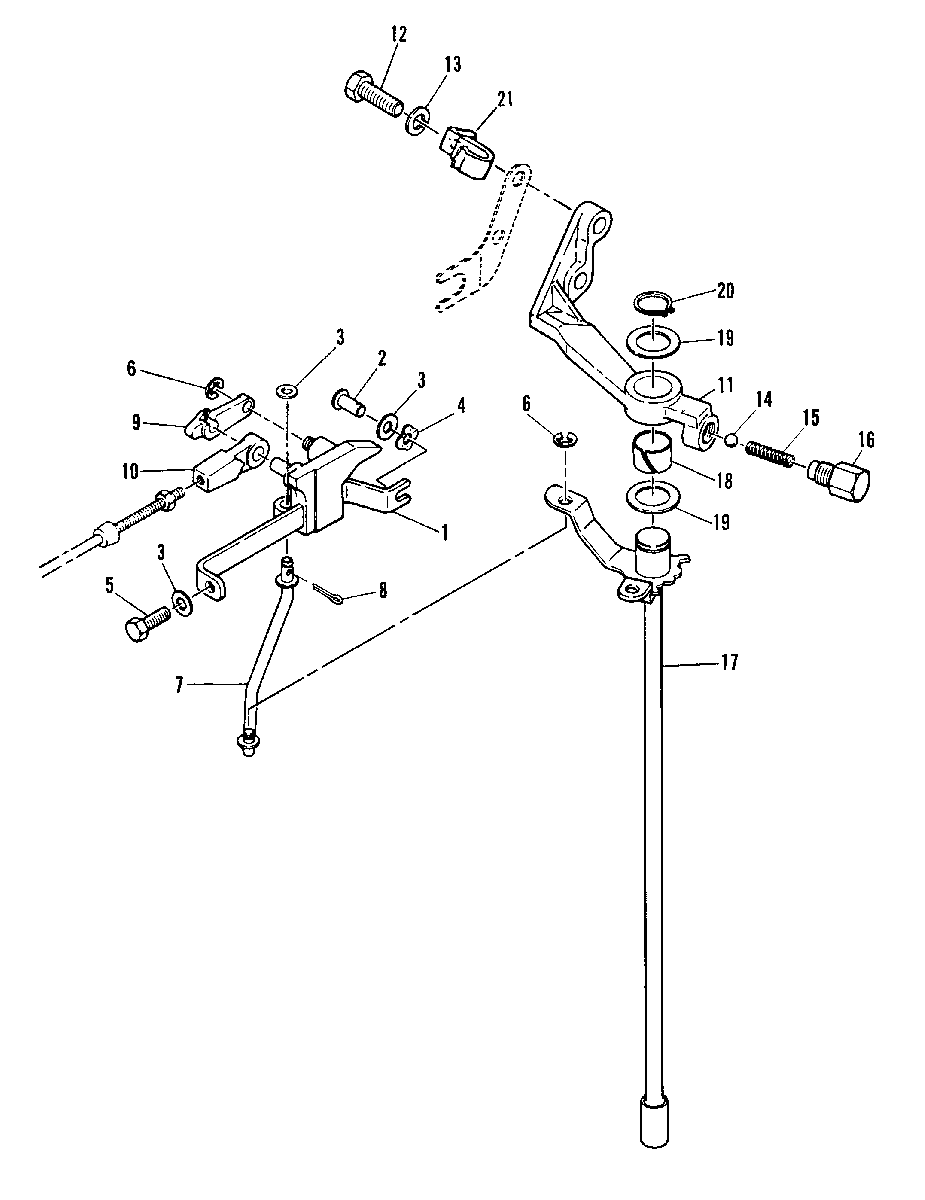

GEAR SHIFT LINKAGE для Mariner - 60 (2 CYL.) 675-304181 AND UP
-
№АртикулНазвание
-
198919M BRACKET, SHIFTBRACKET, SHIFT
-
217-82137M PIN, CLEVISPIN, CLEVIS
-
312-82214M WASHER, LOCKWASHER, LOCK
-
413-81866M WASHER, WAVEWASHER, WAVE
-
510-82423M BOLTBOLT
-
653-82330M SNAP RINGSNAP RING
-
784209M LEVER, SHIFT RODLEVER, SHIFT ROD
-
818-43089M PIN, COTTERPIN, COTTER
-
992657M RETAINER, CLEVISRETAINER, CLEVIS
-
1081480M CLEVIS, SHIFT CONTROL CABLECLEVIS, SHIFT CONTROL CABLE
-
1182556M BRACKET, SHIFT RODBRACKET, SHIFT ROD
-
1210-82441M BOLTBOLT
-
1313-82215M WASHER, LOCKWASHER, LOCK
-
1492659M BALL, DETENTBALL, DETENT
-
1524-82081M SPRINGSPRING
-
1623-80635M RETAINER, SPRINGRETAINER, SPRING
-
1781405M SHIFT ROD, UPPER-(E)SHIFT ROD, UPPER-(E)
-
1792656M SHIFT ROD, UPPER-(EL)SHIFT ROD, UPPER-(EL)
-
1823-81953M BUSHINGBUSHING
-
1912-81858M SPACER, SHIFT RODSPACER, SHIFT ROD
-
2053-19259M SNAP RINGSNAP RING
-
2154-92664M CLAMPCLAMP
