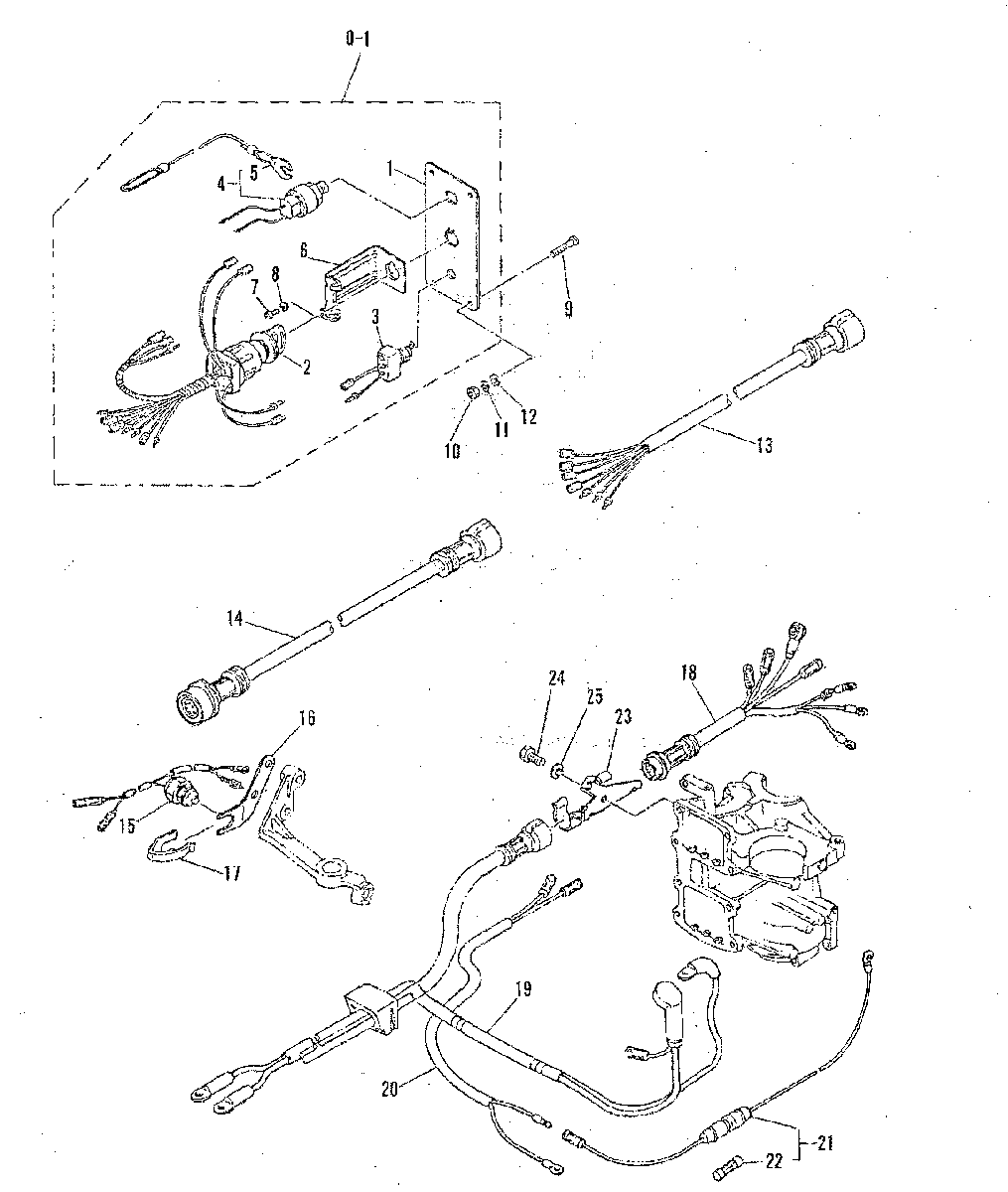

ELECTRIC START COMPONENTS для Mariner - 60 (2 CYL.) 675-304181 AND UP
-
№АртикулНазвание
-
0-118975A1 SWITCH PANEL ASS'YSWITCH PANEL ASS'Y
-
192661M SWITCH PANELSWITCH PANEL
-
287-8M0078321 MAIN SWITCH ASS'YMAIN SWITCH ASS'Y
-
387-84944M SWITCH, CHOKESWITCH, CHOKE
-
487-97682M KILL SWITCH ASS'YKILL SWITCH ASS'Y
-
597756M STOPPERSTOPPER
-
681537M BRACKETBRACKET
-
710-82500M SCREWSCREW
-
812-97084M WASHERWASHER
-
910-84946M SCREWSCREW
-
1011-82388M NUTNUT
-
1113-82186M WASHERWASHER
-
1212-82211M WASHERWASHER
-
1384-84711M EXTENTION, WIRE HARNESSEXTENTION, WIRE HARNESS
-
1484960M EXTENTION, WIRE HARNESS (2M)EXTENTION, WIRE HARNESS (2M)
-
1587-95631001 NEUTRAL SWITCH ASS'YNEUTRAL SWITCH ASS'Y
-
1681529M BRACKETBRACKET
-
1781530M PLATE
SERIAL 00000000-00001540PLATE
SERIAL 00000000-00001540 -
1884-95668M WIRE HARNESS ASS'YWIRE HARNESS ASS'Y
-
1984-98912M WIRE, LEADWIRE, LEAD
-
2084-97086M WIRE LEADWIRE LEAD
-
2184937M FUSE HOLDER ASS'YFUSE HOLDER ASS'Y
-
2288-81522M FUSE (12V-20A)FUSE (12V-20A)
-
2354-92668M CLAMPCLAMP
-
2410-82436M BOLTBOLT
-
2512-82217M WASHERWASHER
