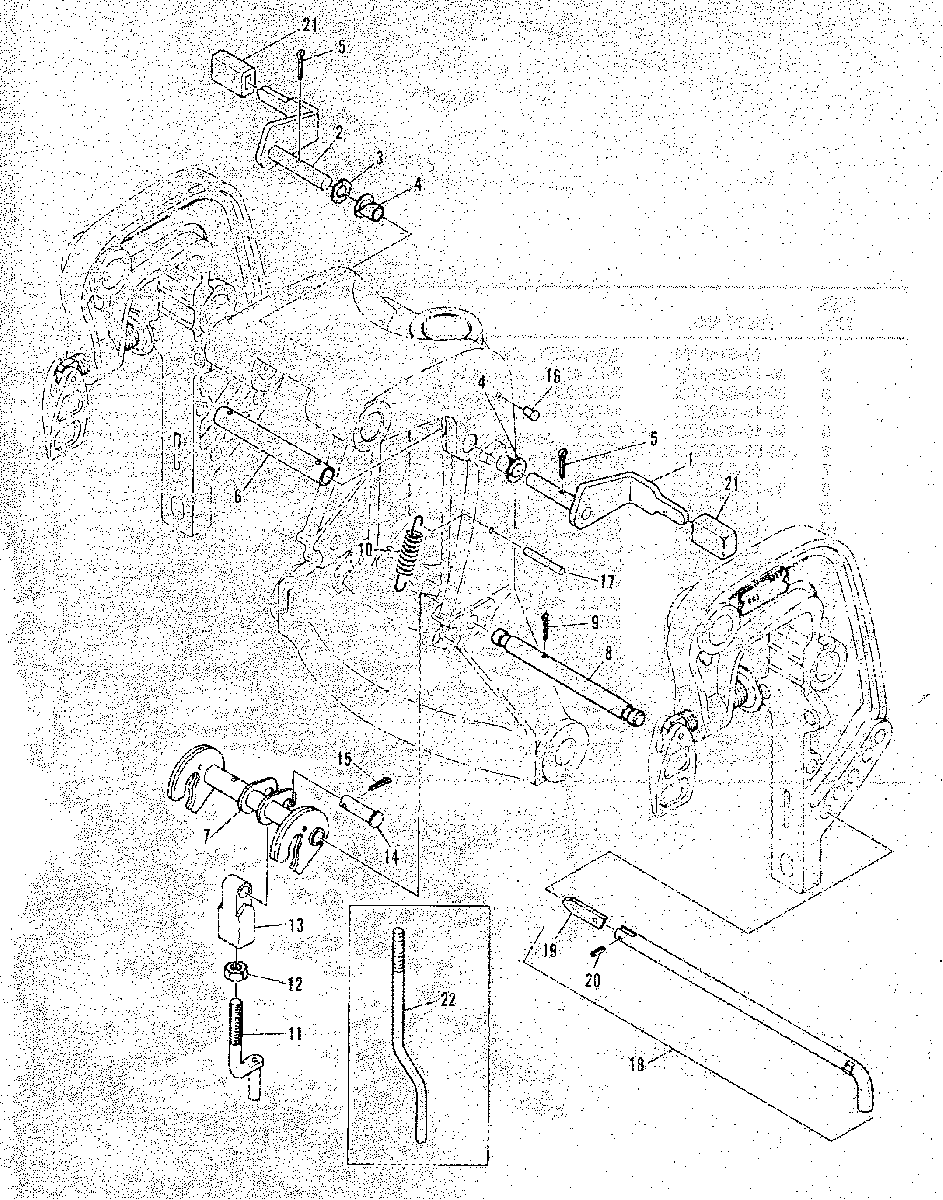

REVERSE LOCK для Mariner - 60 (2 CYL.) 675-304181 AND UP
-
№АртикулНазвание
-
181393M LEVER, TILT STOP SUPPORT (PORT)LEVER, TILT STOP SUPPORT (PORT)
-
281394M LEVER, TILT STOP SUPPORT (STARBOARD)LEVER, TILT STOP SUPPORT (STARBOARD)
-
313-92652M WASHER, WAVEWASHER, WAVE
-
423-81947M BUSHINGBUSHING
-
518-82132M PIN, COTTERPIN, COTTER
-
623-81980M COLLAR, TILT STOP SUPPORTCOLLAR, TILT STOP SUPPORT
-
797088T REVERSE LOCK
SERIAL 00001261-09999999REVERSE LOCK
SERIAL 00001261-09999999 -
797088T REVERSE LOCK
SERIAL 00000000-00001260REVERSE LOCK
SERIAL 00000000-00001260 -
817-41314M ROD, REVERSE LOCKROD, REVERSE LOCK
-
918-82130M PIN,COTTERPIN,COTTER
-
1024-82103M SPRING, TENSIONSPRING, TENSION
-
1192653M ROD, REVERSE LOCK (E)ROD, REVERSE LOCK (E)
-
1211-82382M NUTNUT
-
1381400M NUT, ADJUSTINGNUT, ADJUSTING
-
1417-82138M PIN, CLEVISPIN, CLEVIS
-
1518-82128M PIN, COTTERPIN, COTTER
-
1617-81909M RIVETRIVET
-
1717-82159M PIN, ROLLPIN, ROLL
-
1817-814972T TILT LOCK PIN ASS'YTILT LOCK PIN ASS'Y
-
1984044M STOPPER PLATESTOPPER PLATE
-
2017-82145M PIN, ROLLPIN, ROLL
-
2181395M COVERCOVER
-
2281399M ROD, REVERSE LOCK (EL)ROD, REVERSE LOCK (EL)
