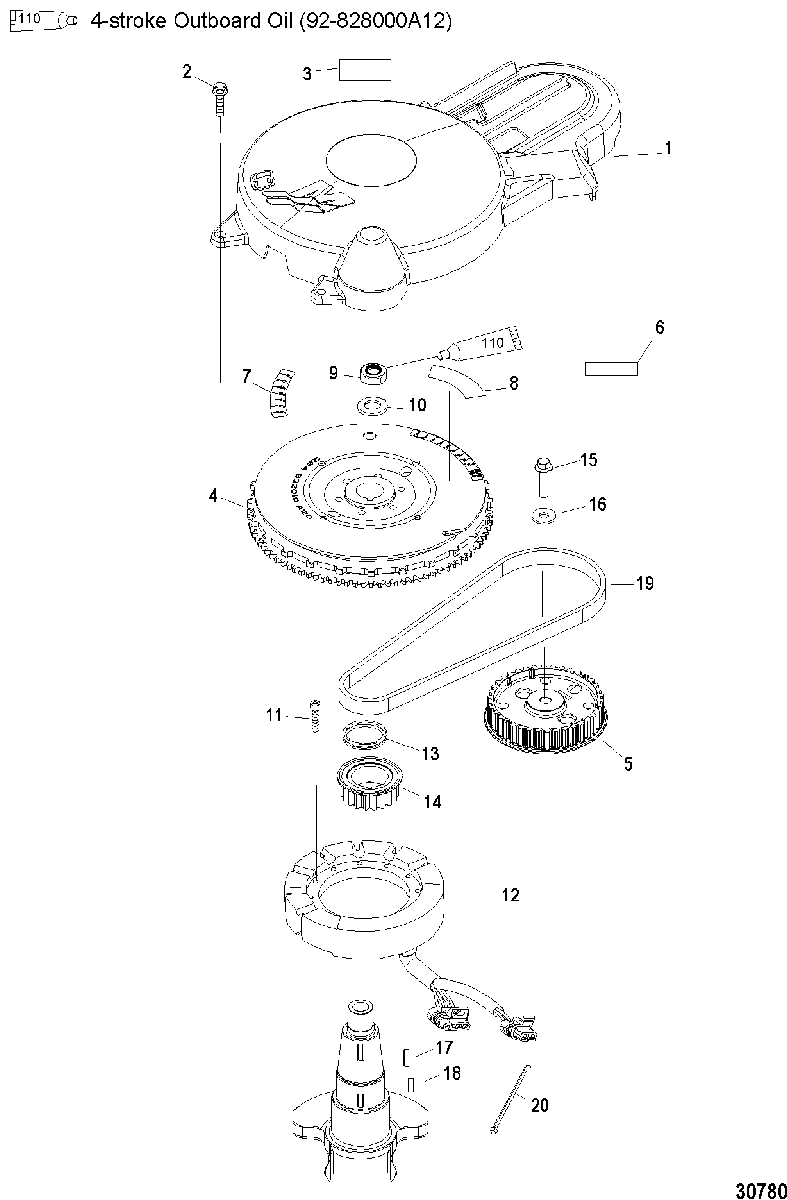

FLYWHEEL для Mariner - 60 (4-STROKE)(4 CYL.) 0T178500 THRU 0T598999
-
№АртикулНазвание
-
1859284T2 FLYWHEEL COVERFLYWHEEL COVER
-
210-8248326 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
337-804655A01 DECAL, EPA Label Information
(SEE NOTE)DECAL, EPA Label Information
(SEE NOTE) -
4284-832010T32 FLYWHEELFLYWHEEL
-
58331045 GEAR, DrivenGEAR, Driven
-
6NSS NOT SOLD SEPARATE, DecalNOT SOLD SEPARATE, Decal
-
7NSS NOT SOLD SEPARATE, DecalNOT SOLD SEPARATE, Decal
-
8NSS NOT SOLD SEPARATE, DecalNOT SOLD SEPARATE, Decal
-
911-893789 NUTNUT
-
1012-893762 WASHERWASHER
-
1110-4013930 SCREW, (M5 x 30)SCREW, (M5 x 30)
-
12398-852387T7 STATORSTATOR
-
13834838 LOAD RINGLOAD RING
-
14833102T GEAR, DriveGEAR, Drive
-
1510-82761140 SCREW, (M10 x 40)SCREW, (M10 x 40)
-
1612-4002320 WASHERWASHER
-
1728-91800 KEY, WoodruffKEY, Woodruff
-
1828-893761 KEYKEY
-
1957-8M0065179 BELTBELT
-
2054-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
-61-893678T03 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
-
-893505T01 CYLINDER HEAD ASSEMBLYCYLINDER HEAD ASSEMBLY
