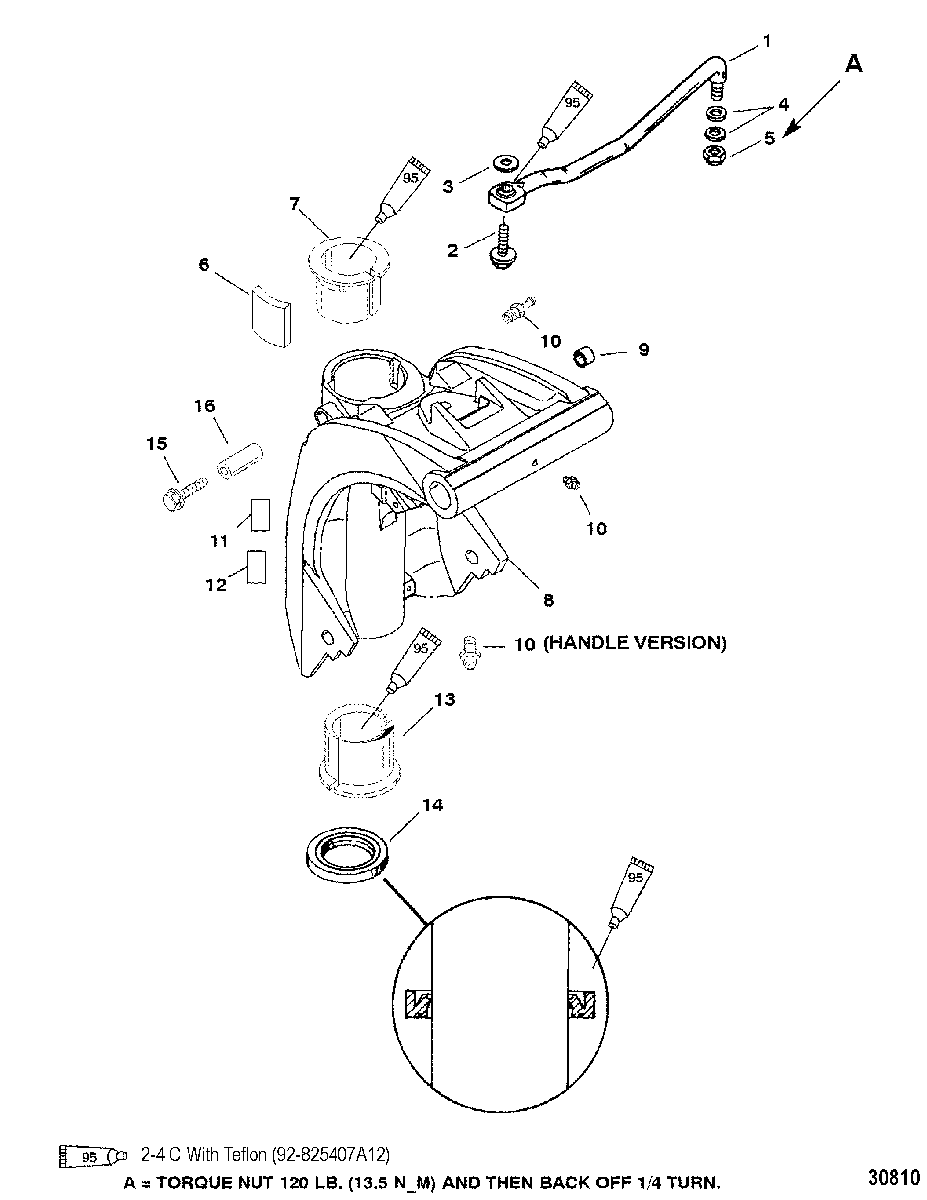

SWIVEL BRACKET для Mariner - 60 (4-STROKE)(4 CYL.) 0T178500 THRU 0T598999
-
№АртикулНазвание
-
119608A14 ATTACHING KIT, Engine Steering
(ELECTRIC NON HANDLE)ATTACHING KIT, Engine Steering
(ELECTRIC NON HANDLE) -
210-823919 SCREW, (.375-24 x 1.500)
(ELECTRIC NON HANDLE)SCREW, (.375-24 x 1.500)
(ELECTRIC NON HANDLE) -
312-8M0109680 WASHER, (.390 x .546 x .12)
(ELECTRIC NON HANDLE)WASHER, (.390 x .546 x .12)
(ELECTRIC NON HANDLE) -
412-37828 WASHER, (.390 x .625 x .062) Stainless Steel
(ELECTRIC NON HANDLE)WASHER, (.390 x .625 x .062) Stainless Steel
(ELECTRIC NON HANDLE) -
511-8M0042636 NUT, (.375-24) Stainless Steel
(ELECTRIC NON HANDLE)NUT, (.375-24) Stainless Steel
(ELECTRIC NON HANDLE) -
6822397 PUCK
(ELECTRIC NON HANDLE)PUCK
(ELECTRIC NON HANDLE) -
723-8217711 BUSHINGBUSHING
-
81401-850066T01 SWIVEL BRACKETSWIVEL BRACKET
-
923-19606 BEARINGBEARING
-
1022-74036 FITTING, Grease
(QTY. OF 3 REQUIRED ON HANDLE VERSIONS)FITTING, Grease
(QTY. OF 3 REQUIRED ON HANDLE VERSIONS) -
1137-8237011 DECAL, Co-Pilot
(HANDLE)DECAL, Co-Pilot
(HANDLE) -
12NSS NOT SOLD SEPARATE, DecalNOT SOLD SEPARATE, Decal
-
1323-821777 BUSHING (LOWER)BUSHING (LOWER)
-
1426-822404 SEALSEAL
-
1510-4008910 SCREW, (M8 x 10) Stainless Steel
(HANDLE)SCREW, (M8 x 10) Stainless Steel
(HANDLE) -
1510-40011149 SCREW, (M8 x 25) Stainless Steel
(NON-HANDLE)SCREW, (M8 x 25) Stainless Steel
(NON-HANDLE) -
168282451 SEAL
(NON-HANDLE)SEAL
(NON-HANDLE)
