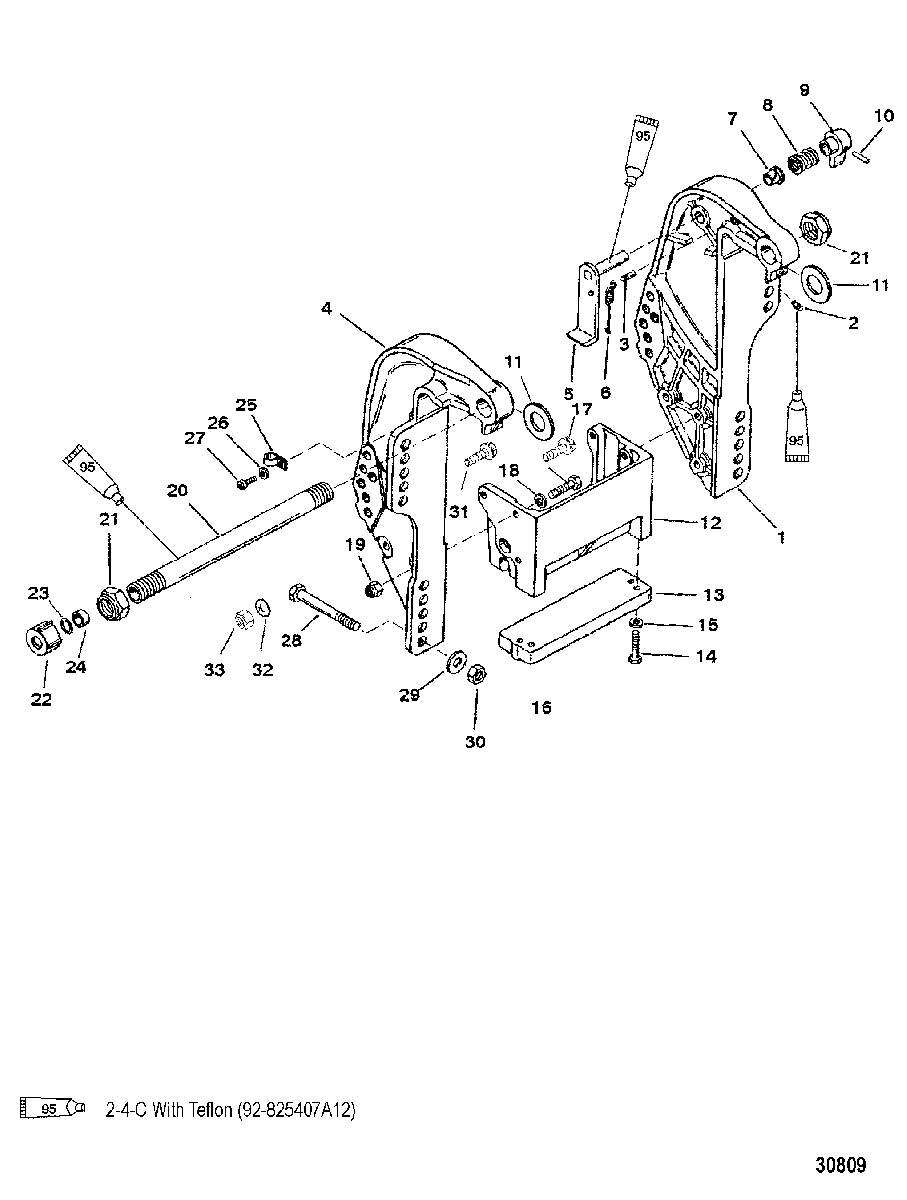

TRANSOM BRACKET для Mariner - 60 (4-STROKE)(4 CYL.) 0T178500 THRU 0T598999
-
№АртикулНазвание
-
13418-822866T04 BRACKET ASSEMBLY, Transom
(PORT)BRACKET ASSEMBLY, Transom
(PORT) -
222-98727 FITTING, GreaseFITTING, Grease
-
317-99604 PIN, GroovePIN, Groove
-
43418-822865T05 BRACKET, Transom
(STARBOARD)BRACKET, Transom
(STARBOARD) -
5893704T01 LEVER ASSEMBLY, Tilt LockLEVER ASSEMBLY, Tilt Lock
-
624-99622 SPRINGSPRING
-
723-65830 NYLINERNYLINER
-
824-812708 SPRINGSPRING
-
9812709 KNOBKNOB
-
1017-99615 PIN, GroovePIN, Groove
-
1112-19619 WASHERWASHER
-
1218486A08 BRACKET, AnchorBRACKET, Anchor
-
1397-818298Q1 ANODE KITANODE KIT
-
1410-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
1512-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1610-4000354 SCREW, (M8 x 30)
(30 MM)SCREW, (M8 x 30)
(30 MM) -
1710-4000355 SCREW, (M8 x 35)
(35 MM)SCREW, (M8 x 35)
(35 MM) -
1813-400257 LOCKWASHER, (M8)LOCKWASHER, (M8)
-
1911-401388 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
208M0041938 TILT TUBETILT TUBE
-
2111-858869 NUT, (.875-14)NUT, (.875-14)
-
2219624A1 SEAL KIT
(NON-HANDLE)SEAL KIT
(NON-HANDLE) -
2325-29619 O-RING, (.583 x .103)
(NON-HANDLE)O-RING, (.583 x .103)
(NON-HANDLE) -
2423-78861 SPACER
(NON-HANDLE)SPACER
(NON-HANDLE) -
2554-22740 CLIPCLIP
-
268M0084613 C WASHERC WASHER
-
2710-878609 SCREW, (#10-16 x .600)SCREW, (#10-16 x .600)
-
2810-814259 SCREW, (.500-20 x 4.00)SCREW, (.500-20 x 4.00)
-
2912-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
3011-82671117 NUT, (.500-20)NUT, (.500-20)
-
3110-4009040 SCREW, (M10 x 40) Stainless SteelSCREW, (M10 x 40) Stainless Steel
-
3212-4002319 WASHERWASHER
-
3311-40140 NUT, (M10)NUT, (M10)
