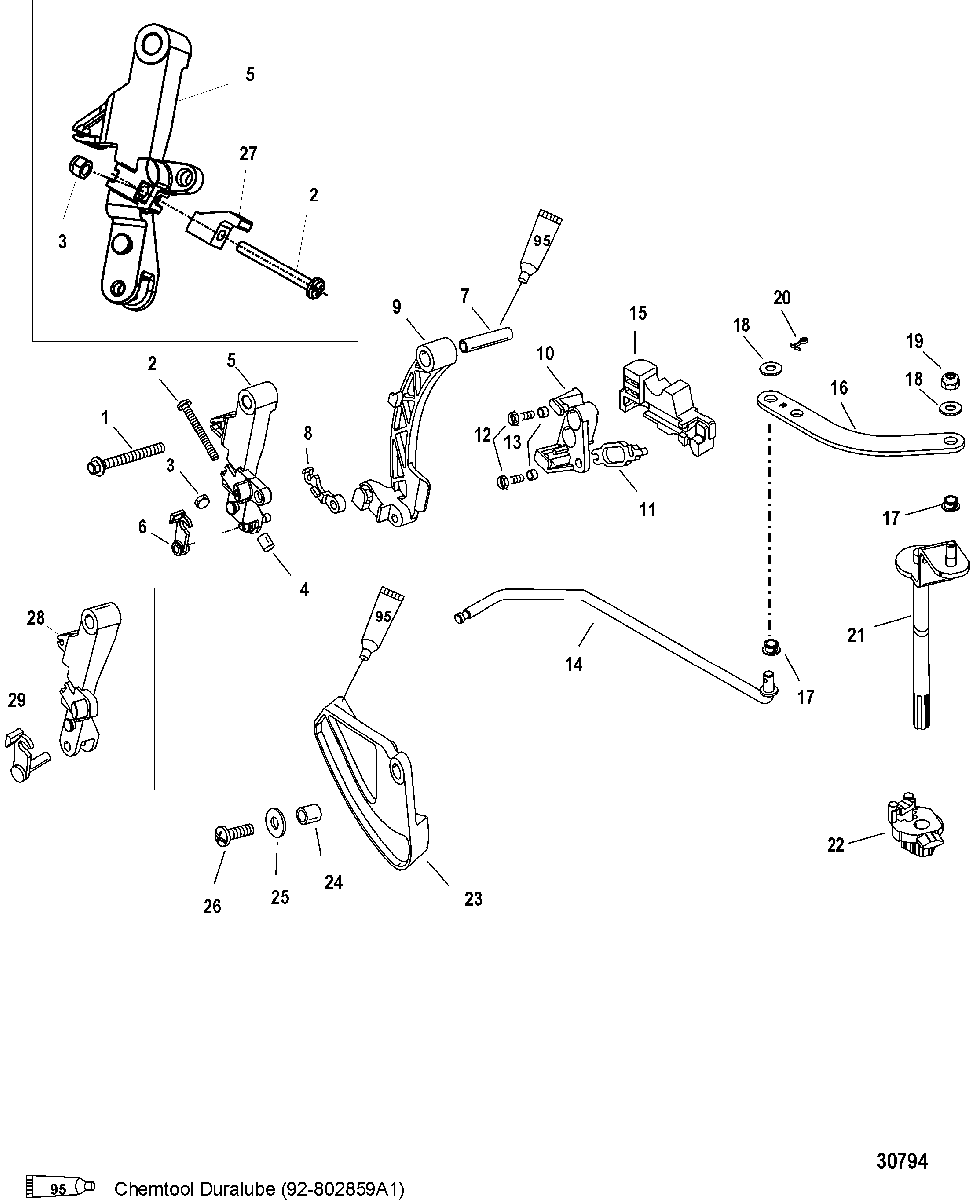

LINKAGE(REMOTE) для Mariner - 60 (4-STROKE)(4 CYL.) 0T178500 THRU 0T598999
-
№АртикулНазвание
-
110-40011158 SCREW, (M8 x 70) Stainless SteelSCREW, (M8 x 70) Stainless Steel
-
210-8147763 SCREW, (M6 x 60)SCREW, (M6 x 60)
-
311-401196 NUT, (M6)NUT, (M6)
-
442942 CAP
(50/60)CAP
(50/60) -
5822682A4 LEVER ASSEMBLY, ThrottleLEVER ASSEMBLY, Throttle
-
6883160 RETAINERRETAINER
-
723-825078 BUSHINGBUSHING
-
8822459 RETAINERRETAINER
-
98259571 LEVER, ShiftLEVER, Shift
-
10827706A4 BRACKETBRACKET
-
1198889 LATCHLATCH
-
1210-8248324 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1323-15885 SLEEVESLEEVE
-
14893777 SHIFT RODSHIFT ROD
-
15827706A4 GUIDE, Shift RodGUIDE, Shift Rod
-
16893769A01 SHIFT LINKSHIFT LINK
-
1723-48475 BUSHINGBUSHING
-
1812-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1911-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2018-210711 COTTER PINCOTTER PIN
-
21850166T2 LEVER ASSEMBLY, Shift ShaftLEVER ASSEMBLY, Shift Shaft
-
2223-850165 BUSHINGBUSHING
-
238535853 CAM, ThrottleCAM, Throttle
-
2423-309772 SPACERSPACER
-
2512-4002314 WASHERWASHER
-
2610-40056107 SCREW, (M5 x 16)SCREW, (M5 x 16)
-
27881283F SPACER, Throttle Stop
(40)SPACER, Throttle Stop
(40) -
28822682A4 LEVER, ThrottleLEVER, Throttle
-
29826587 RETAINERRETAINER
