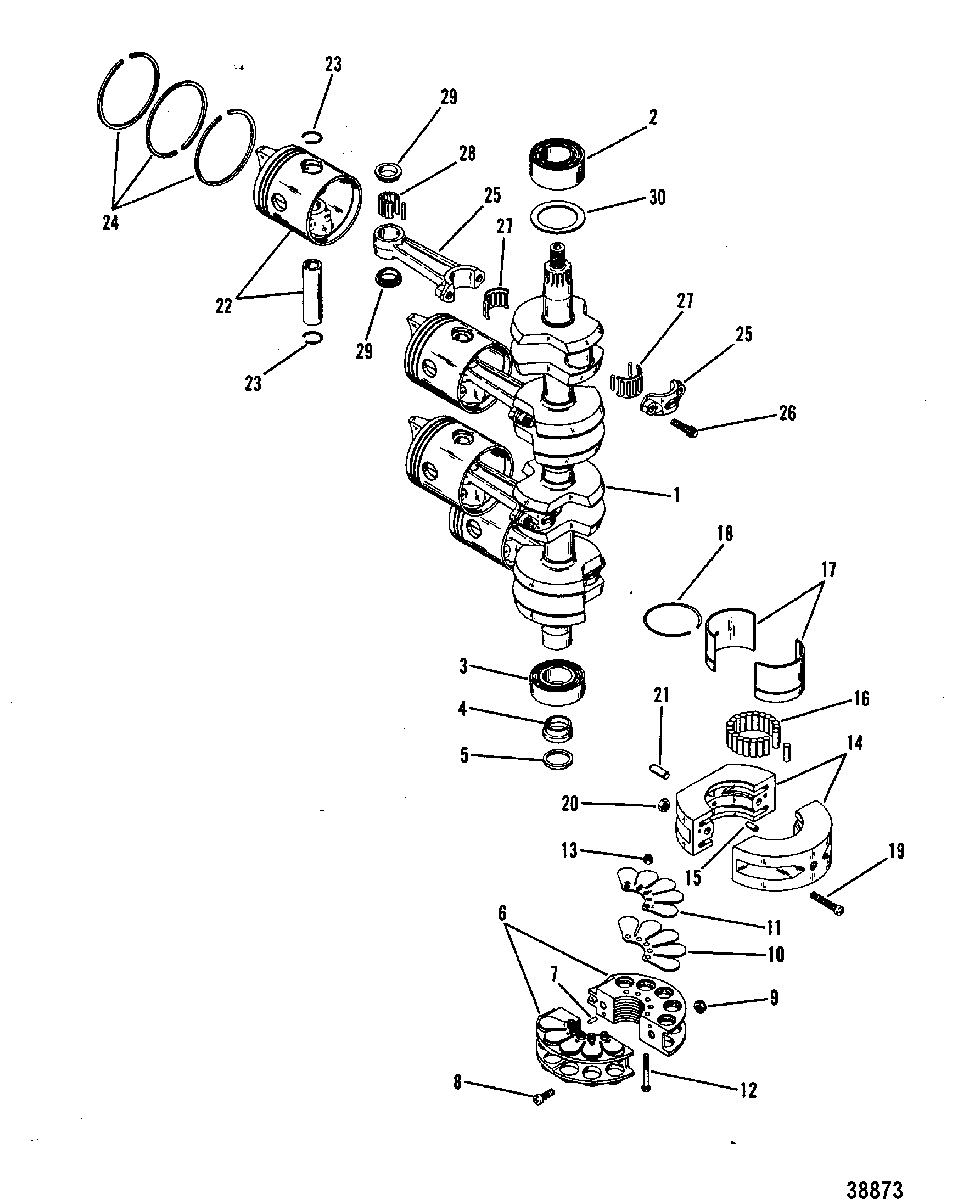

CRANKSHAFT, PISTON AND CONNECTING ROD для Mariner - 75 (4 CYL.) 6432901 & Up
-
№АртикулНазвание
-
1440-9074A2 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
230-62567T BEARING, Ball, UPPERBEARING, Ball, UPPER
-
330-63742T BEARING, Ball, LOWERBEARING, Ball, LOWER
-
454196A6 CARRIER ASSEMBLYCARRIER ASSEMBLY
-
565800 PACKING, CARRIERPACKING, CARRIER
-
6540-5266T5 BEARING ASSEMBLY, Main (VALVE TYPE)BEARING ASSEMBLY, Main (VALVE TYPE)
-
717-20032 PIN, Dowel, MAIN BEARINGPIN, Dowel, MAIN BEARING
-
810-45775 SCREW, (#12-28 x .560) , MAIN BEARINGSCREW, (#12-28 x .560) , MAIN BEARING
-
911-45774 NUT, MAIN BEARING CLAMPING SCREWNUT, MAIN BEARING CLAMPING SCREW
-
1034-56007A1 REED SET, MATCHED-MAIN BEARINGREED SET, MATCHED-MAIN BEARING
-
1134-56008 STOP, Reed, MAIN BEARING REED VALVESSTOP, Reed, MAIN BEARING REED VALVES
-
1210-62204 SCREW, REED STOP MOUNTINGSCREW, REED STOP MOUNTING
-
1311-53153 NUT, REED STOP MOUNTING SCREWNUT, REED STOP MOUNTING SCREW
-
14535-5397A4 BEARING ASSEMBLY, Center MainBEARING ASSEMBLY, Center Main
-
1517-20032 PIN, Dowel, CENTER MAIN BEARINGPIN, Dowel, CENTER MAIN BEARING
-
1629-714221 BEARING, NeedleBEARING, Needle
-
1726113T RACE, OUTER (PAIR)RACE, OUTER (PAIR)
-
1853-26933 RING, Snap, OUTER RACE CLAMPINGRING, Snap, OUTER RACE CLAMPING
-
1910-22968 SCREW, (.250-28 x 1.25), CENTER MAIN BEARING CLAMPINGSCREW, (.250-28 x 1.25), CENTER MAIN BEARING CLAMPING
-
2011-20184 NUT, (1/4-28X7/32), MAIN BEARING CLAMPING SCREWNUT, (1/4-28X7/32), MAIN BEARING CLAMPING SCREW
-
2117-47246 PIN, Dowel, STEPPEDPIN, Dowel, STEPPED
-
22774-9137A12 PISTON ASSEMBLY
(STANDARD)PISTON ASSEMBLY
(STANDARD) -
22774-9137A13 PISTON ASSEMBLY
(.015 O.S.)PISTON ASSEMBLY
(.015 O.S.) -
22774-9137A14 PISTON ASSEMBLY
(.030 O.S.)PISTON ASSEMBLY
(.030 O.S.) -
2353-857196 RING, LockRING, Lock
-
2439-78816A12 RING
(STANDARD)RING
(STANDARD) -
2439-78811A12 RING SET, Piston - .015 OversizeRING SET, Piston - .015 Oversize
-
2439-88392A12 RING SET, Piston - .030 OversizeRING SET, Piston - .030 Oversize
-
25624-8101A3 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
2610-91012 SCREW, (.250-28 Special), CONNECTING RODSCREW, (.250-28 Special), CONNECTING ROD
-
2731-62596A1 BEARING ASSEMBLY, CRANKPINBEARING ASSEMBLY, CRANKPIN
-
2829-47270 BEARING, PISTON PINBEARING, PISTON PIN
-
2912-8M0032839 WASHER, NEEDLE LOCATINGWASHER, NEEDLE LOCATING
-
3015-38095A1 SHIM, UPPER BALL BEARINGSHIM, UPPER BALL BEARING
-
-27-73645A87 GASKET SETGASKET SET
