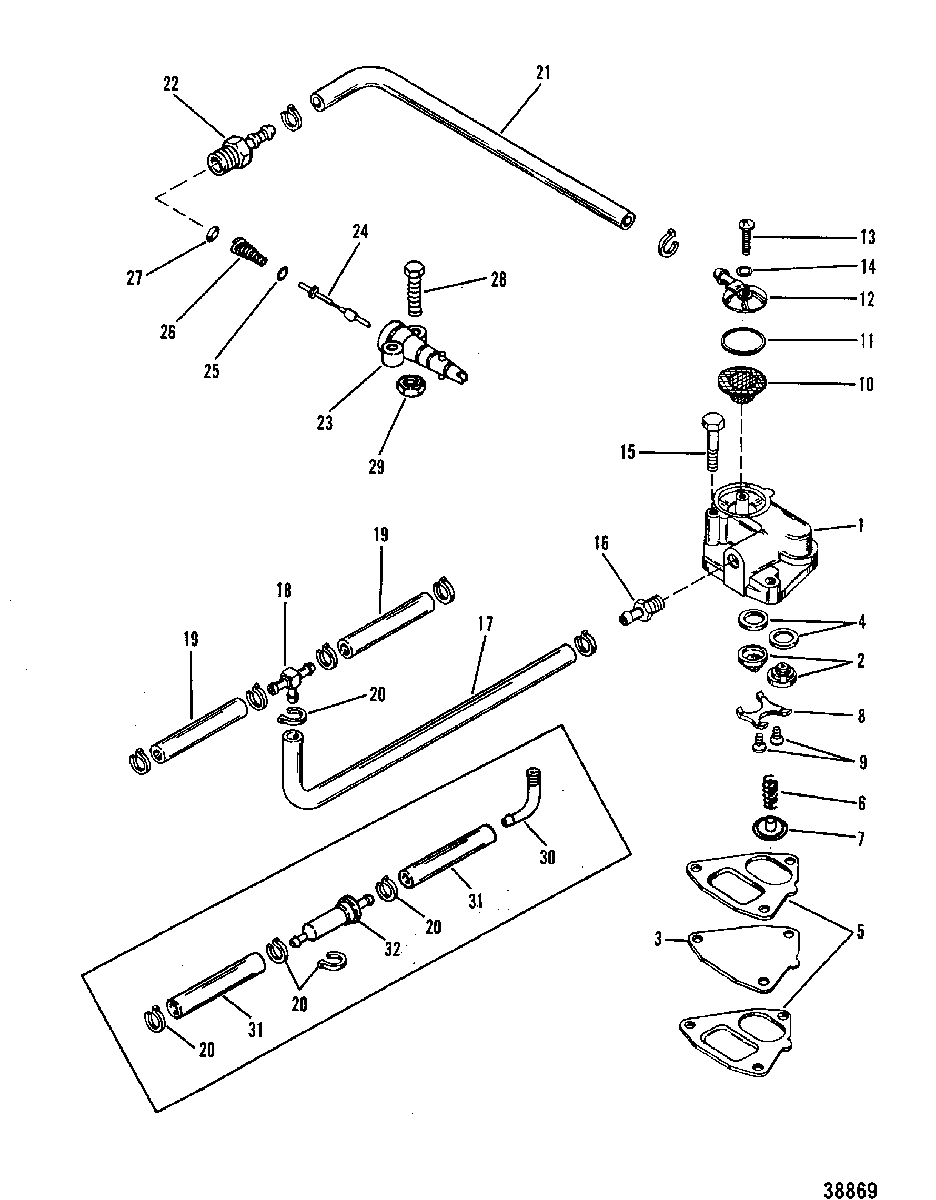

FUEL PUMP AND FUEL LINES(TRIANGLE FUEL PUMP) для Mariner - 75 (4 CYL.) 6432901 & Up
-
№АртикулНазвание
-
173434A5 PUMP ASSEMBLY, FuelPUMP ASSEMBLY, Fuel
-
221-8M0084276 CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
355278A5 DIAPHRAGM ASSEMBLYDIAPHRAGM ASSEMBLY
-
4NSS NOT SOLD SEPARATE, GASKET-CHECK VALVENOT SOLD SEPARATE, GASKET-CHECK VALVE
-
5NSS NOT SOLD SEPARATE, GASKET-FUEL PUMPNOT SOLD SEPARATE, GASKET-FUEL PUMP
-
624-86207 SPRINGSPRING
-
786252 CAPCAP
-
823004 RETAINER, CHECK VALVERETAINER, CHECK VALVE
-
910-43725 SCREW, (#6-32 x .380)SCREW, (#6-32 x .380)
-
1035-73532 FILTER, FuelFILTER, Fuel
-
1125-35480 O-RING, (1.237 x .103), COVER TO FUEL PUMPO-RING, (1.237 x .103), COVER TO FUEL PUMP
-
1235-14805A2 COVER, FUEL FILTERCOVER, FUEL FILTER
-
1310-37370 SCREW, (#10-32 x .580), COVER TO FUEL PUMPSCREW, (#10-32 x .580), COVER TO FUEL PUMP
-
1427-25848 GASKET, COVER SCREWGASKET, COVER SCREW
-
1510-70939 SCREW
(1-7/8")SCREW
(1-7/8") -
1510-69067 SCREW, (.250-20 x 1.375)SCREW, (.250-20 x 1.375)
-
1622-64705 FITTING, FUEL PUMP
W/O INLINE FILTERFITTING, FUEL PUMP
W/O INLINE FILTER -
1732-8M0108355 LINE, (57.00 Inches Bulk), TEE TO FUEL PUMP(11")
W/O INLINE FILTERLINE, (57.00 Inches Bulk), TEE TO FUEL PUMP(11")
W/O INLINE FILTER -
1822-73318 TEE, Plastic, FUEL LINETEE, Plastic, FUEL LINE
-
1932-8M0108355 LINE, (57.00 Inches Bulk) (CUT TO 3 INCHES)LINE, (57.00 Inches Bulk) (CUT TO 3 INCHES)
-
2054-816311T CLAMP, FUEL LINECLAMP, FUEL LINE
-
2132-8M0108355 LINE, (57.00 Inches Bulk), ADAPTOR TO FUEL PUMP (15")LINE, (57.00 Inches Bulk), ADAPTOR TO FUEL PUMP (15")
-
2222-63187 FITTING, Barb (.250-18), FUEL LINE TO ADAPTORFITTING, Barb (.250-18), FUEL LINE TO ADAPTOR
-
2330186 ADAPTOR, CHECK UNITADAPTOR, CHECK UNIT
-
2430185Q3 STEM, CHECK UNIT ADAPTORSTEM, CHECK UNIT ADAPTOR
-
2525-16524 O-RING, ADAPTOR STEMO-RING, ADAPTOR STEM
-
2624-30189 SPRING, ADAPTOR STEMSPRING, ADAPTOR STEM
-
2730188 WASHER, ADAPTORWASHER, ADAPTOR
-
2810-36154 SCREW, (.250-28 x 1.380)SCREW, (.250-28 x 1.380)
-
2911-36069 NUT, ADAPTOR SCREWNUT, ADAPTOR SCREW
-
3022-19688 FITTING (90 DEG. )
WITH INLINE FILTERFITTING (90 DEG. )
WITH INLINE FILTER -
3132-8M0108355 LINE, (57.00 Inches Bulk)
WITH INLINE FILTERLINE, (57.00 Inches Bulk)
WITH INLINE FILTER -
3235-816296Q03 FILTER, Fuel
WITH INLINE FILTERFILTER, Fuel
WITH INLINE FILTER -
-27-73645A87 GASKET SETGASKET SET
