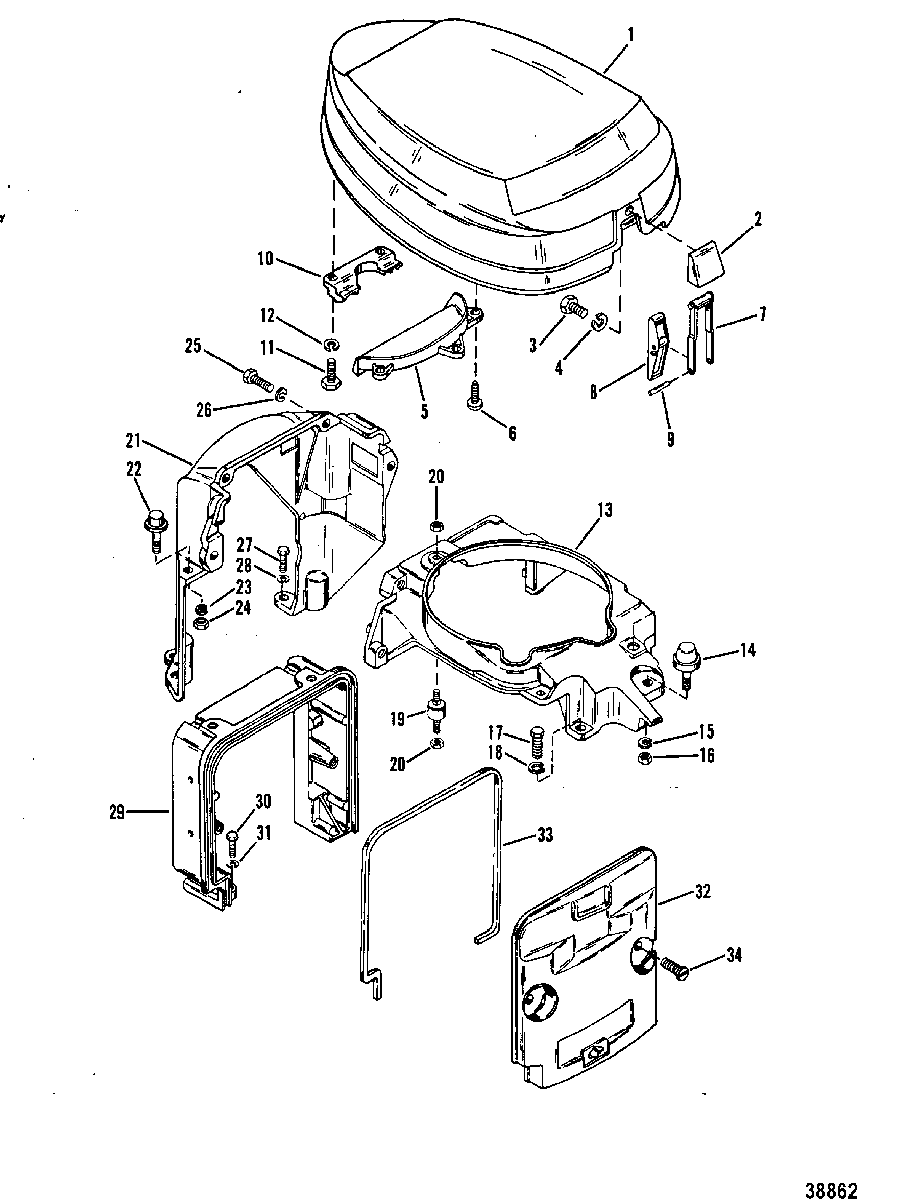

TOP COWL AND SUPPORT BRACKETS для Mariner - 75 (4 CYL.) 6432901 & Up
-
№АртикулНазвание
-
12114-7934T TOP COWL ASSEMBLY
MERCURYTOP COWL ASSEMBLY
MERCURY -
12162-6392T6 TOP COWL ASSEMBLY, MarinerTOP COWL ASSEMBLY, Mariner
-
293122A1 RETAINER ASSEMBLY
MERCURYRETAINER ASSEMBLY
MERCURY -
276440 RETAINER ASSEMBLY
MARINERRETAINER ASSEMBLY
MARINER -
310-53167T SCREW, (.312-18 x .880)
MERCURYSCREW, (.312-18 x .880)
MERCURY -
310-25299 SCREW, (.312-18 x .75)
MARINERSCREW, (.312-18 x .75)
MARINER -
413-39107 LOCKWASHER, (.312-24)LOCKWASHER, (.312-24)
-
576370 SHIELD
MERCURYSHIELD
MERCURY -
576433 SHIELD
MARINERSHIELD
MARINER -
610-48409 SCREW, (#10-16 x .625) Stainless SteelSCREW, (#10-16 x .625) Stainless Steel
-
752739 HINGE, COWL LATCH-TOP COWLHINGE, COWL LATCH-TOP COWL
-
894918F1 LEVER, COWL LATCH HINGELEVER, COWL LATCH HINGE
-
917-58998 PIN, COWL LATCH LEVER TO HINGEPIN, COWL LATCH LEVER TO HINGE
-
1055455 HOOK, TOP COWL LTECH-REARHOOK, TOP COWL LTECH-REAR
-
1110-22956 SCREW, (.250-28 x .880), REAR HOOK TO TOP COWLSCREW, (.250-28 x .880), REAR HOOK TO TOP COWL
-
1213-26992 LOCKWASHER, (.250) Stainless Steel, REAR HOOK SCREWLOCKWASHER, (.250) Stainless Steel, REAR HOOK SCREW
-
1373401T FRAME, SUPPORT-TOP COWLFRAME, SUPPORT-TOP COWL
-
1437640 MOUNT, RUBBER-SUPPORT FRAMEMOUNT, RUBBER-SUPPORT FRAME
-
1513-26993 LOCKWASHER, (.312), RUBBER MOUNTLOCKWASHER, (.312), RUBBER MOUNT
-
1611-28770 NUT, (.312-24) Stainless Steel, RUBBER MOUNTNUT, (.312-24) Stainless Steel, RUBBER MOUNT
-
1710-37562 SCREW, (.312-18 x 1.00) Stainless SteelSCREW, (.312-18 x 1.00) Stainless Steel
-
1813-26993 LOCKWASHER, (.312), SUPPORT FRAME SCREWLOCKWASHER, (.312), SUPPORT FRAME SCREW
-
1990435 MOUNT, RUBBER-TOP COWL FRAMEMOUNT, RUBBER-TOP COWL FRAME
-
2011-20184 NUT, (1/4-28X7/32), RUBBR MOUNT (UPPER)NUT, (1/4-28X7/32), RUBBR MOUNT (UPPER)
-
2152468 BRACKET, TOP COWL SUPPORT-REARBRACKET, TOP COWL SUPPORT-REAR
-
2231014 MOUNT, RUBBER-REAR SUPPORT BRACKETMOUNT, RUBBER-REAR SUPPORT BRACKET
-
2313-26992 LOCKWASHER, (.250) Stainless Steel, RUBBER MOUNTLOCKWASHER, (.250) Stainless Steel, RUBBER MOUNT
-
2411-29598 NUT, (.250-28) Stainless Steel, RUBBER MOUNTNUT, (.250-28) Stainless Steel, RUBBER MOUNT
-
2510-37562 SCREW, (.312-18 x 1.00) Stainless Steel, REAR BRACKET TO FRAMESCREW, (.312-18 x 1.00) Stainless Steel, REAR BRACKET TO FRAME
-
2613-26993 LOCKWASHER, (.312), REAR BRACKET SCREWLOCKWASHER, (.312), REAR BRACKET SCREW
-
2710-37562 SCREW, (.312-18 x 1.00) Stainless SteelSCREW, (.312-18 x 1.00) Stainless Steel
-
2813-26993 LOCKWASHER, (.312), REAR BRACKET SCREWLOCKWASHER, (.312), REAR BRACKET SCREW
-
2999649T FRAME, FRONT SUPPORTFRAME, FRONT SUPPORT
-
3010-37562 SCREW, (.312-18 x 1.00) Stainless Steel, SILENCER COVERSCREW, (.312-18 x 1.00) Stainless Steel, SILENCER COVER
-
3113-26993 LOCKWASHER, (.312), FRAME SCREWLOCKWASHER, (.312), FRAME SCREW
-
3289590 COVER, SILENCERCOVER, SILENCER
-
3327-76168A2 GASKET, SILENCER COVERGASKET, SILENCER COVER
-
3410-28638 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
