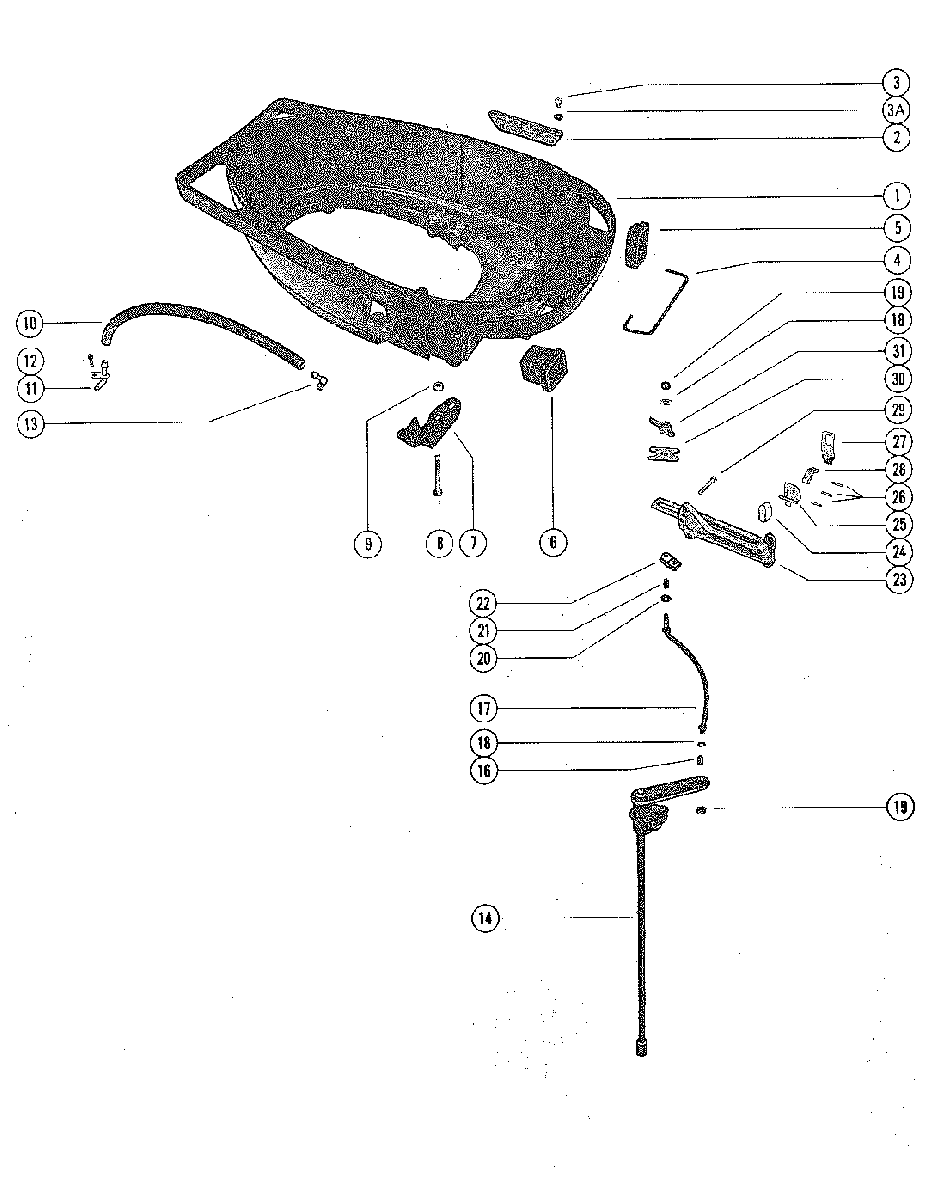

BOTTOM COWL AND SHIFT LINKAGE для Mariner - 80 4842729 THRU 5763340
-
№АртикулНазвание
-
12158-7718 COWL,BOTTOMCOWL,BOTTOM
-
274303 COVER, AIR INLETCOVER, AIR INLET
-
310-62568 SCREW, COVER TO BOTTOM COWL (3/8")SCREW, COVER TO BOTTOM COWL (3/8")
-
3A12-30164 WASHER, COVER SCREWWASHER, COVER SCREW
-
427-73646 GASKET, BOTTOM COWLGASKET, BOTTOM COWL
-
539616 BOOT, CONTROL CABLES - BOTTOM COWLBOOT, CONTROL CABLES - BOTTOM COWL
-
637637 BOOT, FUEL CONNECTOR - BOTTOM COWLBOOT, FUEL CONNECTOR - BOTTOM COWL
-
737445 SUPPORT, WIRING HARNESS - BOTTOM COWLSUPPORT, WIRING HARNESS - BOTTOM COWL
-
810-69029 SCREW, SUPPORT TO COWL (1 3/4")SCREW, SUPPORT TO COWL (1 3/4")
-
911-36069 NUT, WIRING HARNESS SUPPORT SCREWNUT, WIRING HARNESS SUPPORT SCREW
-
1032-8M0108355 HOSE, TELL TALE - EXH. COVER TO BOTTOM COWL (14 3/4")HOSE, TELL TALE - EXH. COVER TO BOTTOM COWL (14 3/4")
-
1152889 NOZZLE, TELL TALE HOSE TO BOTTOM COWLNOZZLE, TELL TALE HOSE TO BOTTOM COWL
-
1210-48408 SCREW, TELL TALE NOZZLE TO BOTTOM COWL (1/2")SCREW, TELL TALE NOZZLE TO BOTTOM COWL (1/2")
-
1322-782792 ELBOW, TELL TALE HOSE TO CYLINDER BLOCKELBOW, TELL TALE HOSE TO CYLINDER BLOCK
-
1460304A55 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
-
1460304A54 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
-
1623-26856 BUSHING, SHIFT SHAFTBUSHING, SHIFT SHAFT
-
1773402 SHIFT LINKSHIFT LINK
-
1812-35462 WASHER, LINK ROD (SHIFT LEVER END)WASHER, LINK ROD (SHIFT LEVER END)
-
1911-36069 NUT, LINK RODNUT, LINK ROD
-
2013-29720 WASHER, WAVE-LINK RODWASHER, WAVE-LINK ROD
-
2124-20099 SPRING, LINK ROD TO GUIDE BLOCKSPRING, LINK ROD TO GUIDE BLOCK
-
2237896 GUIDE BLOCK,LINK RODGUIDE BLOCK,LINK ROD
-
2352732A6 BRACKET,ANCHOR-CONTROL CABLESBRACKET,ANCHOR-CONTROL CABLES
-
2439519 CAP, BARREL RETAINER-ANCHORCAP, BARREL RETAINER-ANCHOR
-
2587609A1 LEVER, NYLON-SHIFT CABLE LOCKINGLEVER, NYLON-SHIFT CABLE LOCKING
-
2617-47175 PIN, LOCKING LEVER AND COVER FASTENINGPIN, LOCKING LEVER AND COVER FASTENING
-
2739667 COVER, NYLON-SHIFT CABLECOVER, NYLON-SHIFT CABLE
-
2887609A1 LINK, LOCKING LEVER TO COVERLINK, LOCKING LEVER TO COVER
-
2910-35386 SCREW, ANCHOR BRACKET TO CYLINDER BLOCK(1")SCREW, ANCHOR BRACKET TO CYLINDER BLOCK(1")
-
3052100 WEAR PLATE, LINK RODWEAR PLATE, LINK ROD
-
318M0036768 LATCH, CONTROL CABLE FASTENING-ANCHOR BRACKETLATCH, CONTROL CABLE FASTENING-ANCHOR BRACKET
