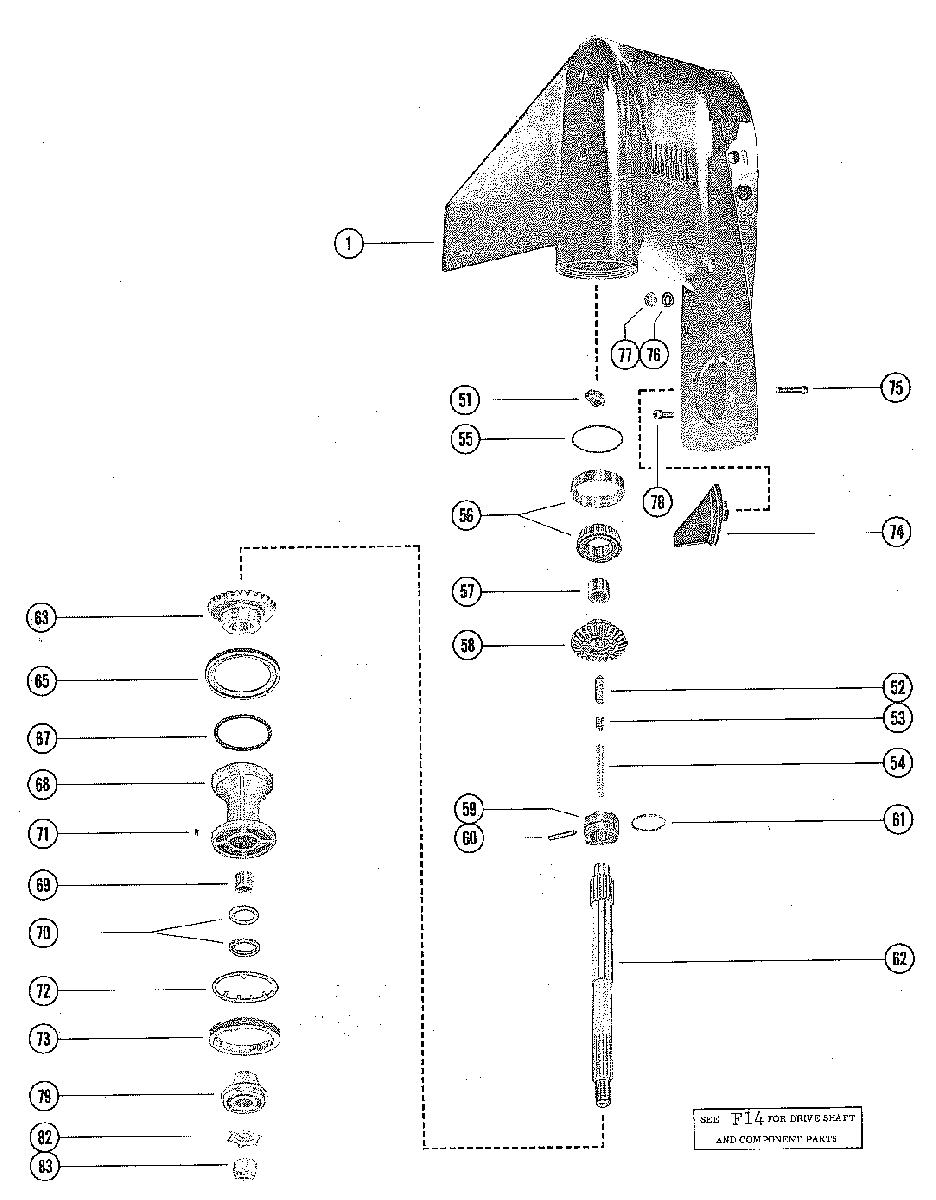

GEAR HOUSING ASSEMBLY,COMPLETE (PAGE 2) для Mariner - 80 4842729 THRU 5763340
-
№АртикулНазвание
-
-1655-7333A27 GEAR HOUSING ASS'Y, COMP.(SHORT SHAFT)
SEE NOTE BELOW UNITED STATES 5144546 AND BELOWGEAR HOUSING ASS'Y, COMP.(SHORT SHAFT)
SEE NOTE BELOW UNITED STATES 5144546 AND BELOW -
-1655-7333A25 GEAR HOUSING ASS'Y, COMP.(LONG SHAFT)
SEE NOTE BELOW UNITED STATES 5144546 AND BELOWGEAR HOUSING ASS'Y, COMP.(LONG SHAFT)
SEE NOTE BELOW UNITED STATES 5144546 AND BELOW -
-1655-7333A27 GEAR HOUSING ASS'Y, COMP.(SHORT SHAFT)
SEE NOTE BELOW UNITED STATES 5144547 AND UPGEAR HOUSING ASS'Y, COMP.(SHORT SHAFT)
SEE NOTE BELOW UNITED STATES 5144547 AND UP -
-1655-7333A25 GEAR HOUSING ASS'Y, COMP.(LONG SHAFT)
SEE NOTE BELOW UNITED STATES 5144547 AND UPGEAR HOUSING ASS'Y, COMP.(LONG SHAFT)
SEE NOTE BELOW UNITED STATES 5144547 AND UP -
11655-7333T23 GEAR HOUSING ASS'Y
-SEE PAGE34 FOR BREAKDOWN UNITED STATES 5144546 AND BELOWGEAR HOUSING ASS'Y
-SEE PAGE34 FOR BREAKDOWN UNITED STATES 5144546 AND BELOW -
11655-7333T23 GEAR HOUSING ASS'Y
-SEE PAGE34 FOR BREAKDOWN UNITED STATES 5144547 AND UPGEAR HOUSING ASS'Y
-SEE PAGE34 FOR BREAKDOWN UNITED STATES 5144547 AND UP -
51760394 CAM, SHIFTCAM, SHIFT
-
5230625 FOLLOWER, CAMFOLLOWER, CAM
-
5330624 SLIDE, CROSS PINSLIDE, CROSS PIN
-
5424-30622 SPRING, COMPRESSION-CAM FOLLOWERSPRING, COMPRESSION-CAM FOLLOWER
-
5515-30923A1 SHIM, BEARING OUTER RACE TO GEAR HSG. (.002-3-5-10)SHIM, BEARING OUTER RACE TO GEAR HSG. (.002-3-5-10)
-
5631-30894A1 TAPERED ROLLER BEARING ASSEMBLYTAPERED ROLLER BEARING ASSEMBLY
-
5731-30895T BEARING, ROLLER-FORWARD GEARBEARING, ROLLER-FORWARD GEAR
-
5843-75314T2 FORWARD GEAR ASSEMBLYFORWARD GEAR ASSEMBLY
-
5952-822539T RATCHET, SLIDING CLUTCHRATCHET, SLIDING CLUTCH
-
6017-8M0100263 PIN, CROSS-RATCHET TO PROPELLER SHAFTPIN, CROSS-RATCHET TO PROPELLER SHAFT
-
6124-30893 SPRING, RETAINING- CROSS PINSPRING, RETAINING- CROSS PIN
-
6244-93003 SHAFT, PROPELLERSHAFT, PROPELLER
-
6343-77562T REVERSE GEAR ASSEMBLYREVERSE GEAR ASSEMBLY
-
6512-76358 WASHER,THRUST-BEARING CARRIER TO GEAR HOUSINGWASHER,THRUST-BEARING CARRIER TO GEAR HOUSING
-
6725-29976 "O" RING, BEARING CARRIER"O" RING, BEARING CARRIER
-
6841529T2 BEARING CARRIER ASSEMBLYBEARING CARRIER ASSEMBLY
-
6931-30956T BEARING, ROLLER-BEARING CARRIERBEARING, ROLLER-BEARING CARRIER
-
7026-76868 OIL SEAL, BEARING CARRIEROIL SEAL, BEARING CARRIER
-
7128-30281 KEY, LOCATING-BEARING CARRIERKEY, LOCATING-BEARING CARRIER
-
7214-52700 TAB WASHER, GEAR HOUSING COVERTAB WASHER, GEAR HOUSING COVER
-
7352699 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
7497-31640Q4 TRIM TAB, GEAR HOUSINGTRIM TAB, GEAR HOUSING
-
7510-66024 SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")
-
7612-45176 WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSWASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
-
7711-34933 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSNUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
-
7810-65210 SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING(1")SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING(1")
-
7913191Q01 THRUST HUBTHRUST HUB
-
8214-816629Q TAB WASHER, PROPELLER NUTTAB WASHER, PROPELLER NUT
-
8311-52707Q1 NUT, PROPELLERNUT, PROPELLER
