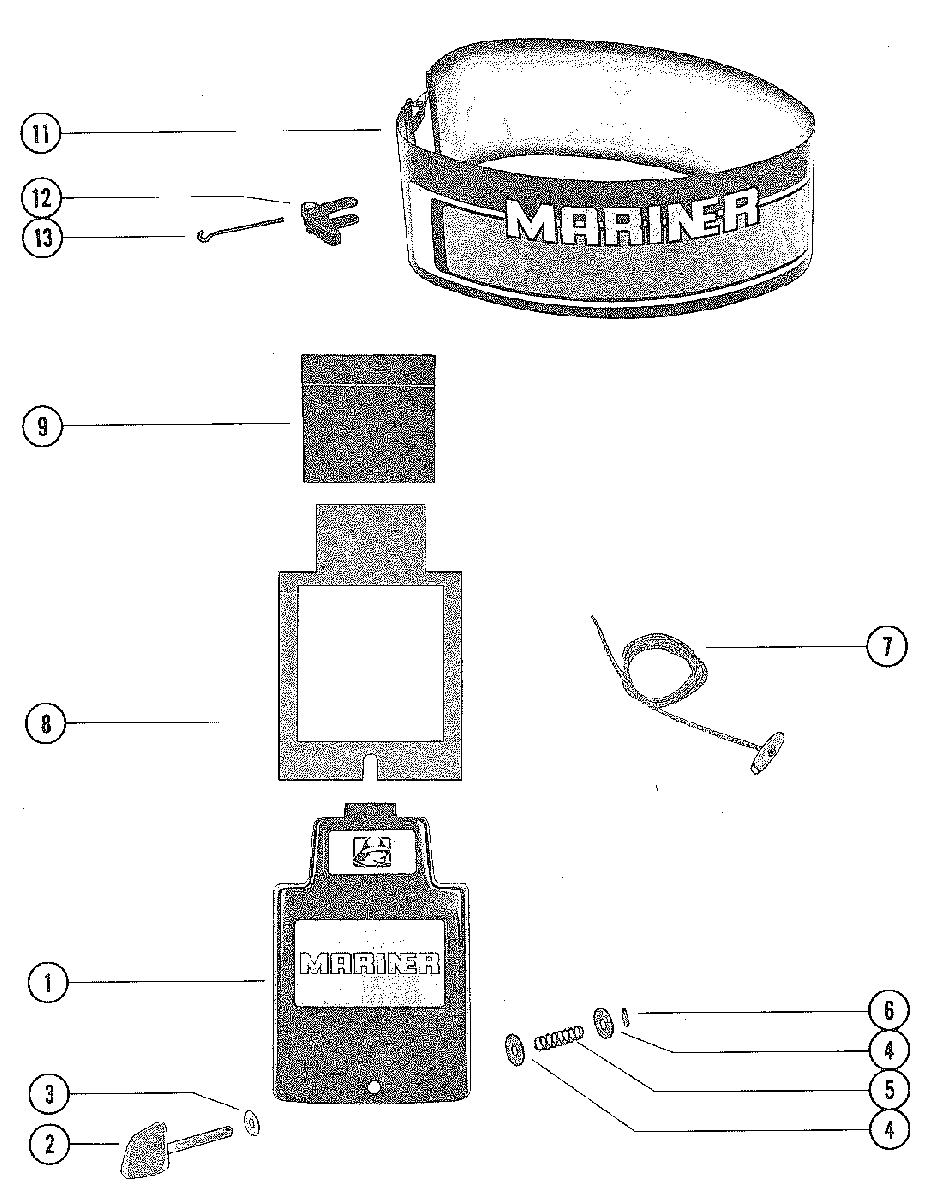

COWLING AND FRONT COVER для Mariner - 80 4842729 THRU 5763340
-
№АртикулНазвание
-
12163-6393A6 COWL FRONT COVER ASSEMBLY (WITHOUT DECALS)COWL FRONT COVER ASSEMBLY (WITHOUT DECALS)
-
273786 KNOB, COWL FRONT COVER FASTENINGKNOB, COWL FRONT COVER FASTENING
-
312-30771 WASHER, COVER FASTENING KNOB (RUBBER)WASHER, COVER FASTENING KNOB (RUBBER)
-
412-75246 WASHER, COVER FASTENING KNOB (STEEL)WASHER, COVER FASTENING KNOB (STEEL)
-
524-30772 SPRING, TENSION - COVER FASTENING KNOBSPRING, TENSION - COVER FASTENING KNOB
-
617-29077 ROLL PIN, TENSION SPRING TO KNOBROLL PIN, TENSION SPRING TO KNOB
-
747341A11 ROPE, STARTER (FOR MANUAL STARTING ONLY)ROPE, STARTER (FOR MANUAL STARTING ONLY)
-
876434 SEAL, SOUND ABSORBINGSEAL, SOUND ABSORBING
-
938674 BLANKET, SOUND ABSORBINGBLANKET, SOUND ABSORBING
-
112164-6394A7 WRAP AROUND COWL ASSEMBY (WITHOUT DECALS)WRAP AROUND COWL ASSEMBY (WITHOUT DECALS)
-
1246785A1 COWL LATCH ASSEMBLYCOWL LATCH ASSEMBLY
-
1330413 HOOK, COWL LATCH FASTENINGHOOK, COWL LATCH FASTENING
-
--92-86166Q1 GLUE, ADHESIVE - SOUND BLANKET FASTENINGGLUE, ADHESIVE - SOUND BLANKET FASTENING
