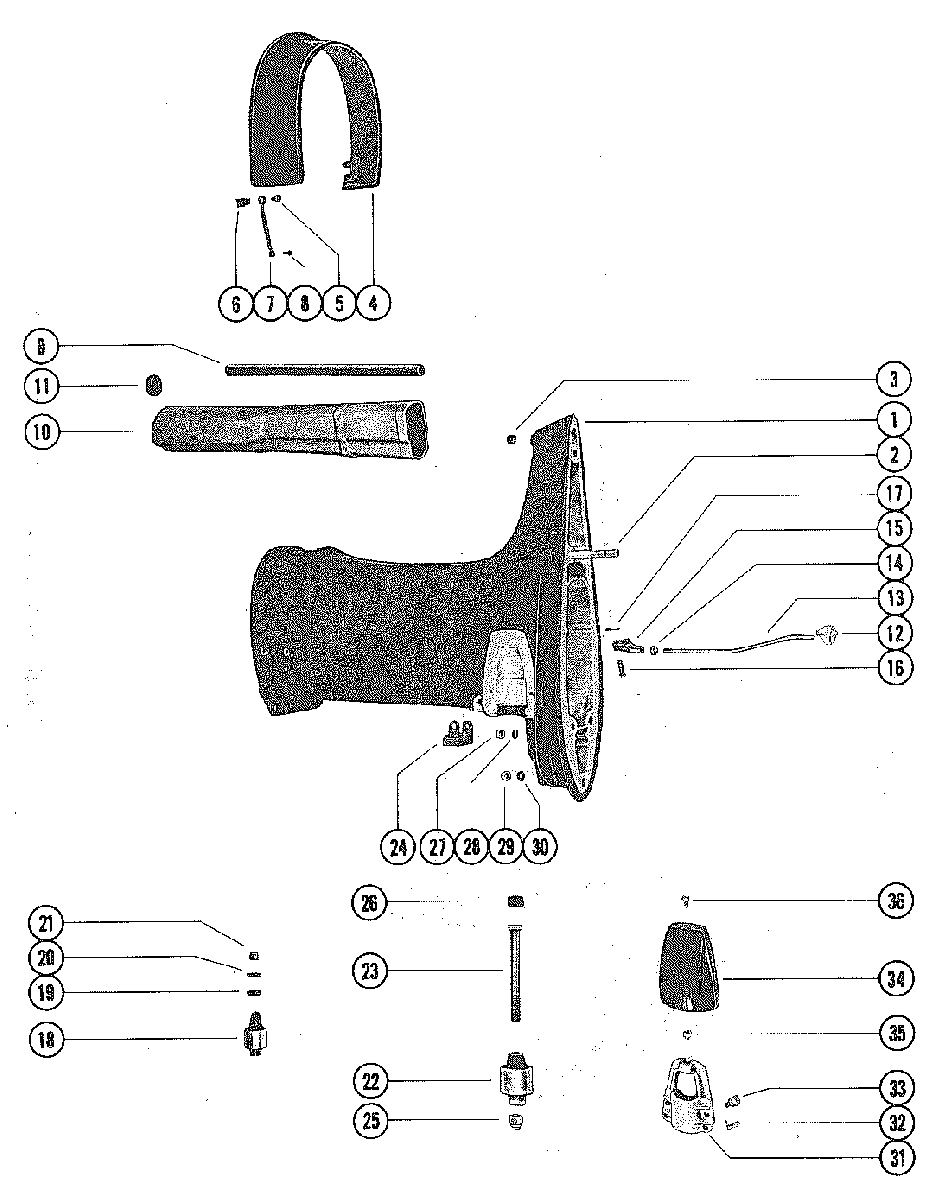

DRIVE SHAFT HOUSING ASSEMBLY для Mariner - 80 4842729 THRU 5763340
-
№АртикулНазвание
-
11575-5240A4 DRIVE SHAFT HOUSING ASSEMBLY(SHORT SHAFT)DRIVE SHAFT HOUSING ASSEMBLY(SHORT SHAFT)
-
11573-5239A4 DRIVE SHAFT HOUSING ASSEMBLY(LONG SHAFT)DRIVE SHAFT HOUSING ASSEMBLY(LONG SHAFT)
-
216-56295 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING(2 11/16")STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING(2 11/16")
-
319-64649 PLUG,PLASTIC-TRIM TAB SCREW HOLEPLUG,PLASTIC-TRIM TAB SCREW HOLE
-
437417 COVER, TRIM-DRIVE SHAFT HOUSINGCOVER, TRIM-DRIVE SHAFT HOUSING
-
510-57807 SCREW, TRIM COVER TO BOTTOM COWL(3/4")SCREW, TRIM COVER TO BOTTOM COWL(3/4")
-
625-8M0079730 GROMMET, TRIM COVER SCREWGROMMET, TRIM COVER SCREW
-
746933A2 GROUND STRAP ASSEMBLY,TRIM COVER SCREWGROUND STRAP ASSEMBLY,TRIM COVER SCREW
-
810-62568 SCREW, GROUND STRAP ATTACHINGSCREW, GROUND STRAP ATTACHING
-
932-62864 TUBE, WATER INLET(SHORT SHAFT)TUBE, WATER INLET(SHORT SHAFT)
-
932-60897 TUBE, WATER NLET(LONG SHAFT)TUBE, WATER NLET(LONG SHAFT)
-
1065370 TUBE, EXHAUST(SHORT SHAFT)TUBE, EXHAUST(SHORT SHAFT)
-
1078184T TUBE, EXHAUST(LONG SHAFT)TUBE, EXHAUST(LONG SHAFT)
-
1165638 BOOT, EXHAUST TUBEBOOT, EXHAUST TUBE
-
1252887 GUIDE, PUSH ROD-REVERSE LOCKINGGUIDE, PUSH ROD-REVERSE LOCKING
-
1347591 ROD, PUSH-REVERSE LOCK(SHORT SHAFT)ROD, PUSH-REVERSE LOCK(SHORT SHAFT)
-
1347558 ROD, PUSH-REVERSE LOCK(LONG SHAFT)ROD, PUSH-REVERSE LOCK(LONG SHAFT)
-
1411-69254 NUT, JAM-PUSH RODNUT, JAM-PUSH ROD
-
1547559 YOKE, PUSH RODYOKE, PUSH ROD
-
1624-78203A2 PIN, PUSH ROD TO REVERSE LOCKPIN, PUSH ROD TO REVERSE LOCK
-
1718-25191 COTTER PIN, PUSH ROD PINCOTTER PIN, PUSH ROD PIN
-
1875297 MOUNT, RUBBER-UPPER(SHORT SHAFT)MOUNT, RUBBER-UPPER(SHORT SHAFT)
-
1875296 MOUNT, RUBBER-UPPER(LONG SHAFT)MOUNT, RUBBER-UPPER(LONG SHAFT)
-
1912-47840 WASHER, RUBBER-UPPER MOUNT BOLTWASHER, RUBBER-UPPER MOUNT BOLT
-
2012-31263 WASHER,UPPER MOUNT BOLTWASHER,UPPER MOUNT BOLT
-
2111-34933 NUT, UPPER MOUNT BOLTNUT, UPPER MOUNT BOLT
-
2275300 MOUNT, RUBBER-LOWER(SHORT SHAFT)MOUNT, RUBBER-LOWER(SHORT SHAFT)
-
2275298 MOUNT, RUBBER-LOWER(LONG SHAFT)MOUNT, RUBBER-LOWER(LONG SHAFT)
-
2310-75284 SCREW, UPPER MOUNT(5 1/2")SCREW, UPPER MOUNT(5 1/2")
-
2466336 MOUNT, RUBBER-LOWER(SHORT SHAFT)MOUNT, RUBBER-LOWER(SHORT SHAFT)
-
2511-25096 NUT, MOUNT SCREWNUT, MOUNT SCREW
-
2625067 BUMPER, RUBBER-MOUNTING SCREWBUMPER, RUBBER-MOUNTING SCREW
-
2711-34933 NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDSNUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS
-
2812-45176 WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSWASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
-
2911-29489 NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDSNUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS
-
3012-45176 WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSWASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
-
3135608 CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSINGCLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING
-
3224-35522 SPRING, TENSION-LOWER MOUNT CLAMPSPRING, TENSION-LOWER MOUNT CLAMP
-
3310-29256 SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING (7/8")SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING (7/8")
-
3435474T COVER, LOWER MOUNT CLAMPCOVER, LOWER MOUNT CLAMP
-
3511-35521 NUT, LOWER MOUNT CLAMP COVERNUT, LOWER MOUNT CLAMP COVER
-
3610-29722 SCREW, COVER TO LOWER CLAMP MOUNT (5/8")SCREW, COVER TO LOWER CLAMP MOUNT (5/8")
