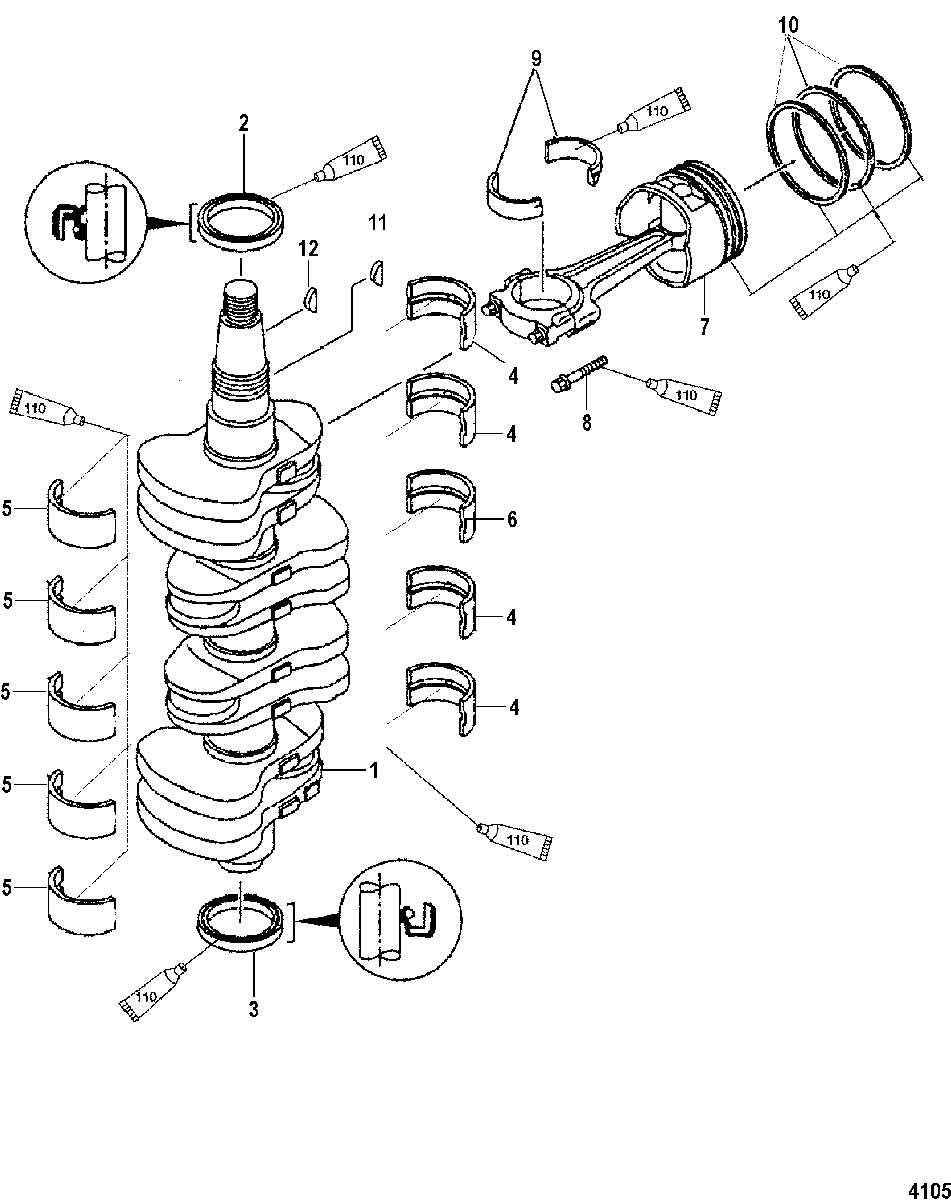

Crankshaft, Pistons and Connecting Rods для Mariner - 90 (4-STROKE) 0G960500 THRU 0T800999
-
№АртикулНазвание
-
12406-804098T CRANKSHAFTCRANKSHAFT
-
226-8040992 SEAL, OilSEAL, Oil
-
326-8041002 SEAL, OilSEAL, Oil
-
431-804101T BEARING
(Green)BEARING
(Green) -
431-804101T10 BEARING
(Blue)BEARING
(Blue) -
431-804101T20 BEARING
(Red)BEARING
(Red) -
531-804102T BEARING
(Yellow)BEARING
(Yellow) -
531-804102T10 BEARING
(Green)BEARING
(Green) -
531-804102T20 BEARING
(Blue)BEARING
(Blue) -
531-804102T30 BEARING
(Red)BEARING
(Red) -
631-804103T BEARING
(Green)BEARING
(Green) -
631-804103T10 BEARING
(Blue)BEARING
(Blue) -
631-804103T20 BEARING
(Red)BEARING
(Red) -
72715-880895T02 PISTON ASSEMBLY
(Standard)PISTON ASSEMBLY
(Standard) -
72715-880895T03 PISTON ASSEMBLY
(.25MM Oversize)PISTON ASSEMBLY
(.25MM Oversize) -
810-804105 BOLTBOLT
-
931-804106T01 BEARING
(Yellow)BEARING
(Yellow) -
931-804106T11 BEARING
(Green)BEARING
(Green) -
931-804106T21 BEARING
(Blue)BEARING
(Blue) -
931-804106T31 BEARING
(Red)BEARING
(Red) -
1039-880897T02 RING SET, Piston
(Standard)RING SET, Piston
(Standard) -
1039-880898T02 RING SET, Piston
(.25MM Oversize)RING SET, Piston
(.25MM Oversize) -
1128-804153 KEYKEY
-
1228-8261001 KEYKEY
-
-804070T05 POWERHEAD ASSEMBLY
SN# 0T178500 & UpPOWERHEAD ASSEMBLY
SN# 0T178500 & Up -
-883548T02 POWERHEAD ASSEMBLY
SN# 0T178499 & BelowPOWERHEAD ASSEMBLY
SN# 0T178499 & Below -
-27-804345A02 GASKET SET, PowerheadGASKET SET, Powerhead
