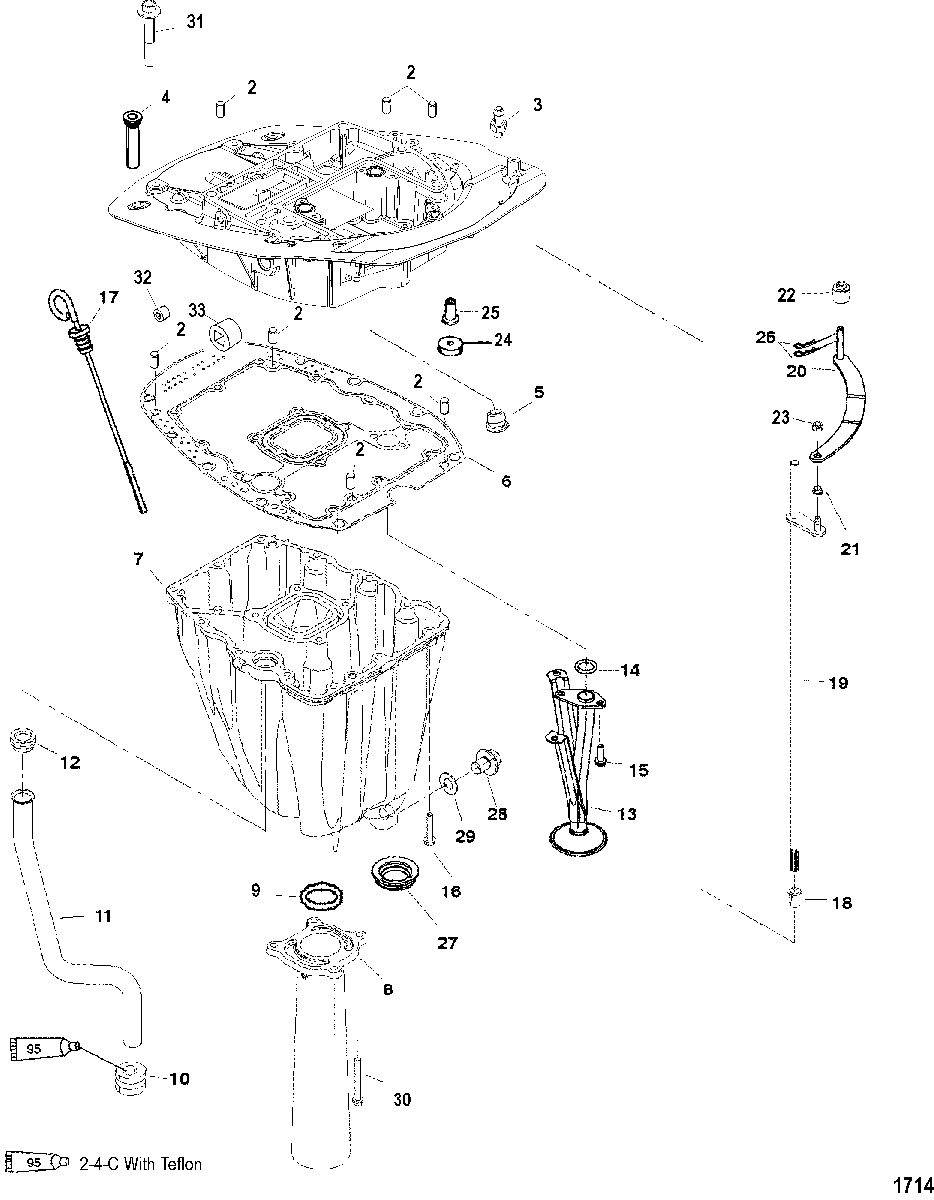

Exhaust Plate для Mariner - 90 (4-STROKE) 0G960500 THRU 0T800999
-
№АртикулНазвание
-
1858582T ADAPTOR PLATE ASSEMBLYADAPTOR PLATE ASSEMBLY
-
217-23784 PIN, DowelPIN, Dowel
-
322-291112 FITTINGFITTING
-
421-817519A2 CHECK VALVE ASSEMBLY, DrainCHECK VALVE ASSEMBLY, Drain
-
525-12602002 GROMMETGROMMET
-
627-8585831 GASKETGASKET
-
7858572T01 SUMP, OilSUMP, Oil
-
8858584A1 TUBE ASSEMBLY, ExhaustTUBE ASSEMBLY, Exhaust
-
925-881295 O-RINGO-RING
-
1025-89417004 GROMMETGROMMET
-
1132-8M0026130 TUBE, Water
(Long)TUBE, Water
(Long) -
1132-8M0026129 TUBE, Water
(X-Long)TUBE, Water
(X-Long) -
12814080001 SEAL (Upper)SEAL (Upper)
-
13858571T TUBE, Oil Pick UpTUBE, Oil Pick Up
-
1425-859082 O-RINGO-RING
-
1510-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
1610-8248327 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
17859602 DIPSTICK
SN# 0T178499 & BelowDIPSTICK
SN# 0T178499 & Below -
178596021 DIPSTICK
SN# 0T178500 & UpDIPSTICK
SN# 0T178500 & Up -
1823-48237 BUSHINGBUSHING
-
19858577A3 SHIFT SHAFTSHIFT SHAFT
-
20859177A3 SHIFT LINKSHIFT LINK
-
21NSS NOT SOLD SEPARATE, BushingNOT SOLD SEPARATE, Bushing
-
22NSS NOT SOLD SEPARATE, RollerNOT SOLD SEPARATE, Roller
-
2311-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2423-813745 SPACER
(Long)SPACER
(Long) -
2423-11289 SPACER
(X-Long)SPACER
(X-Long) -
2543585 COUPLINGCOUPLING
-
2618-859746 COTTER PINCOTTER PIN
-
278M0039073 SEALSEAL
-
288288181 PLUG, DrainPLUG, Drain
-
2927-828816 GASKETGASKET
-
3010-82483213 SCREW, (M6 x 60)SCREW, (M6 x 60)
-
3110-4010750 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
3222-479452 PLUGPLUG
-
3322-384073 PLUG, Pipe (.500-14)PLUG, Pipe (.500-14)
