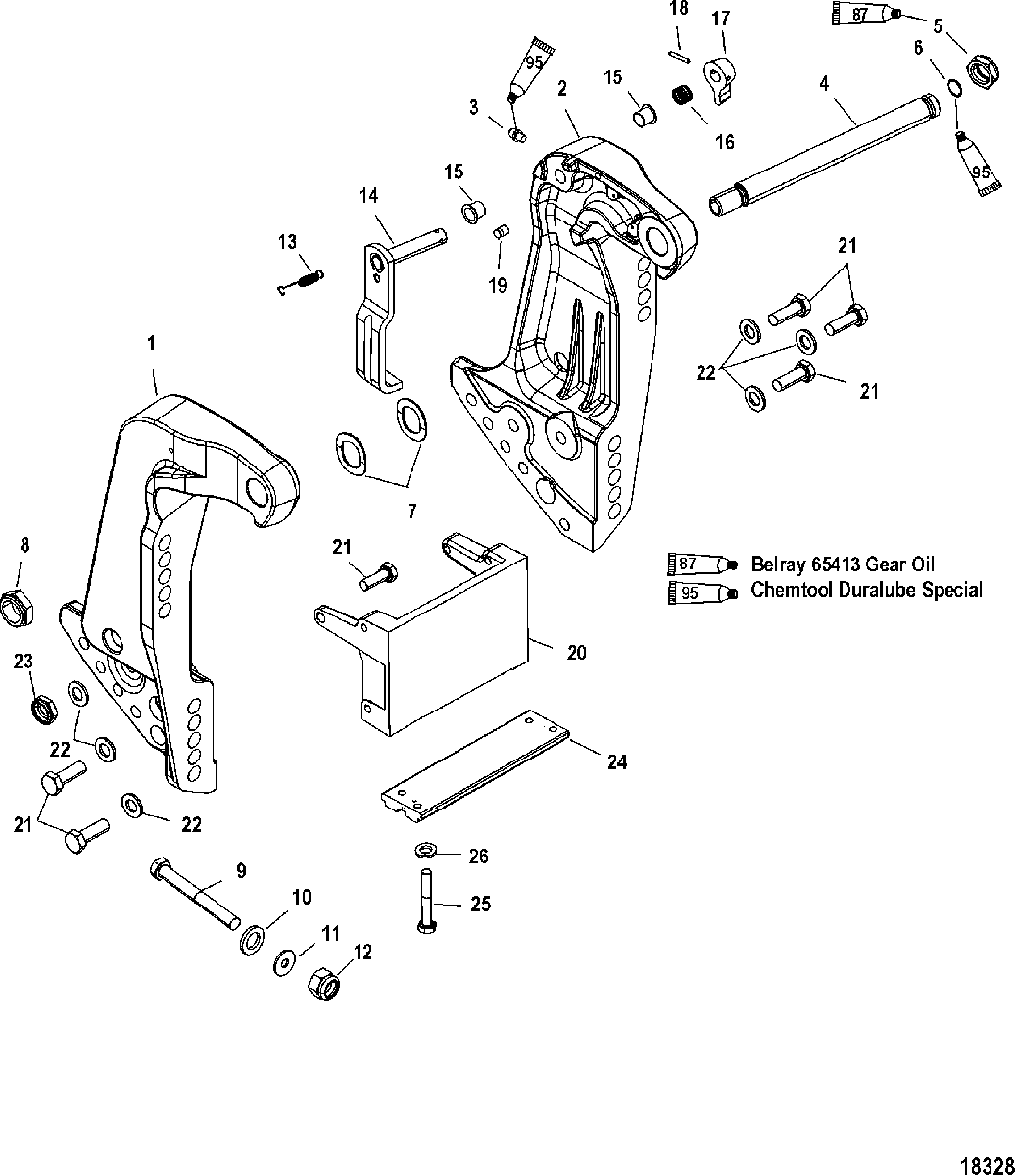

Transom Bracket для Mariner - 90 (4-STROKE) 0G960500 THRU 0T800999

№

Артикул

Название
1

1400-8M0045064 BRACKET, Transom (Starboard)

BRACKET, Transom (Starboard)

42 820 ₽
2

1400-8M0045064 BRACKET ASSEMBLY, Transom (Port)

BRACKET ASSEMBLY, Transom (Port)

42 820 ₽
3

22-98727 FITTING, Grease (Port)

FITTING, Grease (Port)

400 ₽
4

826125A1 TUBE KIT, Tilt

TUBE KIT, Tilt

26 370 ₽
4

826125A1 TILT TUBE
(Saltwater)

TILT TUBE
(Saltwater)

26 370 ₽
5

11-82671327 NUT, (1.00-14)

NUT, (1.00-14)

730 ₽
5

11-826135 NUT, (1.00-14) Nylon Insert
(Saltwater)

NUT, (1.00-14) Nylon Insert
(Saltwater)

1 350 ₽
6

25-45711 O-RING, (.612 x .103)

O-RING, (.612 x .103)

150 ₽
7

13-88750 WASHER

WASHER

450 ₽
8

11-858869 NUT, (.875-14)

NUT, (.875-14)

330 ₽
8

11-826164 NUT, (.875-14)
(Saltwater)

NUT, (.875-14)
(Saltwater)

980 ₽
9

10-677551 SCREW, (.500-20 x 4.500)

SCREW, (.500-20 x 4.500)

1 130 ₽
10

12-54012 WASHER, (.530 x .870 x .105) Stainless Steel

WASHER, (.530 x .870 x .105) Stainless Steel

190 ₽
11

12-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel

WASHER, (1.5 x 3.05 x 0.13) Stainless Steel

260 ₽
12

11-82671117 NUT, (.500-20)

NUT, (.500-20)

560 ₽
13

24-830899 SPRING, Tension

SPRING, Tension

440 ₽
14

8M0109798 LEVER ASSEMBLY, Tilt Lock

LEVER ASSEMBLY, Tilt Lock

4 720 ₽
15

23-65830 NYLINER

NYLINER

320 ₽
16

24-830900 SPRING, Compression

SPRING, Compression

200 ₽
17

99633 KNOB

KNOB

190 ₽
18

17-99615 PIN, Groove

PIN, Groove

320 ₽
19

17-893709 PIN

PIN

270 ₽
20

8M0086406 BRACKET, Anchor

BRACKET, Anchor

30 870 ₽
21

10-858771 SCREW, (M10 x 30)

SCREW, (M10 x 30)

180 ₽
22

12-4002319 WASHER

WASHER

200 ₽
23

11-40114 NUT, (M10 x 1.5)

NUT, (M10 x 1.5)

440 ₽
24

97-818298Q1 ANODE KIT

ANODE KIT

2 020 ₽
25

10-4000330 SCREW, (M6 x 25)

SCREW, (M6 x 25)

250 ₽
26

12-29245 WASHER, (.281 x .500 x .060) Stainless Steel

WASHER, (.281 x .500 x .060) Stainless Steel

120 ₽
