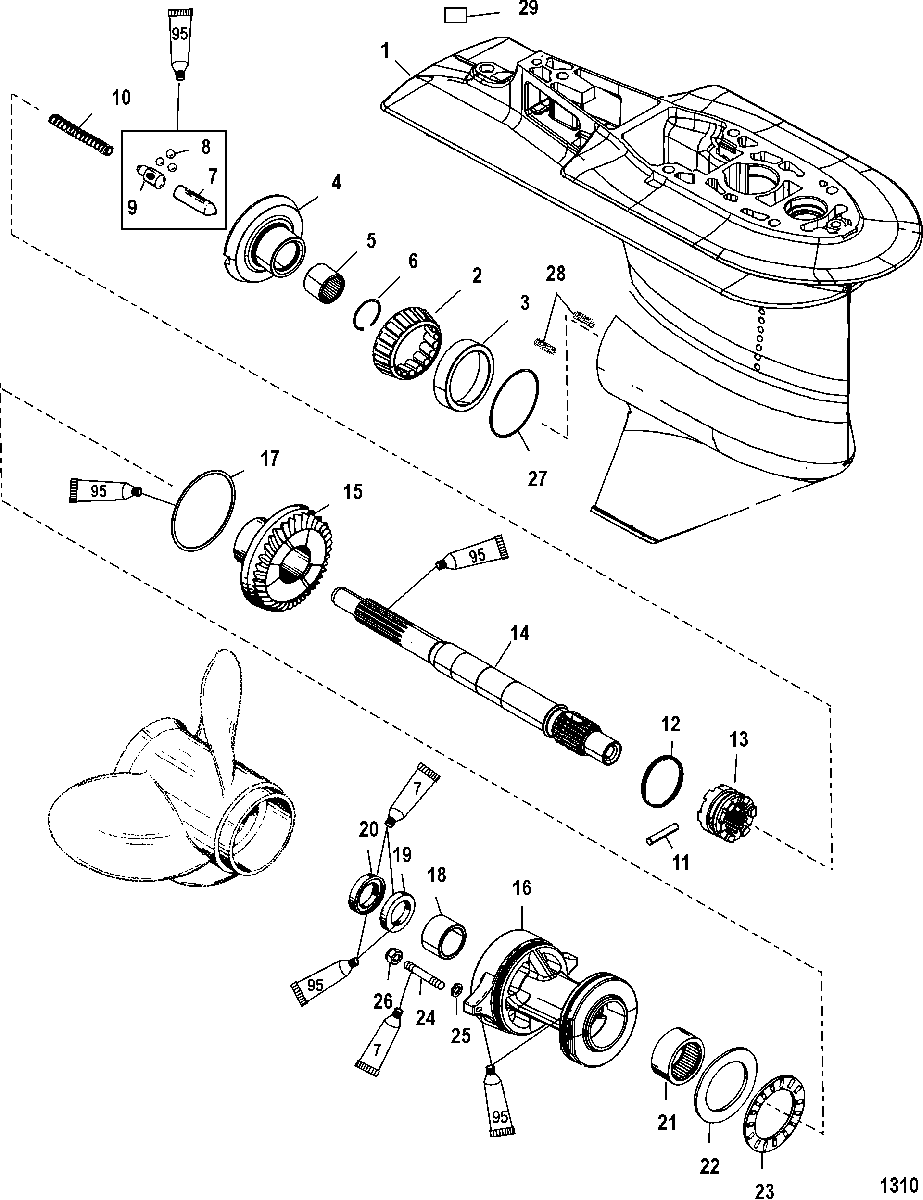

Gear Hsg(Prop-2.33:1)(S/N-0T599000 & Up) для Mariner - 90 (4-STROKE) 0G960500 THRU 0T800999
-
№АртикулНазвание
-
-1667-9011J29 GEAR HOUSING ASSEMBLY, Complete
(Long)GEAR HOUSING ASSEMBLY, Complete
(Long) -
-1667-9011J31 GEAR HOUSING ASSEMBLY, Complete
(X-Long)GEAR HOUSING ASSEMBLY, Complete
(X-Long) -
11667-9011G59 GEAR HOUSING ASSEMBLY, BasicGEAR HOUSING ASSEMBLY, Basic
-
231-30894A1 BEARING SET, Cup And ConeBEARING SET, Cup And Cone
-
3NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
443-882813A3 GEAR KIT, Forward And Pinion 28 TeethGEAR KIT, Forward And Pinion 28 Teeth
-
531-30895T BEARING, NeedleBEARING, Needle
-
653-856823 RING, RetainingRING, Retaining
-
7850315A1 FOLLOWER KIT, CamFOLLOWER KIT, Cam
-
830-44530 BALLBALL
-
9NSS NOT SOLD SEPARATE, SlideNOT SOLD SEPARATE, Slide
-
1024-850327 SPRINGSPRING
-
1152-850048T CLUTCHCLUTCH
-
1217-8M0100263 PIN, CrossPIN, Cross
-
1324-30893 SPRINGSPRING
-
1444-8M0140445 PROPELLER SHAFTPROPELLER SHAFT
-
1543-882814T GEAR, Reverse - 28 TeethGEAR, Reverse - 28 Teeth
-
1612596T2 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
1725-861844 O-RING, (3.609 x .139)O-RING, (3.609 x .139)
-
1831-30956T BEARING, NeedleBEARING, Needle
-
1926-70080 SEAL, Oil (Inner)SEAL, Oil (Inner)
-
2026-70081 SEAL, Oil (Outer)SEAL, Oil (Outer)
-
2131-12578T BEARING, RollerBEARING, Roller
-
2212-12577 THRUST WASHERTHRUST WASHER
-
2331-12576 BEARING, ThrustBEARING, Thrust
-
2416-8M0034456 STUD, (M8 x 48)STUD, (M8 x 48)
-
2512-855941 WASHER, (.323 x .590 x .112) Stainless SteelWASHER, (.323 x .590 x .112) Stainless Steel
-
2611-401378 NUT, (M8)NUT, (M8)
-
2715-8M0063266 SHIM SETSHIM SET
-
288227731 INSERT, ThreadedINSERT, Threaded
-
29NSS NOT SOLD SEPARATE, Decal-Pinion IdentificationNOT SOLD SEPARATE, Decal-Pinion Identification
-
-26-43035A4 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
-
-31-803496T2 BEARING/SEAL KIT (Without Forward Bearing)BEARING/SEAL KIT (Without Forward Bearing)
-
-52-803489T1 REPAIR KIT, Clutch/CamREPAIR KIT, Clutch/Cam
