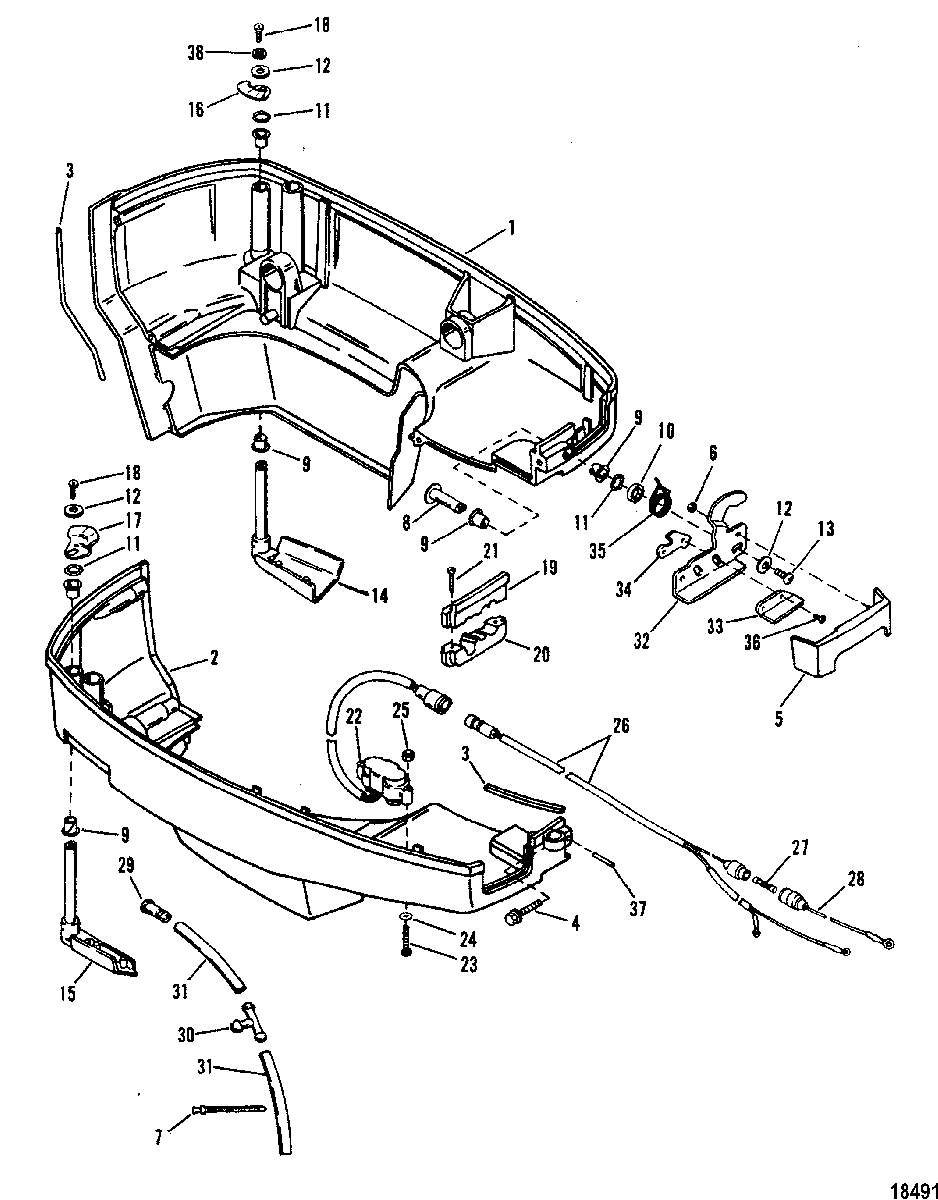

Bottom Cowl для Mariner - MAGNUM II 0C100861 THRU 0C239552

№

Артикул

Название
1

2197-9744A16 BOTTOM COWL ASSEMBLY
(Black-Port-Without Decals)

BOTTOM COWL ASSEMBLY
(Black-Port-Without Decals)

55 010 ₽
1

2197-9744A16 BOTTOM COWL ASSEMBLY
(Gray-Port-Without Decals)

BOTTOM COWL ASSEMBLY
(Gray-Port-Without Decals)

55 010 ₽
2

2197-9745A1 BOTTOM COWL ASSEMBLY
(Black-Starboard-Without Decals)

BOTTOM COWL ASSEMBLY
(Black-Starboard-Without Decals)

0 ₽
2

2197-9745A2 BOTTOM COWL ASSEMBLY
(Gray-Starboard-Without Decals)

BOTTOM COWL ASSEMBLY
(Gray-Starboard-Without Decals)

63 520 ₽
3

18701A1 SEAL KIT, Bottom Cowls

SEAL KIT, Bottom Cowls

0 ₽
4

10-18699 SCREW, (.250-20 x 1.320), Cowl (Starboard)

SCREW, (.250-20 x 1.320), Cowl (Starboard)

270 ₽
5

18872A1 COVER ASSEMBLY
(Black)

COVER ASSEMBLY
(Black)

0 ₽
5

18872A1 COVER ASSEMBLY
(Gray)

COVER ASSEMBLY
(Gray)

0 ₽
6

11-8136921 LOCKNUT

LOCKNUT

0 ₽
7

54-816311T TIE STRAP

TIE STRAP

40 ₽
8

18727 ROD

ROD

0 ₽
9

23-65830 NYLINER

NYLINER

320 ₽
10

23-19666 BUSHING

BUSHING

0 ₽
11

13-99611 WAVE WASHER

WAVE WASHER

140 ₽
12

12-69057 WASHER, (.281 x .734 x .063)

WASHER, (.281 x .734 x .063)

140 ₽
13

10-18192 SCREW, (.250-20 x .620)

SCREW, (.250-20 x .620)

0 ₽
14

19648A2 HANDLE ASSEMBLY
(Black-Port)

HANDLE ASSEMBLY
(Black-Port)

10 920 ₽
14

19648A2 HANDLE ASSEMBLY
(Gray-Port)

HANDLE ASSEMBLY
(Gray-Port)

10 920 ₽
15

19647A3 HANDLE ASSEMBLY
(Black-Starboard)

HANDLE ASSEMBLY
(Black-Starboard)

0 ₽
15

19647A3 HANDLE ASSEMBLY
(Gray-Starboard)

HANDLE ASSEMBLY
(Gray-Starboard)

0 ₽
16

19370 PAWL (Port)
Order 813096A1 Rear Latch Kit when replacing non-roller components.(A product improvement)

PAWL (Port)
Order 813096A1 Rear Latch Kit when replacing non-roller components.(A product improvement)

0 ₽
17

19369 PAWL (Starboard)
Order 813096A1 Rear Latch Kit when replacing non-roller components.(A product improvement)

PAWL (Starboard)
Order 813096A1 Rear Latch Kit when replacing non-roller components.(A product improvement)

0 ₽
18

10-90047 SCREW

SCREW

0 ₽
19

54-19749 CLAMP, Upper

CLAMP, Upper

380 ₽
20

54-197481 CLAMP, Lower

CLAMP, Lower

1 010 ₽
21

10-92799 SCREW, (#10-16 x 1.12)

SCREW, (#10-16 x 1.12)

140 ₽
22

84-16636A1 HARNESS ASSEMBLY, Trim

HARNESS ASSEMBLY, Trim

0 ₽
23

10-72202 SCREW, (#10-32 x 1.25)

SCREW, (#10-32 x 1.25)

230 ₽
24

12-56681 WASHER, (.203 x .500 x .032)

WASHER, (.203 x .500 x .032)

140 ₽
25

11-826709106 NUT, (#10-32)

NUT, (#10-32)

340 ₽
26

84-16639A1 HARNESS ASSEMBLY

HARNESS ASSEMBLY

0 ₽
27

88-79091 FUSE, 20 Ampere

FUSE, 20 Ampere

360 ₽
28

84-95084A2 CABLE ASSEMBLY, Fuse

CABLE ASSEMBLY, Fuse

1 150 ₽
29

22-813613 FITTING, Telltale

FITTING, Telltale

190 ₽
30

22-90824001 TEE, Telltale

TEE, Telltale

1 600 ₽
31

32-8M0108355 LINE, (57.00 Inches Bulk), Telltale

LINE, (57.00 Inches Bulk), Telltale

5 260 ₽
32

813076A2 FRONT HANDLE ASSEMBLY

FRONT HANDLE ASSEMBLY

0 ₽
33

813076A2 HANDLE LOCK

HANDLE LOCK

0 ₽
34

813076A2 HANDLE

HANDLE

0 ₽
35

813076A2 SPRING

SPRING

0 ₽
36

10-69079 SCREW, (#10-16 x .440)

SCREW, (#10-16 x .440)

100 ₽
37

17-815296 PIN, Lock

PIN, Lock

0 ₽
38

13-26992 LOCKWASHER, (.250) Stainless Steel

LOCKWASHER, (.250) Stainless Steel

70 ₽
-

813096A1 REAR LATCH KIT
(Order when replacing Non-Roller Components)

REAR LATCH KIT
(Order when replacing Non-Roller Components)

0 ₽
