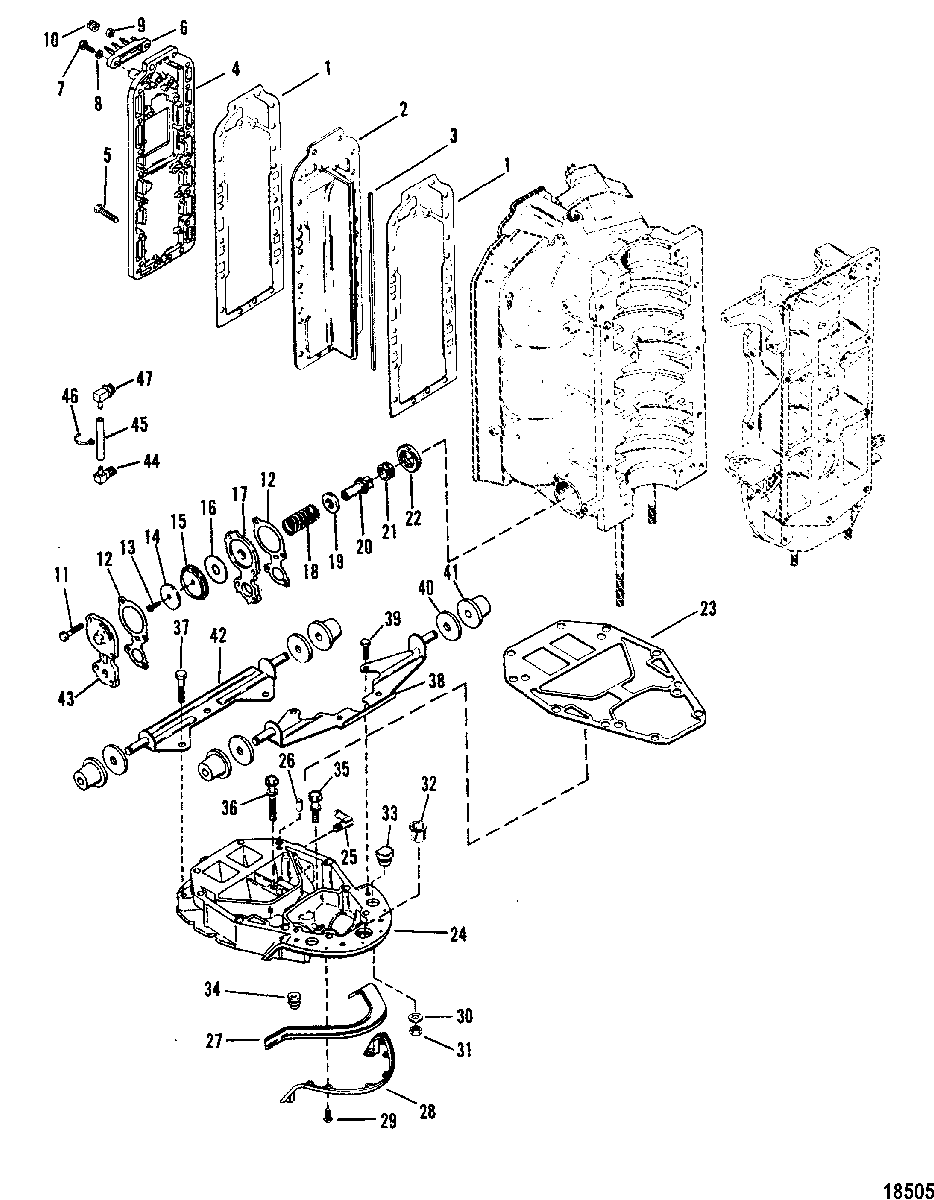

Exhaust Manifold and Exhaust Plate для Mariner - MAGNUM II 0C100861 THRU 0C239552
-
№АртикулНазвание
-
127-904841 GASKET, DIVIDER PLATEGASKET, DIVIDER PLATE
-
299169A1 DIVIDER PLATE, DIVIDERDIVIDER PLATE, DIVIDER
-
326-814754 SEAL, DIVIDER PLATESEAL, DIVIDER PLATE
-
4193071 COVER, EXHAUST MANIFOLDCOVER, EXHAUST MANIFOLD
-
510-74824 SCREW, (.312-18 x 1.250), COVER AND PLATE TO CYLINDER BLOCKSCREW, (.312-18 x 1.250), COVER AND PLATE TO CYLINDER BLOCK
-
686-194373 TERMINAL BLOCK (3 TERMINALS)TERMINAL BLOCK (3 TERMINALS)
-
710-31716 SCREW, (.250-20 x .620), TERMINAL BLOCKSCREW, (.250-20 x .620), TERMINAL BLOCK
-
812-29245 WASHER, (.281 x .500 x .060) Stainless Steel, TERMINAL BLOCK SCREWWASHER, (.281 x .500 x .060) Stainless Steel, TERMINAL BLOCK SCREW
-
911-45076 NUT, (#10-32) Brass, TERMINAL BLOCKNUT, (#10-32) Brass, TERMINAL BLOCK
-
1011-813938 CAP NUT, (#10-32)CAP NUT, (#10-32)
-
1110-74824 SCREW, (.312-18 x 1.250), COVER TO CYLINDER BLOCKSCREW, (.312-18 x 1.250), COVER TO CYLINDER BLOCK
-
1227-78690002 GASKET, RELIEF VALVE PLATEGASKET, RELIEF VALVE PLATE
-
1310-69570 SCREW, (#10-16 x .750), DIAPHRAGM TO PLATESCREW, (#10-16 x .750), DIAPHRAGM TO PLATE
-
1412-76451 WASHER, DIAPHRAGM SCREWWASHER, DIAPHRAGM SCREW
-
15144791 DIAPHRAGMDIAPHRAGM
-
1616496 DEFLECTOR, WaterDEFLECTOR, Water
-
1716497A1 PLATE, RELIEF VALVEPLATE, RELIEF VALVE
-
1824-64878 SPRING, (Black), COMPRESION POPPET VALVESPRING, (Black), COMPRESION POPPET VALVE
-
1912-85303 WASHER, POPPET SPRINGWASHER, POPPET SPRING
-
2014480 POPPET, VALVEPOPPET, VALVE
-
2125-64872 GROMMET, POPPET VALVEGROMMET, POPPET VALVE
-
2265848 CARRIER, POPPET VALVECARRIER, POPPET VALVE
-
2327-991764 GASKET, EXHAUST PLATEGASKET, EXHAUST PLATE
-
2441944A5 PLATE ASSEMBLY, EXHAUSTPLATE ASSEMBLY, EXHAUST
-
2522-996642 ELBOW, EXHAUST PLATEELBOW, EXHAUST PLATE
-
2617-43044 PIN, Dowel, LOCATING-EXHAUST PLATEPIN, Dowel, LOCATING-EXHAUST PLATE
-
278M0043165 SEAL, EXHAUST PLATESEAL, EXHAUST PLATE
-
28680101 BRACKET, SEAL RETAININGBRACKET, SEAL RETAINING
-
2910-48408 SCREW, (#10-16 x .500), BRACKET TO EXHAUST PLATESCREW, (#10-16 x .500), BRACKET TO EXHAUST PLATE
-
3012-20553 WASHER, POWERHEAD STUDWASHER, POWERHEAD STUD
-
3111-69254 NUT, POWERHEAD STUDNUT, POWERHEAD STUD
-
3223-27132 BUSHING, EXHAUST PLATEBUSHING, EXHAUST PLATE
-
3325-19564001 GROMMETGROMMET
-
3425-12602002 GROMMET, EXHAUST PLATEGROMMET, EXHAUST PLATE
-
3510-66727 SCREW, (.312-18 x 1.250), EXHAUST PLATE ATTACHINGSCREW, (.312-18 x 1.250), EXHAUST PLATE ATTACHING
-
3610-68783 SCREW, (.312-18 x 2.50), EXHAUST PLATE ATTACHINGSCREW, (.312-18 x 2.50), EXHAUST PLATE ATTACHING
-
3710-898833 SCREW, (.375-16 x 3.50), EXHAUST PLATE ATTACHINGSCREW, (.375-16 x 3.50), EXHAUST PLATE ATTACHING
-
38812905T BRACKET ASSEMBLY, FRONTBRACKET ASSEMBLY, FRONT
-
3910-90285 SCREW, (.312-18 x .625), FRONT BRACKETSCREW, (.312-18 x .625), FRONT BRACKET
-
4012-187031 WASHERWASHER
-
4125-18778001 GROMMETGROMMET
-
4218578T09 BRACKET ASSEMBLY, Rear, REARBRACKET ASSEMBLY, Rear, REAR
-
4314462A1 COVER, RELIEF VALVE (OLD DESIGN)COVER, RELIEF VALVE (OLD DESIGN)
-
438M0039767 COVER, RELIEF VALVE (NEW DESIGN)COVER, RELIEF VALVE (NEW DESIGN)
-
4422-920071 FITTING, (.250-18) (90 DEG.) (NEW DESIGN)FITTING, (.250-18) (90 DEG.) (NEW DESIGN)
-
4532-8M0108355 LINE, (57.00 Inches Bulk) (NEW DESIGN)LINE, (57.00 Inches Bulk) (NEW DESIGN)
-
4654-816311T TIE STRAP (NEW DESIGN)TIE STRAP (NEW DESIGN)
-
4722-8144301 FITTING, (.500-14) (NEW DESIGN)FITTING, (.500-14) (NEW DESIGN)
-
-27-11338A88 GASKET SET, Engine OverhaulGASKET SET, Engine Overhaul
