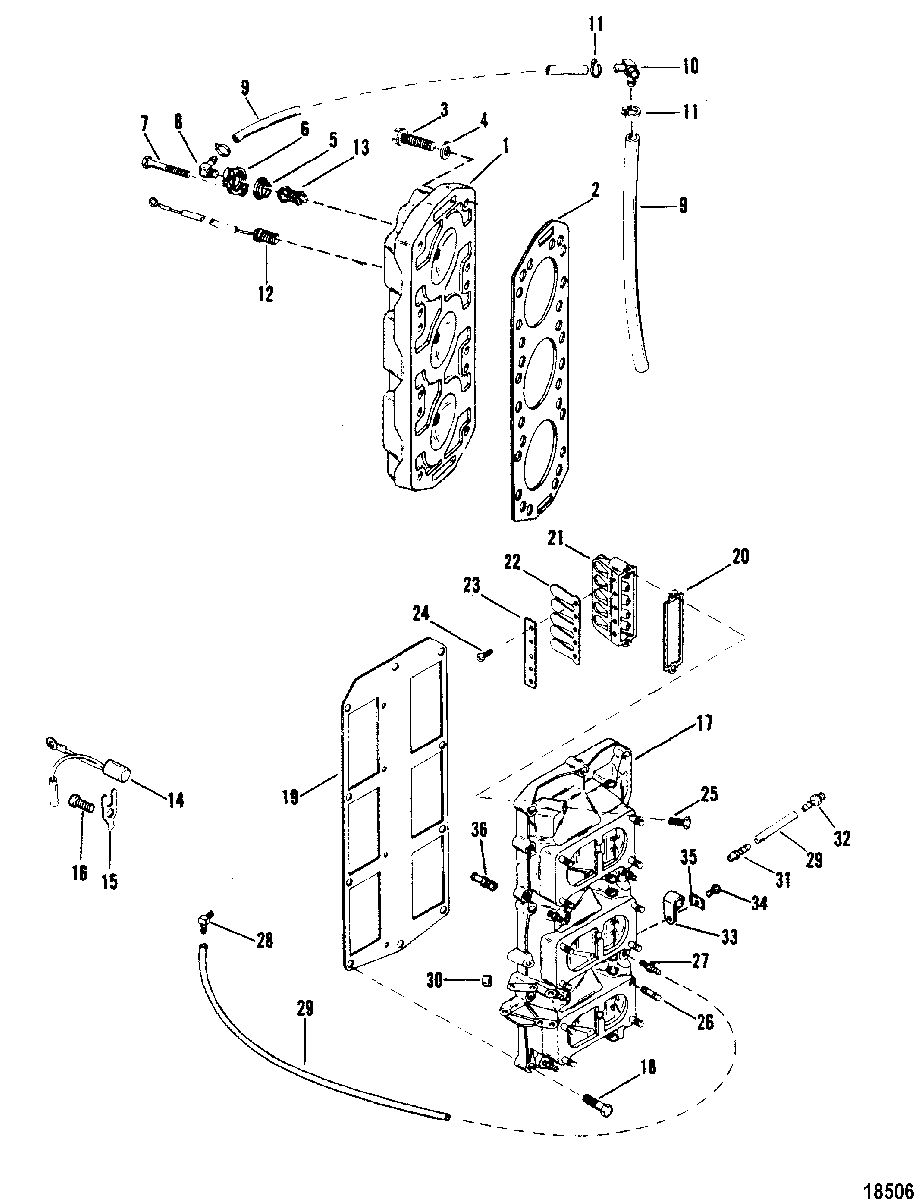

Reed Block and Cylinder Head для Mariner - MAGNUM II 0C100861 THRU 0C239552
-
№АртикулНазвание
-
115221A5 CYLINDER HEAD ASSEMBLYCYLINDER HEAD ASSEMBLY
-
227-41247T01 GASKET, CYLINDER COVERGASKET, CYLINDER COVER
-
310-98534 SCREW, (.375-16 x 2.30), CYLINDER HEADSCREW, (.375-16 x 2.30), CYLINDER HEAD
-
412-25909 WASHER, (.406 x .812 x .065), CYLINDER HEAD SCREWWASHER, (.406 x .812 x .065), CYLINDER HEAD SCREW
-
527-62386001 GASKET, THERMOSTATGASKET, THERMOSTAT
-
690390A1 COVER KIT, THERMOSTATCOVER KIT, THERMOSTAT
-
710-35386 SCREW, (.312-18 x 1.00), THERMOSTAT COVERSCREW, (.312-18 x 1.00), THERMOSTAT COVER
-
822-687271 FITTING, (.250-18) 90 Degree - Brass, ELBOW - WATER HOSESFITTING, (.250-18) 90 Degree - Brass, ELBOW - WATER HOSES
-
932-77653101 HOSE, (24.500 Inches Bulk), WATER DISTRUBUTIONHOSE, (24.500 Inches Bulk), WATER DISTRUBUTION
-
1022-68728 FITTING, THERMOSTAT COVER TO WATER HOSESFITTING, THERMOSTAT COVER TO WATER HOSES
-
1154-816311T TIE STRAP, WATER HOSESTIE STRAP, WATER HOSES
-
1297465 SENDER, Temperature (STARBOARD)SENDER, Temperature (STARBOARD)
-
1375692 THERMOSTATTHERMOSTAT
-
1413536A7 SENSOR ASSEMBLY, Temperature (PORT)SENSOR ASSEMBLY, Temperature (PORT)
-
15137151 RETAINER, SENSOR AND SENDERRETAINER, SENSOR AND SENDER
-
1610-98257 SCREW, (.312-18 x .500), RETAINERSCREW, (.312-18 x .500), RETAINER
-
1799747A9 HOUSING, REED BLOCKHOUSING, REED BLOCK
-
1810-24878 SCREW, (.250-20 x 1.25), REED BLOCK HOUSINGSCREW, (.250-20 x 1.25), REED BLOCK HOUSING
-
1810-69093 SCREW, (.250-20 x 1.50), REED BLOCK HOUSINGSCREW, (.250-20 x 1.50), REED BLOCK HOUSING
-
1810-69067 SCREW, (.250-20 x 1.375), REED BLOCK HOUSINGSCREW, (.250-20 x 1.375), REED BLOCK HOUSING
-
1927-935361 GASKET, REED BLOCK HOUSINGGASKET, REED BLOCK HOUSING
-
2027-657443 GASKET, REED BLOCKGASKET, REED BLOCK
-
2175953 REED BLOCKREED BLOCK
-
2234-75362A1 REED ASSEMBLYREED ASSEMBLY
-
23961832 CLAMP, ReedCLAMP, Reed
-
2410-57583T SCREW, (#8-32 x .375), REED TO REED BLOCKSCREW, (#8-32 x .375), REED TO REED BLOCK
-
2510-65746 SCREW, (.250-20 x .750), REED BLOCK ATTACHINGSCREW, (.250-20 x .750), REED BLOCK ATTACHING
-
2616-270372 STUD, (.250-28 x 1.125), CARBURETOR MOUNTINGSTUD, (.250-28 x 1.125), CARBURETOR MOUNTING
-
2721-426585 CHECK VALVE, BLEED HOSE TO REED BLOCK HOUSINGCHECK VALVE, BLEED HOSE TO REED BLOCK HOUSING
-
2822-15133 FITTING, BLEED HOSE TO CYLINDER BLOCK (90 DEG.)FITTING, BLEED HOSE TO CYLINDER BLOCK (90 DEG.)
-
2932-892024122 TUBING, (20.00 Feet Bulk), BLEED LINETUBING, (20.00 Feet Bulk), BLEED LINE
-
3021-42657A3 CHECK VALVECHECK VALVE
-
3122-56759 CONNECTOR, BLEED HOSE (PRESS-IN)CONNECTOR, BLEED HOSE (PRESS-IN)
-
3221-64871A2 CHECK VALVECHECK VALVE
-
3354-23567 CLIP (9/16")CLIP (9/16")
-
3354-26404 CLAMP (1")CLAMP (1")
-
3410-69079 SCREW, (#10-16 x .440), CLIPSCREW, (#10-16 x .440), CLIP
-
358M0084613 C WASHERC WASHER
-
3622-64705 FITTINGFITTING
-
-27-11338A88 GASKET SET, Engine OverhaulGASKET SET, Engine Overhaul
