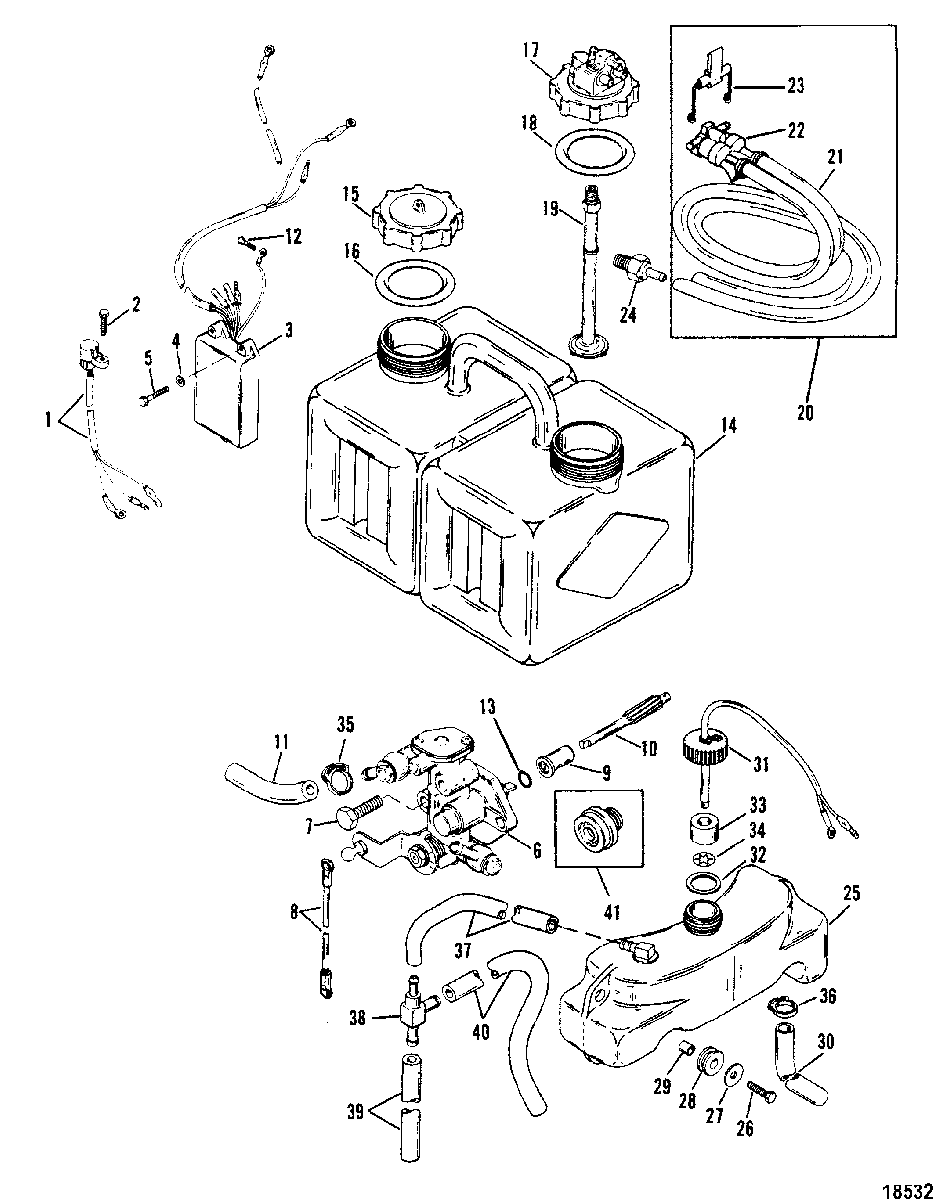

Oil Injection Components для Mariner - MAGNUM II 0C100861 THRU 0C239552
-
№АртикулНазвание
-
112430A4 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
210-48409 SCREW, (#10-16 x .625) Stainless Steel, SENSOR ATTACHINGSCREW, (#10-16 x .625) Stainless Steel, SENSOR ATTACHING
-
341470A26 WARNING MODULE ASSEMBLYWARNING MODULE ASSEMBLY
-
412-38833 WASHER, WARNING MODULE SCREWWASHER, WARNING MODULE SCREW
-
510-690201 SCREW, (#10-32 x .875), WARNING MODULE TO CYLINDER BLOCKSCREW, (#10-32 x .875), WARNING MODULE TO CYLINDER BLOCK
-
6815698T PUMP ASSEMBLY, OilPUMP ASSEMBLY, Oil
-
710-32228 SCREW, (#10-32 x .625), OIL PUMP TO CRANKCASESCREW, (#10-32 x .625), OIL PUMP TO CRANKCASE
-
710-41507 SCREW, (#10-32 x 1.120), OIL PUMP TO CRANKCASESCREW, (#10-32 x 1.120), OIL PUMP TO CRANKCASE
-
8193856 LINK, THROTTLE LEVER TO OIL PUMPLINK, THROTTLE LEVER TO OIL PUMP
-
923-41429A2 BEARING ASSEMBLY, DRIVE GEARBEARING ASSEMBLY, DRIVE GEAR
-
1043-14563 GEAR, DrivenGEAR, Driven
-
1132-82381335 TUBING, OIL PUMP TO TEETUBING, OIL PUMP TO TEE
-
1210-42813 SCREW, (#10-32 X .380), WARNING MODULE LEADSCREW, (#10-32 X .380), WARNING MODULE LEAD
-
1325-11379 O-RING, OIL PUMPO-RING, OIL PUMP
-
141257-87421 TANKTANK
-
1536-43298A2 CAP ASSEMBLY, OIL TANKCAP ASSEMBLY, OIL TANK
-
1625-11332 O-RING, (2.225 x .210), CAPO-RING, (2.225 x .210), CAP
-
17816190A4 HOUSING ASSEMBLY, AdaptorHOUSING ASSEMBLY, Adaptor
-
1825-11332 O-RING, (2.225 x .210), ADAPTOR HOUSINGO-RING, (2.225 x .210), ADAPTOR HOUSING
-
1932-99802 TUBE, OIL PICK-UPTUBE, OIL PICK-UP
-
20816190A4 HOUSING ASSEMBLY, FlywheelHOUSING ASSEMBLY, Flywheel
-
2132-99439 HOSE, (114.00 Inches), OILHOSE, (114.00 Inches), OIL
-
2212540A3 HOUSINGHOUSING
-
2312242A1 LATCHLATCH
-
2421-8781051 FITTING, CHECK VALVE (CRANKCASE)FITTING, CHECK VALVE (CRANKCASE)
-
25994436 RESERVOIR, OilRESERVOIR, Oil
-
2610-690201 SCREW, (#10-32 x .875), OIL RESERVOIR ATTACHINGSCREW, (#10-32 x .875), OIL RESERVOIR ATTACHING
-
2712-42118 WASHER, OIL RESERVOIR SCREWWASHER, OIL RESERVOIR SCREW
-
2825-42117 GROMMET, OIL RESERVOIR SCREWGROMMET, OIL RESERVOIR SCREW
-
2923-42116 BUSHING, OIL RESERVOIR SCREWBUSHING, OIL RESERVOIR SCREW
-
3032-82381455 TUBING, OIL RESERVOIR TO OIL PUMP (5-1/4")TUBING, OIL RESERVOIR TO OIL PUMP (5-1/4")
-
3136-43300A9 CAP ASSEMBLY, OIL RESERVOIRCAP ASSEMBLY, OIL RESERVOIR
-
3227-43307T GASKET, RESERVOIR CAPGASKET, RESERVOIR CAP
-
3399022A1 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
3411-99265 PUSH NUTPUSH NUT
-
3554-415821 CLAMP, OIL HOSE (SMALL)CLAMP, OIL HOSE (SMALL)
-
3654-415823 CLAMP, OIL HOSE (LARGE)CLAMP, OIL HOSE (LARGE)
-
3732-8M0108355 LINE, (57.00 Inches Bulk), OILLINE, (57.00 Inches Bulk), OIL
-
3822-42425 TEE, OIL TUBINGTEE, OIL TUBING
-
3932-9072925 HOSE, OIL (6-3/4")HOSE, OIL (6-3/4")
-
4032-8M0108355 LINE, (57.00 Inches Bulk)LINE, (57.00 Inches Bulk)
-
418141032 BEARINGBEARING
