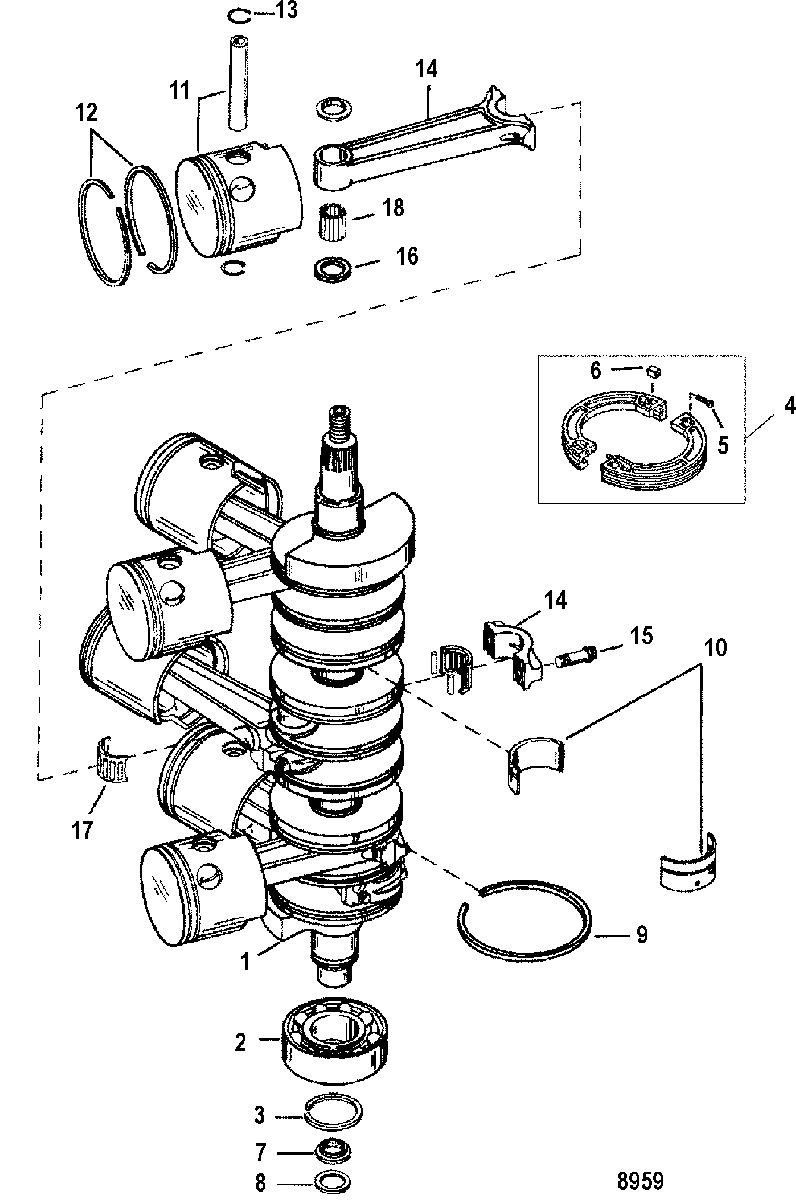

Crankshaft(Connecting Rod Forging # is 636-8118) для Mariner - V-150 0C239553 THRU 0D081999

№

Артикул

Название
1

455-9536T4 CRANKSHAFT ASSEMBLY

CRANKSHAFT ASSEMBLY

294 510 ₽
2

30-67923T BEARING, Ball, CRANKSHAFT (LOWER)

BEARING, Ball, CRANKSHAFT (LOWER)

5 390 ₽
3

53-67446 RING, BALL BEARING

RING, BALL BEARING

230 ₽
4

43-14513A09 GEAR KIT

GEAR KIT

7 950 ₽
5

10-813073 SCREW, (#6-32 x .620)

SCREW, (#6-32 x .620)

150 ₽
6

11-813134 NUT, (#6-32 Special)

NUT, (#6-32 Special)

440 ₽
7

54196A6 CARRIER ASSEMBLY, SEAL

CARRIER ASSEMBLY, SEAL

1 530 ₽
8

65800 PACKING, CARRIER

PACKING, CARRIER

300 ₽
9

39-67377T RING, SEALING - CRANKSHAFT

RING, SEALING - CRANKSHAFT

1 140 ₽
10

31-16756A6 ROLLER BEARING, CRANKSHAFT

ROLLER BEARING, CRANKSHAFT

10 750 ₽
11

765-7441T36 PISTON (STARBOARD-STANDARD)
(135/150)

PISTON (STARBOARD-STANDARD)
(135/150)

15 320 ₽
11

765-7443A12 PISTON (STARBOARD-.015 O.S.)
(135/150)

PISTON (STARBOARD-.015 O.S.)
(135/150)

20 160 ₽
11

765-7445A12 PISTON (STARBOARD-.030 OS.)
(135/150)

PISTON (STARBOARD-.030 OS.)
(135/150)

18 850 ₽
11

765-7442T36 PISTON (PORT-STANDARD)
(135/150)

PISTON (PORT-STANDARD)
(135/150)

25 100 ₽
11

765-7444A12 PISTON (PORT-.015 O.S.)
(135/150)

PISTON (PORT-.015 O.S.)
(135/150)

23 530 ₽
11

765-7446T12 PISTON (PORT-.030 O.S.)
(135/150)

PISTON (PORT-.030 O.S.)
(135/150)

16 290 ₽
11

766-8666T42 PISTON ASSEMBLY (STARBOARD-STANDARD)
(XR4/MAGNUM II/175)

PISTON ASSEMBLY (STARBOARD-STANDARD)
(XR4/MAGNUM II/175)

25 410 ₽
11

766-8666A43 PISTON ASSEMBLY, (Starboard) (015 O.S.)
(XR4/MAGNUM II/ 175)

PISTON ASSEMBLY, (Starboard) (015 O.S.)
(XR4/MAGNUM II/ 175)

33 250 ₽
11

766-8667T42 PISTON ASSEMBLY (PORT-STANDARD)
(XR4/MAGNUM II/ 175)

PISTON ASSEMBLY (PORT-STANDARD)
(XR4/MAGNUM II/ 175)

34 210 ₽
11

766-8667A43 PISTON ASSEMBLY, (Port) (.015 O.S.)
(XR4/MAGNUM II/ 175)

PISTON ASSEMBLY, (Port) (.015 O.S.)
(XR4/MAGNUM II/ 175)

34 240 ₽
11

785-9738T4 PISTON (STARBOARD-STANDARD)
(200)

PISTON (STARBOARD-STANDARD)
(200)

15 620 ₽
11

785-9738A5 PISTON (STARBOARD-.015 O.S.)
(200)

PISTON (STARBOARD-.015 O.S.)
(200)

16 370 ₽
11

785-9737T4 PISTON (PORT-STANDARD)
(200)

PISTON (PORT-STANDARD)
(200)

14 080 ₽
11

785-9737A5 PISTON (PORT-.015 O.S.)
(200)

PISTON (PORT-.015 O.S.)
(200)

16 370 ₽
12

39-93481A12 PISTON RING (STANDARD)
(135/150)

PISTON RING (STANDARD)
(135/150)

29 270 ₽
12

39-78918A4 PISTON RING (.015 O.S.)
(135/150)

PISTON RING (.015 O.S.)
(135/150)

10 990 ₽
12

39-85636A4 PISTON RING (.030 O.S.)
(135/150)

PISTON RING (.030 O.S.)
(135/150)

16 480 ₽
12

39-18487A12 PISTON RING ASSEMBLY (STANDARD)
(XR4/MAGNUM II/175)

PISTON RING ASSEMBLY (STANDARD)
(XR4/MAGNUM II/175)

75 690 ₽
12

39-815267A4 PISTON RING ASSEMBLY (.015 O.S.)
(XR4/MAGNUM II/175)

PISTON RING ASSEMBLY (.015 O.S.)
(XR4/MAGNUM II/175)

15 450 ₽
12

39-815515A12 PISTON RING (STANDARD)
(200)

PISTON RING (STANDARD)
(200)

28 280 ₽
12

39-815268A4 PISTON RING (.015 O.S.)
(200)

PISTON RING (.015 O.S.)
(200)

16 010 ₽
13

53-857196 RING, Lock

RING, Lock

100 ₽
14

636-8119A6 CONNECTING ROD ASSEMBLY

CONNECTING ROD ASSEMBLY

41 150 ₽
15

10-93886 SCREW, (.3125-28 X .875), CONNECTING ROD

SCREW, (.3125-28 X .875), CONNECTING ROD

460 ₽
16

12-8M0032839 WASHER, NEEDLE LOCATING

WASHER, NEEDLE LOCATING

960 ₽
17

31-8M0045428 BEARING KIT

BEARING KIT

7 260 ₽
18

29-67483 NEEDLE BEARING, PISTON END

NEEDLE BEARING, PISTON END

50 ₽
-

27-815791A92 GASKET SET
(135/150)

GASKET SET
(135/150)

20 840 ₽
-

27-815791A92 GASKET SET
(XR4/Magnum II/175)

GASKET SET
(XR4/Magnum II/175)

20 840 ₽
-

27-815791A92 GASKET SET
(200)

GASKET SET
(200)

20 840 ₽
