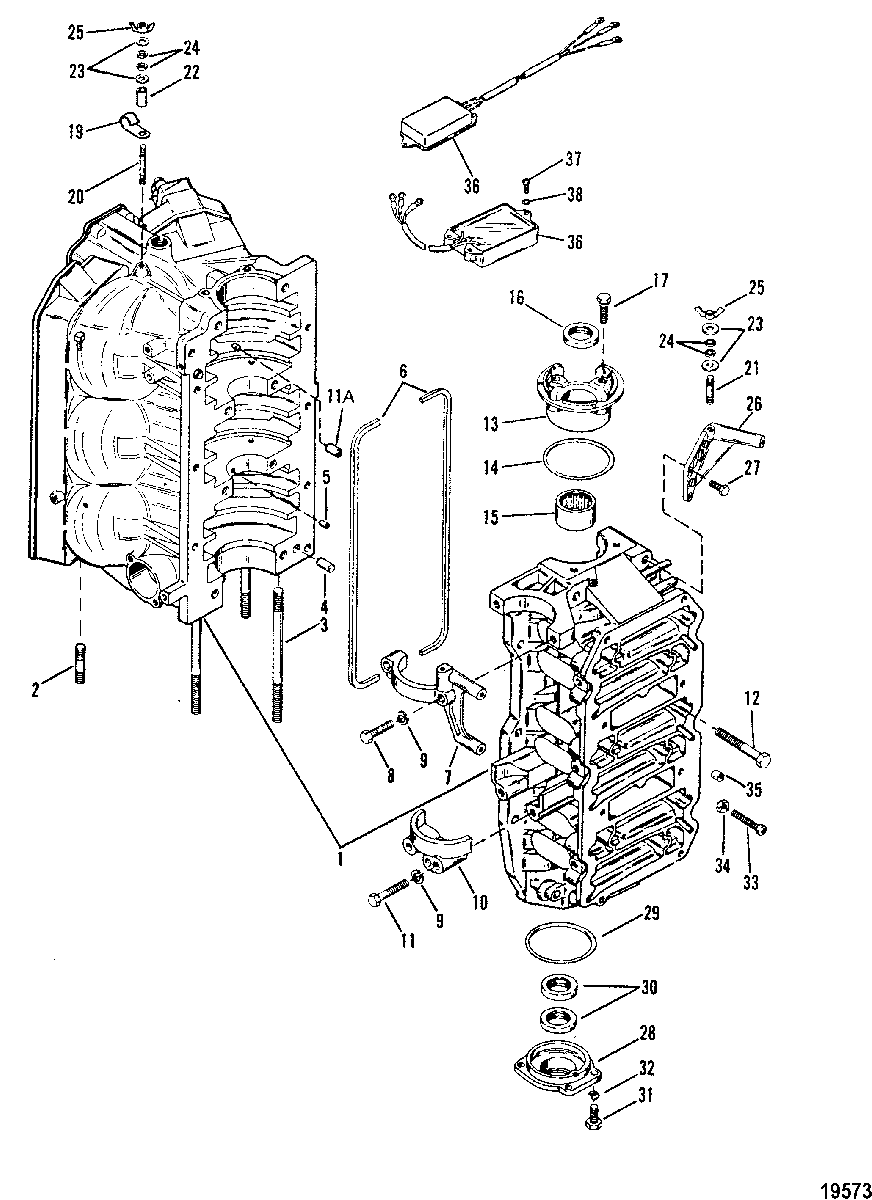

Cylinder Block and End Caps для Mariner - V-150 0C239553 THRU 0D081999
-
№АртикулНазвание
-
1884-859211T2 CYLINDER BLOCK (135/150)CYLINDER BLOCK (135/150)
-
1884-9764T13 CYLINDER BLOCK (XR4/MAGNUM II)CYLINDER BLOCK (XR4/MAGNUM II)
-
1884-9764T12 CYLINDER BLOCK (175)CYLINDER BLOCK (175)
-
1884-9763T6 CYLINDER BLOCK (200)CYLINDER BLOCK (200)
-
216-76175 STUD, POWERHEAD (1-7/8")STUD, POWERHEAD (1-7/8")
-
216-8M0034455 STUD, POWERHEAD (1-3/4")STUD, POWERHEAD (1-3/4")
-
316-670654 STUD, POWERHEAD (5-1/2")STUD, POWERHEAD (5-1/2")
-
316-8M0034454 STUD, POWERHEAD (6-3/4")STUD, POWERHEAD (6-3/4")
-
417-43044 PIN, Dowel, LOCATINGPIN, Dowel, LOCATING
-
517-8M0036405 PIN (BEARING RACE)PIN (BEARING RACE)
-
627-11338 GASKET, SEALINGGASKET, SEALING
-
78M0088723 COVER, STARTER MOTOR (UPPER)COVER, STARTER MOTOR (UPPER)
-
810-73657 SCREW, (.312-18 x 1.50)SCREW, (.312-18 x 1.50)
-
913-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
1076867 COVER (LOWER)COVER (LOWER)
-
1110-815549 SCREW, (.312-18 x 2)SCREW, (.312-18 x 2)
-
11A23-99448 BUSHINGBUSHING
-
1210-66717 SCREW, (.375-16 x 3.250)SCREW, (.375-16 x 3.250)
-
1210-74824 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
131159-858521T1 UPPER END CAP ASSEMBLY, UPPERUPPER END CAP ASSEMBLY, UPPER
-
1425-54029 O-RINGO-RING
-
1531-16756A4 ROLLER BEARINGROLLER BEARING
-
1626-41953 SEALSEAL
-
1710-30225 SCREW WITH LOCKWASHER, (.312-18 x 1.00)SCREW WITH LOCKWASHER, (.312-18 x 1.00)
-
1954-63153 J CLIPJ CLIP
-
2016-15094 STUD, (.190-32 x 1.870)STUD, (.190-32 x 1.870)
-
2116-8M0034435 STUD, (#10-32 x 1.00)STUD, (#10-32 x 1.00)
-
2223-67269 SPACER, FLYWHEEL COVER STUDSPACER, FLYWHEEL COVER STUD
-
2312-49221 WASHER, FLYWHEEL COVER STUDWASHER, FLYWHEEL COVER STUD
-
2412-72761 WASHER, FLYWHEEL COVER STUDWASHER, FLYWHEEL COVER STUD
-
2511-816874 WING NUT, (#10-32), FLYWHEEL COVER STUDWING NUT, (#10-32), FLYWHEEL COVER STUD
-
26422482 BRACKET, FLYWHEEL COVERBRACKET, FLYWHEEL COVER
-
2710-49668 SCREW, (.250-20 x .750), BRACKET TO CRANKCASESCREW, (.250-20 x .750), BRACKET TO CRANKCASE
-
281156-7809T1 END CAP ASSEMBLY, LOWEREND CAP ASSEMBLY, LOWER
-
2925-62700 O-RING, (3.250 Inside Diameter), END CAPO-RING, (3.250 Inside Diameter), END CAP
-
3026-41953 SEAL, END CAPSEAL, END CAP
-
3110-28636 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
3213-26992 LOCKWASHER, (.250), LOWER END CAP SCREWLOCKWASHER, (.250), LOWER END CAP SCREW
-
3310-64022 SCREW, (.250-20 x 2.125), ADJUSTING - CYLINDER BLOCKSCREW, (.250-20 x 2.125), ADJUSTING - CYLINDER BLOCK
-
3411-64015 NUT, ( #8-32), JAM - ADJUSTING SCREWNUT, ( #8-32), JAM - ADJUSTING SCREW
-
3526852 CAP, NYLON - ADJUSTING SCREWCAP, NYLON - ADJUSTING SCREW
-
3687076A10 IDLE SPEED CONTROL ASSEMBLY
SN# 0C254932 & UpIDLE SPEED CONTROL ASSEMBLY
SN# 0C254932 & Up -
3693772A11 ADVANCED MODULE
SN# 0C247591 THRU 0C254931ADVANCED MODULE
SN# 0C247591 THRU 0C254931 -
3710-690201 SCREW, (#10-32 x .875)SCREW, (#10-32 x .875)
-
3812-38833 WASHERWASHER
-
-812815R97 POWERHEAD (135/150)POWERHEAD (135/150)
-
-815908T90 POWERHEAD (XR4/MAGNUM II)POWERHEAD (XR4/MAGNUM II)
-
-812817T90 POWERHEAD (175)POWERHEAD (175)
-
-812827T91 POWERHEAD (200)POWERHEAD (200)
-
-27-815791A92 GASKET SET
(135/150)GASKET SET
(135/150) -
-27-815791A92 GASKET SET
(XR4/Magnum II/175)GASKET SET
(XR4/Magnum II/175) -
-27-815791A92 GASKET SET
(200)GASKET SET
(200)
