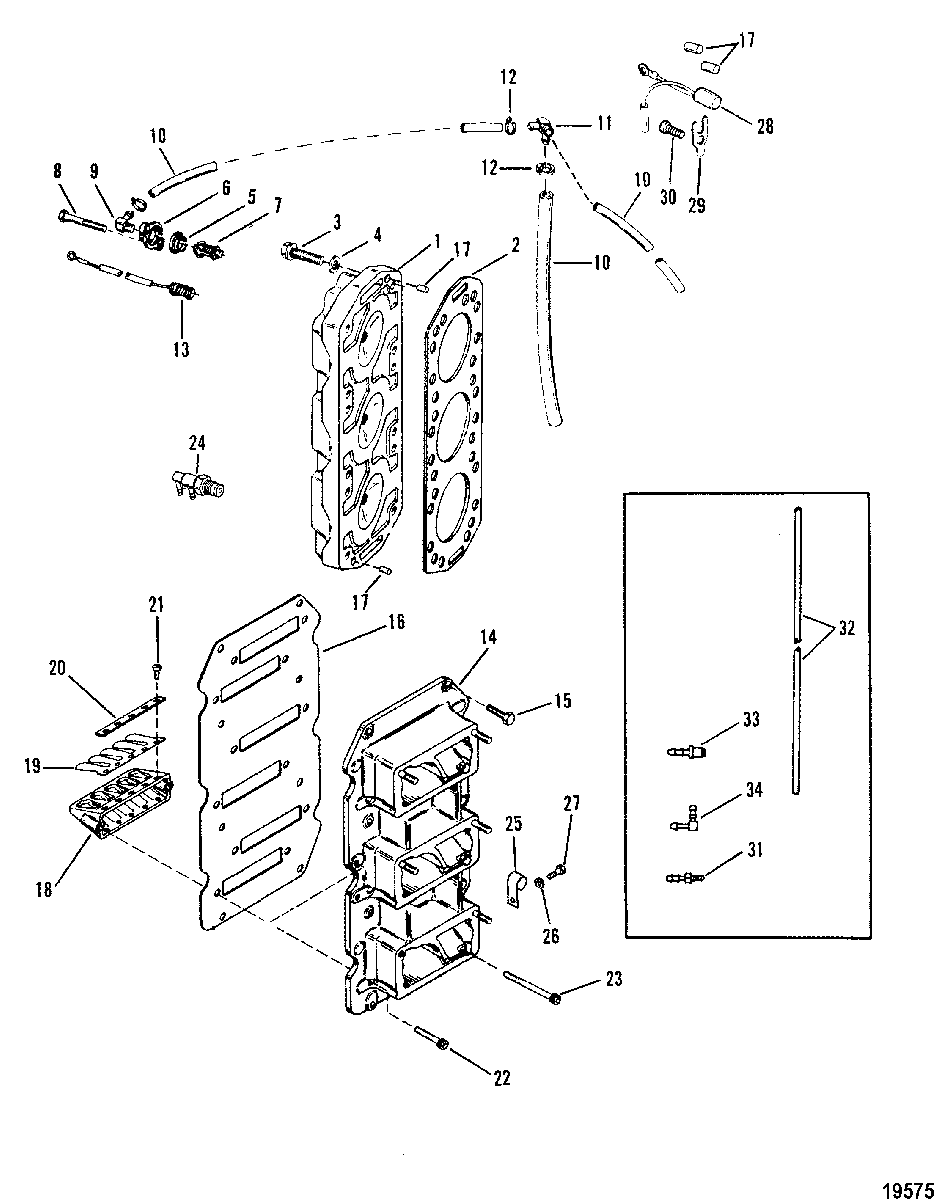

Reed Block and Cylinder Head для Mariner - V-150 0C239553 THRU 0D081999
-
№АртикулНазвание
-
118787A18 CYLINDER HEAD
(135/150)CYLINDER HEAD
(135/150) -
118789F1 CYLINDER HEAD
(XR4/MAGNUM II/175)CYLINDER HEAD
(XR4/MAGNUM II/175) -
118488F2 CYLINDER HEAD
(200)CYLINDER HEAD
(200) -
227-18785T GASKET
(135/150)(Component of Powerhead)(Head Gasket not included in Engine Gasket Set)GASKET
(135/150)(Component of Powerhead)(Head Gasket not included in Engine Gasket Set) -
227-18786T GASKET
(XR4/MAGNUM II/175)(Component of Powerhead)(Head Gasket not included in Engine Gasket Set)GASKET
(XR4/MAGNUM II/175)(Component of Powerhead)(Head Gasket not included in Engine Gasket Set) -
227-822844T05 GASKET
(20)(Component of Powerhead)(Head Gasket not included in Engine Gasket Set)GASKET
(20)(Component of Powerhead)(Head Gasket not included in Engine Gasket Set) -
310-98534 SCREW, (.375-16 X 2.30)SCREW, (.375-16 X 2.30)
-
412-25909 WASHER, (.406 x .812 x .065)WASHER, (.406 x .812 x .065)
-
527-62386001 GASKETGASKET
-
690390A1 COVER KITCOVER KIT
-
775692 THERMOSTATTHERMOSTAT
-
810-35386 SCREW, (.312-18 x 1.00)SCREW, (.312-18 x 1.00)
-
922-687271 FITTING, (.250-18 Brass)FITTING, (.250-18 Brass)
-
1032-77653101 HOSE, (24.500 Inches Bulk)HOSE, (24.500 Inches Bulk)
-
1122-68728 FITTINGFITTING
-
1254-816311T CABLE TIE, (8.00 Inches)CABLE TIE, (8.00 Inches)
-
1397465 TEMPERATURE SENDER (STBD.)TEMPERATURE SENDER (STBD.)
-
1443517A9 ADAPTOR PLATE (135/150/XR4/MAGNUM II/175)ADAPTOR PLATE (135/150/XR4/MAGNUM II/175)
-
1487628A7 ADAPTOR PLATE (200)ADAPTOR PLATE (200)
-
1510-28668 SCREW, (.250-20 x .875)SCREW, (.250-20 x .875)
-
1627-146972 GASKET (135/150/XR4/MAGNUM II/175)GASKET (135/150/XR4/MAGNUM II/175)
-
1627-883775 GASKET (200)GASKET (200)
-
1717-63779 PIN, Dowel (3/4")PIN, Dowel (3/4")
-
1717-63779 PIN, Dowel (.250 x .625)PIN, Dowel (.250 x .625)
-
1875953 REED BLOCK
(135/150/MAGNUM II/175)REED BLOCK
(135/150/MAGNUM II/175) -
1887692 REED BLOCK
(200)REED BLOCK
(200) -
1934-75362A1 REED ASSEMBLY
(135/150/MAGNUM II/175)REED ASSEMBLY
(135/150/MAGNUM II/175) -
1934-19719A1 REED ASSEMBLY
(200)REED ASSEMBLY
(200) -
20961832 REED CLAMP
(135/150/MAGNUM II/175)REED CLAMP
(135/150/MAGNUM II/175) -
20903911 REED CLAMP
(200)REED CLAMP
(200) -
2110-823588 SCREW, (8-32 x .187) (QTY. OF 84 ON 200)SCREW, (8-32 x .187) (QTY. OF 84 ON 200)
-
2210-92160 SCREW, (.250-20 x .75)
(135/150/MAGNUM II)SCREW, (.250-20 x .75)
(135/150/MAGNUM II) -
2310-96529 SCREW, (.250-20 x 2.00)
(135/150/MAGNUM II)SCREW, (.250-20 x 2.00)
(135/150/MAGNUM II) -
22/2310-28668 SCREW, (.250-20 x .875)
(200)SCREW, (.250-20 x .875)
(200) -
24814612 THERMAL AIR VALVETHERMAL AIR VALVE
-
2554-23567 CLIP (9/16")CLIP (9/16")
-
2554-26404 CLAMP (1")CLAMP (1")
-
268M0084613 C WASHERC WASHER
-
2710-69079 SCREW, (#10-16 x .440)SCREW, (#10-16 x .440)
-
2813536A7 TEMPERATURE SENSOR (PORT)TEMPERATURE SENSOR (PORT)
-
29137151 RETAINERRETAINER
-
3010-98257 SCREW, (.312-18 x .500)SCREW, (.312-18 x .500)
-
3122-56759 FITTING, Press-InFITTING, Press-In
-
3232-892024122 TUBING, (20.00 Feet Bulk)TUBING, (20.00 Feet Bulk)
-
3321-426982 CHECK VALVE (PRESS-IN 13/16")CHECK VALVE (PRESS-IN 13/16")
-
3321-426233 CHECK VALVE (PRESS-IN 11/16")CHECK VALVE (PRESS-IN 11/16")
-
3422-15133 FITTING (PRESS-IN)FITTING (PRESS-IN)
-
-27-815791A92 GASKET SET
(135/150)GASKET SET
(135/150) -
-27-815791A92 GASKET SET
(XR4/Magnum II/175)GASKET SET
(XR4/Magnum II/175) -
-27-815791A92 GASKET SET
(200)GASKET SET
(200)
