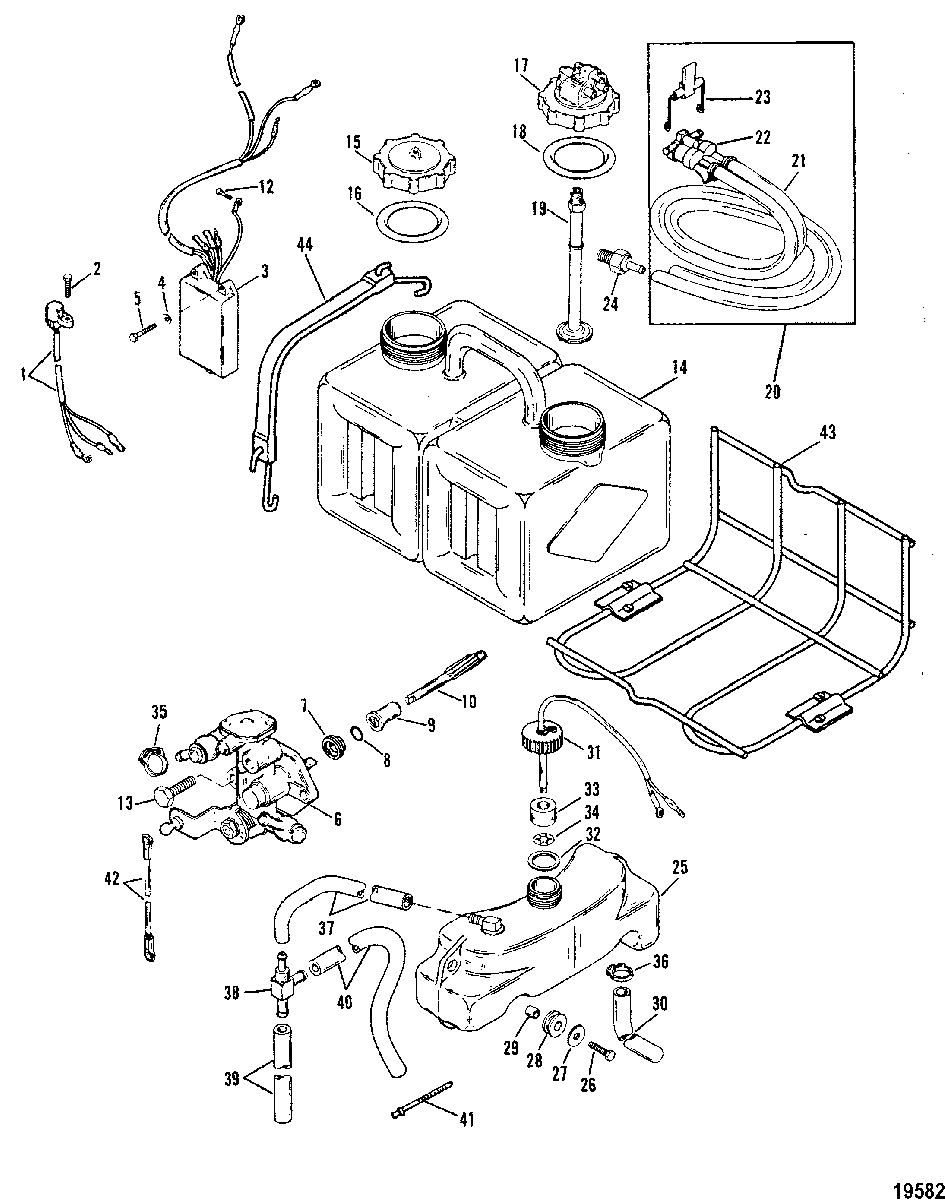

Oil Injection Components для Mariner - V-150 0C239553 THRU 0D081999
-
№АртикулНазвание
-
112430A4 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
210-48409 SCREW, (#10-16 x .625), SENSOR ATTACHINGSCREW, (#10-16 x .625), SENSOR ATTACHING
-
341470A26 WARNING MODULE ASSEMBLYWARNING MODULE ASSEMBLY
-
412-38833 WASHER, WARNING MODULE SCREWWASHER, WARNING MODULE SCREW
-
510-690201 SCREW, (#10-32 x .875)SCREW, (#10-32 x .875)
-
6815698T OIL PUMP (135/150/XR4/MAGNUM II/175)OIL PUMP (135/150/XR4/MAGNUM II/175)
-
6815699T OIL PUMP ASSEMBLY (200)OIL PUMP ASSEMBLY (200)
-
78141032 BUSHING, WormBUSHING, Worm
-
825-11379 O-RINGO-RING
-
923-41429A2 BEARING ASSEMBLY, DRIVE GEARBEARING ASSEMBLY, DRIVE GEAR
-
1043-14563 DRIVEN GEARDRIVEN GEAR
-
1210-42813 SCREW, WARNING MODULE LEADSCREW, WARNING MODULE LEAD
-
1310-32228 SCREW, (#10-32 x .625)SCREW, (#10-32 x .625)
-
1310-41507 SCREW, (#10-32 x 1.120)SCREW, (#10-32 x 1.120)
-
141257-87421 TANKTANK
-
1536-43298A2 CAP ASSEMBLY, OIL TANKCAP ASSEMBLY, OIL TANK
-
1625-11332 O-RING, CAPO-RING, CAP
-
17816190A4 ADAPTOR HOUSING ASSEMBLY
(Old Design)ADAPTOR HOUSING ASSEMBLY
(Old Design) -
17816190A4 HOUSING ASSEMBLY, Adapter
(New Design)HOUSING ASSEMBLY, Adapter
(New Design) -
1825-11332 O-RING, ADAPTOR HOUSINGO-RING, ADAPTOR HOUSING
-
1932-99802 TUBE, OIL PICK-UPTUBE, OIL PICK-UP
-
20NLA No Longer Available, Quick Disconnect Kit (Order parts Separately)No Longer Available, Quick Disconnect Kit (Order parts Separately)
-
2132-99439 HOSE, (114.00 Inches), OIL
(Old Design)HOSE, (114.00 Inches), OIL
(Old Design) -
2132-99439 HOSE, (114.00 Inches)
(New Design)HOSE, (114.00 Inches)
(New Design) -
2212540A3 HOUSING
(Old Design)HOUSING
(Old Design) -
2312242A1 LATCH
(Old Design)LATCH
(Old Design) -
2421-8781051 FITTING, CHECK VALVE (CRANKCASE)FITTING, CHECK VALVE (CRANKCASE)
-
25994436 OIL RESERVOIROIL RESERVOIR
-
2610-690201 SCREW, (#10-32 x .875), OIL RESERVOIR ATTACHINGSCREW, (#10-32 x .875), OIL RESERVOIR ATTACHING
-
2712-42118 WASHER, OIL RESERVOIR SCREWWASHER, OIL RESERVOIR SCREW
-
2825-42117 GROMMET, OIL RESERVOIR SCREWGROMMET, OIL RESERVOIR SCREW
-
2923-42116 BUSHING, OIL RESERVOIR SCREWBUSHING, OIL RESERVOIR SCREW
-
3032-82381455 TUBING, OIL RESERVOIR TO OIL PUMP (5-1/4")TUBING, OIL RESERVOIR TO OIL PUMP (5-1/4")
-
3136-43300A9 CAP ASSEMBLY, OIL RESERVOIRCAP ASSEMBLY, OIL RESERVOIR
-
3227-43307T GASKET, RESERVOIR CAPGASKET, RESERVOIR CAP
-
3399022A1 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
3411-99265 PUSHNUTPUSHNUT
-
3554-415824 CLAMP, OIL HOSECLAMP, OIL HOSE
-
3654-415823 CLAMP, OIL HOSECLAMP, OIL HOSE
-
3732-8M0108355 FUEL LINE, (57.00 Inches Bulk), OILFUEL LINE, (57.00 Inches Bulk), OIL
-
3822-42425 TEE, OIL TUBINGTEE, OIL TUBING
-
3932-9072925 HOSE, OIL (6-3/4")HOSE, OIL (6-3/4")
-
4032-8M0108355 FUEL LINE, (57.00 Inches Bulk)FUEL LINE, (57.00 Inches Bulk)
-
4154-816311T CABLE TIE, (8.00 Inches)CABLE TIE, (8.00 Inches)
-
421938516 LINK, THROTTLE LEVER TO OIL PUMPLINK, THROTTLE LEVER TO OIL PUMP
-
4312335A1 BRACKET KITBRACKET KIT
-
4412323A1 CORD/HOOK KITCORD/HOOK KIT
