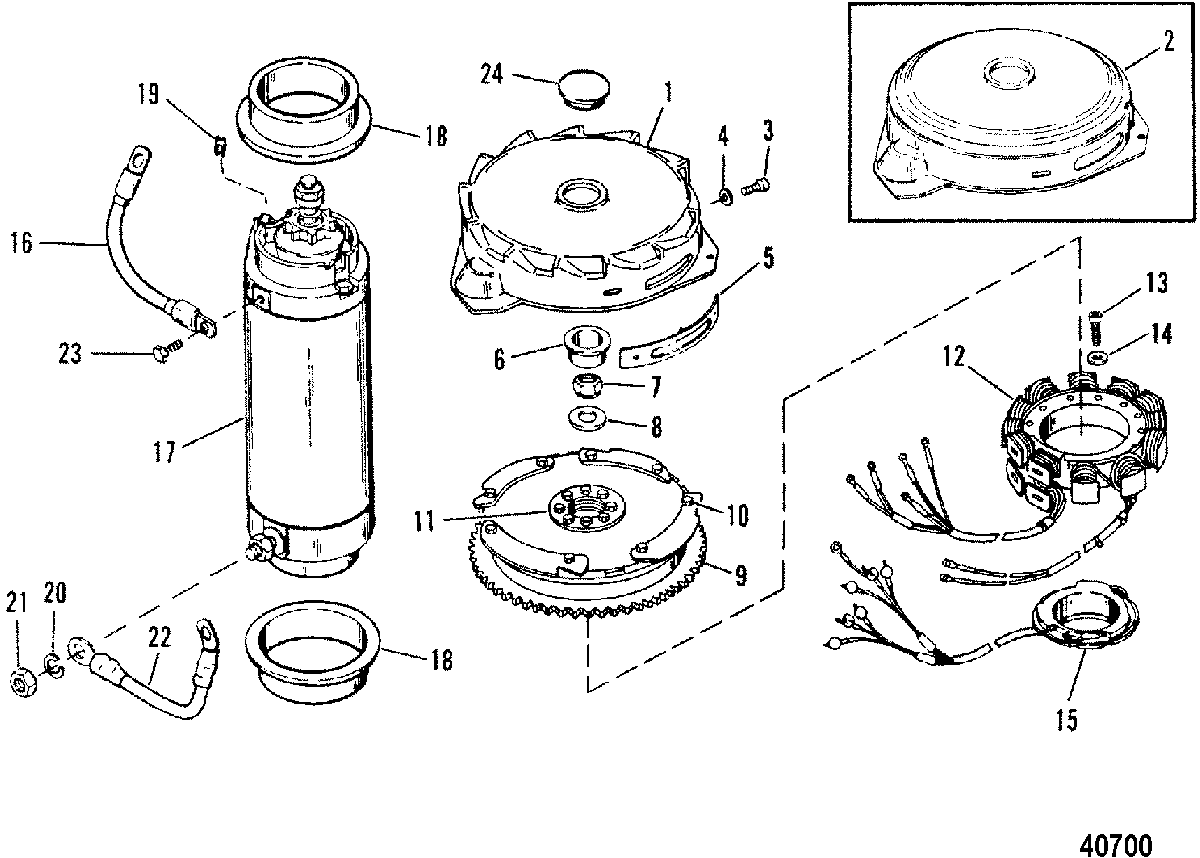

FLYWHEEL/STARTER MOTOR для Mariner - V-200 0C100861 THRU 0C291519
-
№АртикулНазвание
-
118896A1 COVER KIT, FLYWHEEL (LOUVERED)COVER KIT, FLYWHEEL (LOUVERED)
-
279918A1 COVER KIT, FLYWHEEL (NON-LOUVERED)COVER KIT, FLYWHEEL (NON-LOUVERED)
-
310-37572 SCREW, (.190-32 x .380), TIMING MARKERSCREW, (.190-32 x .380), TIMING MARKER
-
412-72761 WASHER, (.203 x .562 x .060) Stainless Steel, TIMING MARKER SCREWWASHER, (.203 x .562 x .060) Stainless Steel, TIMING MARKER SCREW
-
579022 MARKER, TIMINGMARKER, TIMING
-
619-45907 PLUG, Yellow, FLYWHEELPLUG, Yellow, FLYWHEEL
-
711-52901 NUT, (.625-18), FLYWHEELNUT, (.625-18), FLYWHEEL
-
812-33001 WASHER, (.641 x 1.250 x .190), FLYWHEELWASHER, (.641 x 1.250 x .190), FLYWHEEL
-
9271-859238T16 FLYWHEEL
Use with Louvered CoverFLYWHEEL
Use with Louvered Cover -
9271-859238A9 FLYWHEEL
Use with Non-Louvered CoverFLYWHEEL
Use with Non-Louvered Cover -
1010-32417 SCREW, (.250-28 x .625), FLYWHEEL PLATESCREW, (.250-28 x .625), FLYWHEEL PLATE
-
1110-68997 SCREW, (.312-24 x .750), FLYWHEEL HUBSCREW, (.312-24 x .750), FLYWHEEL HUB
-
12398-9610A5 STATOR
Use with Louvered CoverSTATOR
Use with Louvered Cover -
12398-5454A35 STATOR
Use with Non-Louvered CoverSTATOR
Use with Non-Louvered Cover -
1310-90045 SCREW, (#10-32 x 1.375)
Use with Louvered CoverSCREW, (#10-32 x 1.375)
Use with Louvered Cover -
1310-19926100 SCREW, (#10-24 x 1.00)
Use with Non-Louvered CoverSCREW, (#10-24 x 1.00)
Use with Non-Louvered Cover -
1413-26996 LOCKWASHER, (#10) Stainless Steel
Use with Louvered CoverLOCKWASHER, (#10) Stainless Steel
Use with Louvered Cover -
1596455A9 PLATE ASSEMBLY, TriggerPLATE ASSEMBLY, Trigger
-
1684-93388A1 CABLE ASSEMBLY, (6.00 Inches) Black, PLATE TO STARTER MOTORCABLE ASSEMBLY, (6.00 Inches) Black, PLATE TO STARTER MOTOR
-
1750-893893 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
1823-8M0034918 COLLAR, STARTER MOTORCOLLAR, STARTER MOTOR
-
198M0043376 STOP, Rubber, STARTER MOTORSTOP, Rubber, STARTER MOTOR
-
2013-26992 LOCKWASHER, (.250) Stainless Steel, STARTER MOTOR TERMINALLOCKWASHER, (.250) Stainless Steel, STARTER MOTOR TERMINAL
-
2111-20890 NUT, (.250-20), STARTER MOTOR TERMINALNUT, (.250-20), STARTER MOTOR TERMINAL
-
2284-93388A14 CABLE ASSEMBLY, Black, SOLENOID TO STARTER MOTORCABLE ASSEMBLY, Black, SOLENOID TO STARTER MOTOR
-
2310-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel, CABLE TO STARTER MOTORSCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel, CABLE TO STARTER MOTOR
-
2419-89219001 PLUG, FLYWHEEL COVERPLUG, FLYWHEEL COVER
