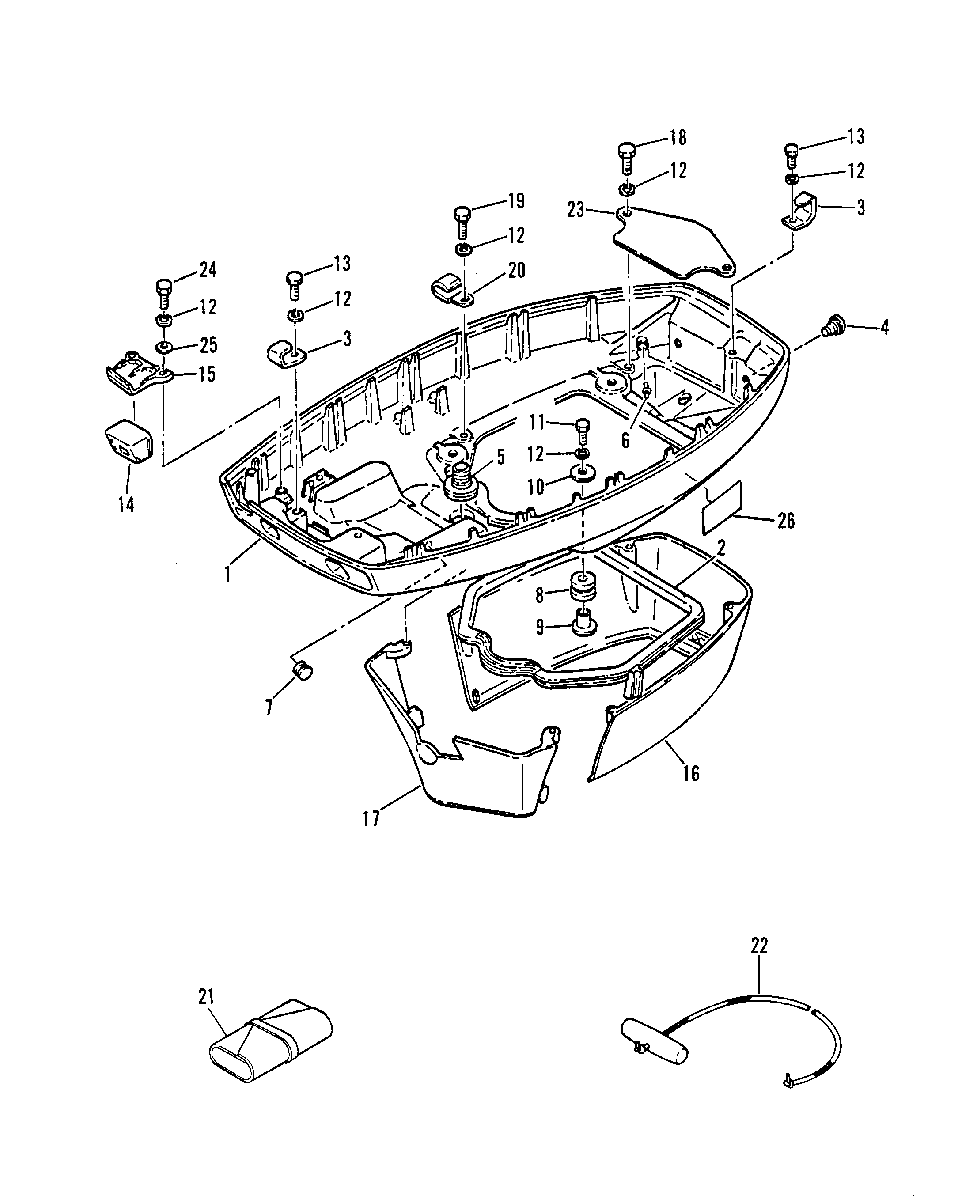

BOTTOM COWLING для Mariner - W-48 670-311996 THRU 334240
-
№АртикулНазвание
-
12168-7980M COWLING, BOTTOMCOWLING, BOTTOM
-
227-83044M SEAL, BOTTOM COWL TO APRONSEAL, BOTTOM COWL TO APRON
-
383045M STAYSTAY
-
425-83142M GROMMETGROMMET
-
525-81369M GROMMETGROMMET
-
622-81326M FITTINGFITTING
-
725-82061M GROMMETGROMMET
-
825-93101M GROMMETGROMMET
-
923-83610M COLLARCOLLAR
-
1012-81796M WASHERWASHER
-
1110-83285M BOLTBOLT
-
1213-82212M WASHER, LOCKWASHER, LOCK
-
1310-84211M BOLTBOLT
-
1481371M BUMPER, COWLBUMPER, COWL
-
1583153M RETAINER, COWL BUMPERRETAINER, COWL BUMPER
-
1695664M APRON, COWL-REARAPRON, COWL-REAR
-
1795665M APRON, COWL-FRONTAPRON, COWL-FRONT
-
1810-84058M BOLTBOLT
-
1910-82405M BOLTBOLT
-
2054-82041M CLAMPCLAMP
-
2191-803581 TOOL KIT (OPTIONAL)TOOL KIT (OPTIONAL)
-
2247341A11 STARTER ROPE, EMERGENCYSTARTER ROPE, EMERGENCY
-
2383047M COVER, BOTTOMCOVER, BOTTOM
-
2410-826957M BOLTBOLT
-
2512-82214M WASHERWASHER
-
2637-97099M DECALDECAL
