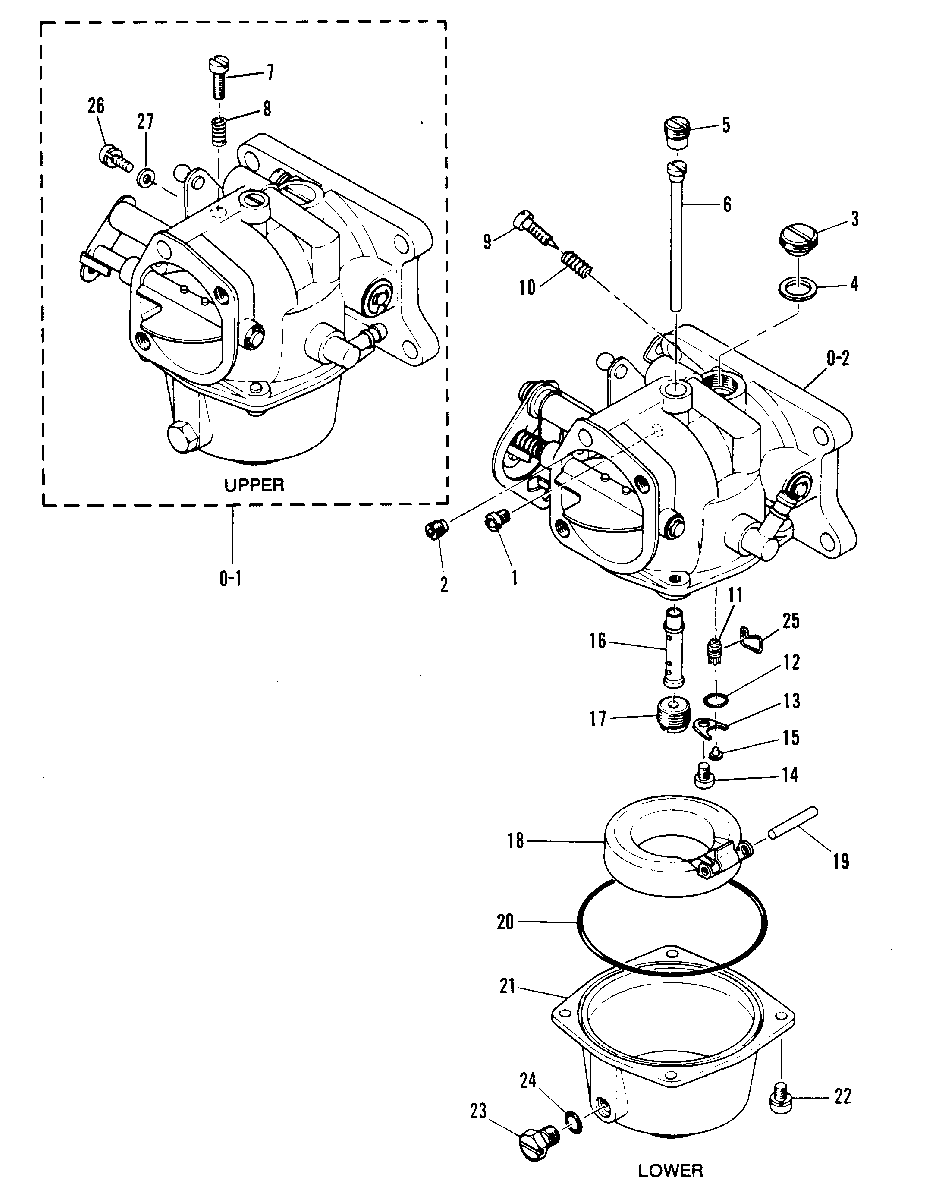

CARBURETOR для Mariner - W-48 670-311996 THRU 334240
-
№АртикулНазвание
-
0-11383-7976M CARBURETOR ASS'Y (UPPER)CARBURETOR ASS'Y (UPPER)
-
0-21383-7977M CARBURETOR ASS'Y (LOWER)CARBURETOR ASS'Y (LOWER)
-
181289M JET, PILOT AIR (#105)JET, PILOT AIR (#105)
-
292678M JET, MAIN AIR (#135)JET, MAIN AIR (#135)
-
310-81292M SCREW, PLUGSCREW, PLUG
-
412-92636M WASHERWASHER
-
510-97080M SCREW, PLUG
SERIAL 00004321-09999999SCREW, PLUG
SERIAL 00004321-09999999 -
510-81279M SCREW, PLUG
SERIAL 00000000-00004320SCREW, PLUG
SERIAL 00000000-00004320 -
681282M JET, PILOT (#92)JET, PILOT (#92)
-
710-81277M SCREW, THROTTLE (UPPER)SCREW, THROTTLE (UPPER)
-
824-82080M SPRING, COMPRESSION (UPPER)SPRING, COMPRESSION (UPPER)
-
910-81281M SCREW, IDLE SPEEDSCREW, IDLE SPEED
-
1024-82073M SPRING, COMPRESSIONSPRING, COMPRESSION
-
1182780M VALVE SEAT ASS'YVALVE SEAT ASS'Y
-
1225-82261M O-RING, VALVEO-RING, VALVE
-
1380026M RETAINER, VALVE SEATRETAINER, VALVE SEAT
-
1410-82499M SCREWSCREW
-
1517-92639M PIN, VALVEPIN, VALVE
-
1681287M NOZZLE, MAINNOZZLE, MAIN
-
1792637M JET, MAIN (#165)JET, MAIN (#165)
-
1897848M FLOATFLOAT
-
1917-81278M PIN, FLOATPIN, FLOAT
-
2025-82288M O-RINGO-RING
-
2181290M BOWL, FLOATBOWL, FLOAT
-
2210-81758M SCREW W/WASHERSCREW W/WASHER
-
2310-81293M SCREW, DRAINSCREW, DRAIN
-
2425-81695M O-RINGO-RING
-
2554-8M0120624 CLIPCLIP
-
2610-97082M SCREW W/WASHER (UPPER)
SERIAL 00002731-09999999SCREW W/WASHER (UPPER)
SERIAL 00002731-09999999 -
2610-83371M SCREW W/WASHER (UPPER)
SERIAL 00000000-00002730SCREW W/WASHER (UPPER)
SERIAL 00000000-00002730 -
2712-83372M WASHER (UPPER)WASHER (UPPER)
-
2784419M REPAIR KIT, CARBURETOR
REPLACEMENT PARTSREPAIR KIT, CARBURETOR
REPLACEMENT PARTS
