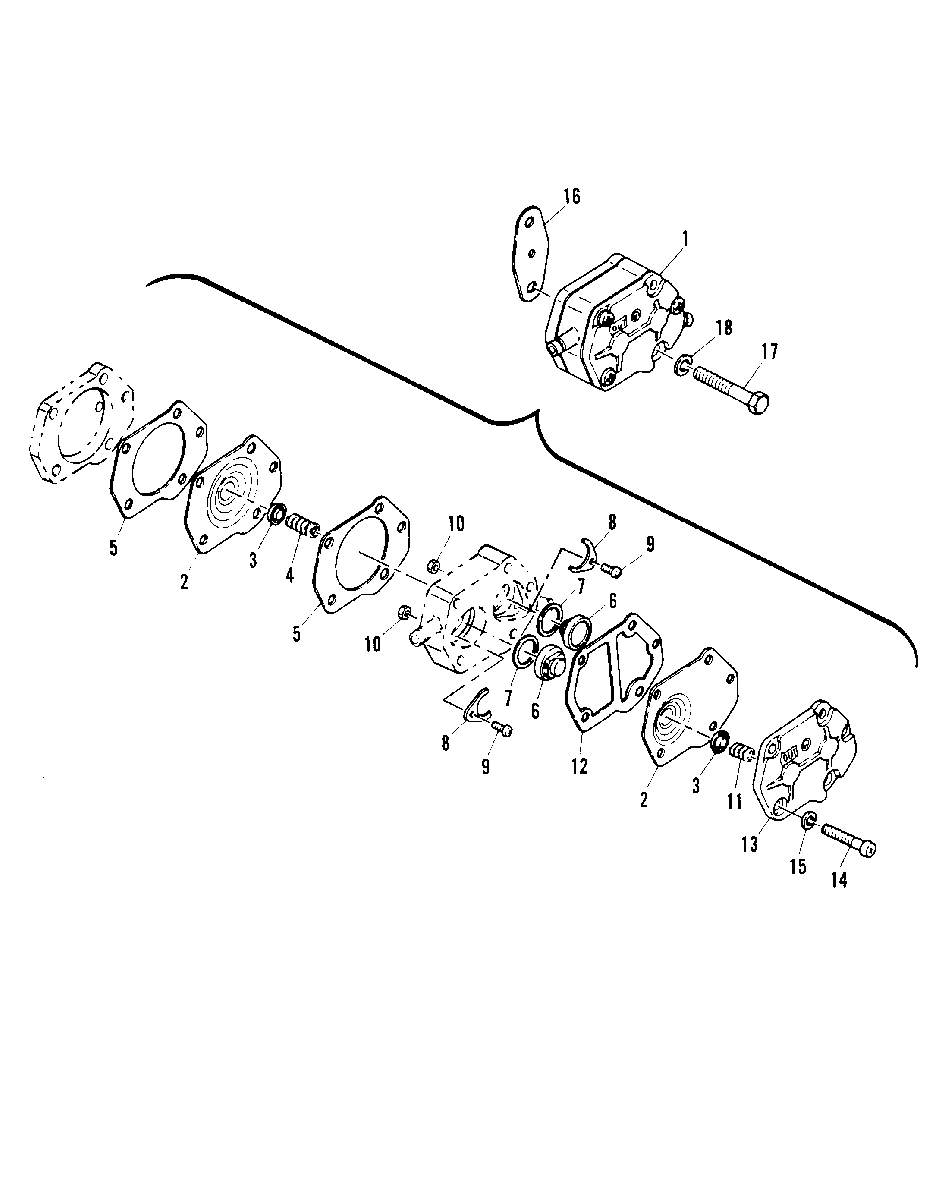

FUEL PUMP для Mariner - W-48 670-311996 THRU 334240
-
№АртикулНазвание
-
143113T FUEL PUMP ASS'YFUEL PUMP ASS'Y
-
280606M DIAPHRAGMDIAPHRAGM
-
380611M PLATE, SPRING GUIDEPLATE, SPRING GUIDE
-
424-80610M SPRINGSPRING
-
527-80613 GASKET, BODY TO BASEGASKET, BODY TO BASE
-
621-80608M CHECK VALVECHECK VALVE
-
727-80612M GASKET, CHECK VALVEGASKET, CHECK VALVE
-
880609M RETAINER, CHECK VALVERETAINER, CHECK VALVE
-
910-82511M SCREWSCREW
-
1011-84515M NUTNUT
-
1124-80615M SPRINGSPRING
-
1227-80614 GASKET, BODY TO COVERGASKET, BODY TO COVER
-
1380607M COVERCOVER
-
1410-82522M SCREWSCREW
-
1513-82186M WASHER, LOCKWASHER, LOCK
-
1627-80757 GASKET, FUEL PUMP TO CRANKCASEGASKET, FUEL PUMP TO CRANKCASE
-
1710-827043M BOLTBOLT
-
1812-82213M WASHERWASHER
