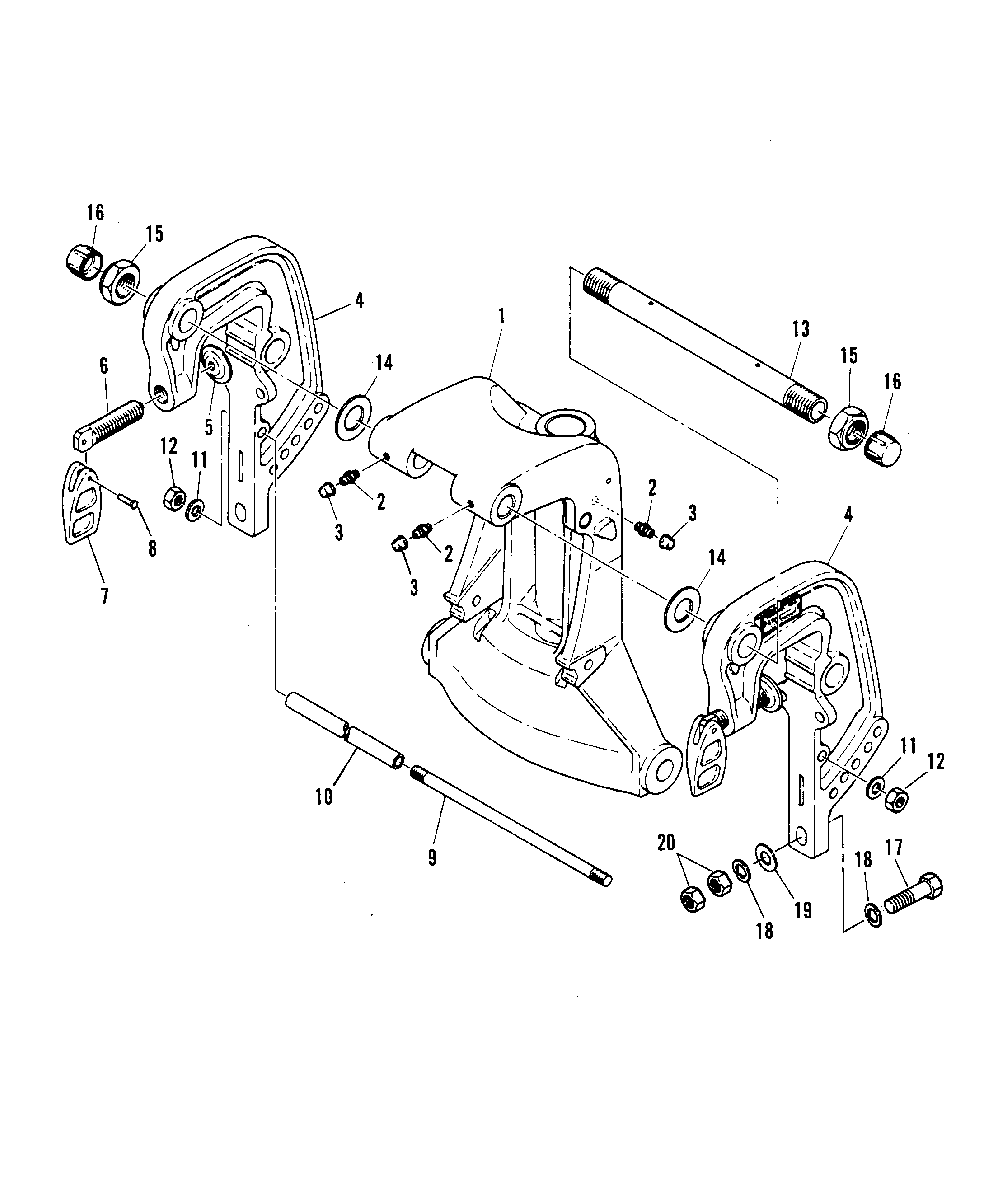

CLAMP AND SWIVEL BRACKET для Mariner - W-48 670-311996 THRU 334240
-
№АртикулНазвание
-
11485-6840M SWIVEL BRACKET (M)SWIVEL BRACKET (M)
-
11485-6841M SWIVEL BRACKET (ML)SWIVEL BRACKET (ML)
-
222-82369M FITTING, GREASEFITTING, GREASE
-
381439M CAP, GREASE FITTINGCAP, GREASE FITTING
-
41484-6839M CLAMP BRACKETCLAMP BRACKET
-
512-80638M PAD, TRANSOM CLAMP SCREWPAD, TRANSOM CLAMP SCREW
-
610-92649M SCREW, TRANSOM CLAMPSCREW, TRANSOM CLAMP
-
711868M HANDLE, TRANSOM CLAMP SCREWHANDLE, TRANSOM CLAMP SCREW
-
817-81889M PINPIN
-
916-81383M STUD, CLAMP BRACKETSTUD, CLAMP BRACKET
-
1023-81981M SPACER, CLAMP BRACKET STUDSPACER, CLAMP BRACKET STUD
-
1212-82220M NUTNUT
-
1310-41312M STUD, CLAMP BRACKETSTUD, CLAMP BRACKET
-
1412-81836M WASHERWASHER
-
1511-879172252 NUTNUT
-
16811914M CAP, CLAMP BRACKET STUDCAP, CLAMP BRACKET STUD
-
1710-84970M BOLTBOLT
-
1812-82220M WASHERWASHER
-
1912-81812M WASHERWASHER
-
2011-82395M NUTNUT
