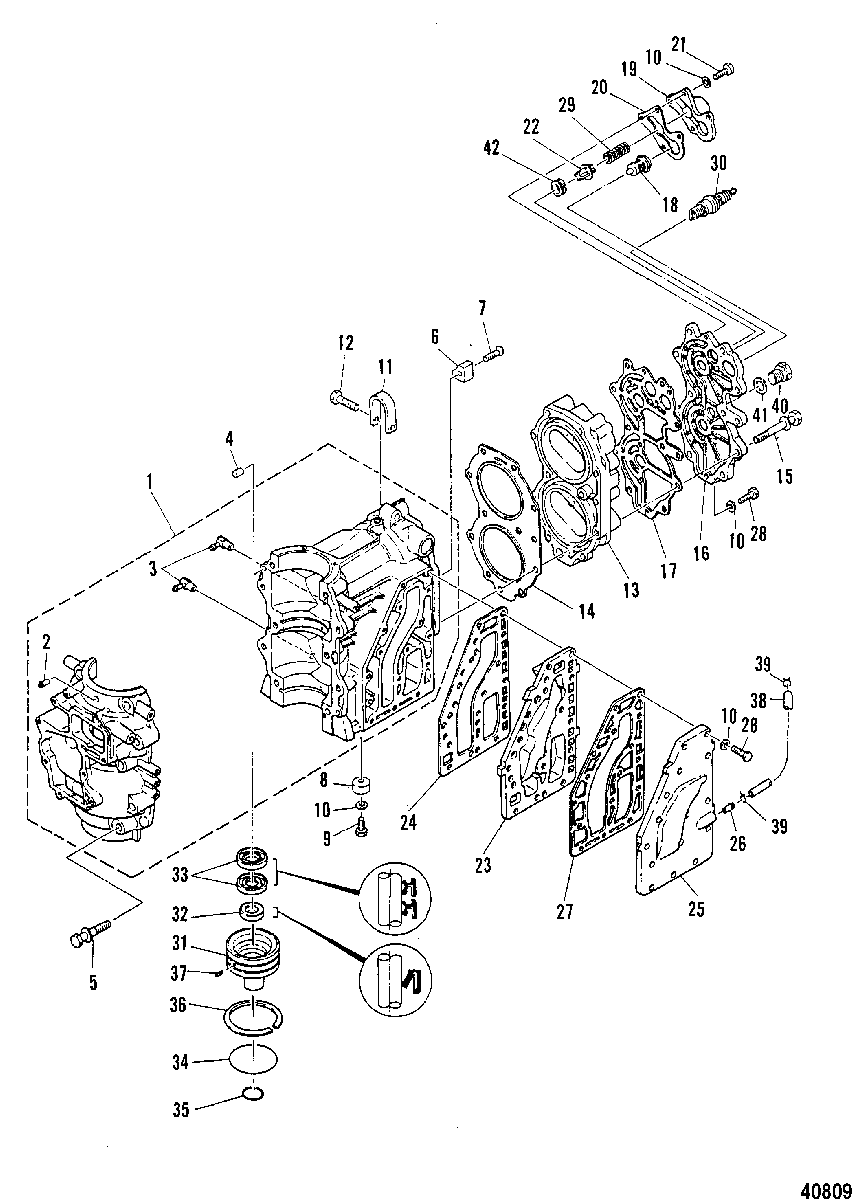

CRANKCASE AND CYLINDER HEAD для Mariner - W40 (W/MARATHON) 6F6-005206 & Up
-
№АртикулНазвание
-
1870-9324T CRANKCASE ASSEMBLYCRANKCASE ASSEMBLY
-
222-80122M FITTINGFITTING
-
321-80727M CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
417-82368M PINPIN
-
510-41838M BOLTBOLT
-
683330M ANODEANODE
-
710-82168M SCREWSCREW
-
897-83394M ANODEANODE
-
910-826957M BOLTBOLT
-
1012-82214M WASHERWASHER
-
1111744M BRACKETBRACKET
-
1210-82442M BOLTBOLT
-
13968-9326M CYLINDER HEADCYLINDER HEAD
-
1427-11745 GASKETGASKET
-
1510-11746M BOLTBOLT
-
1611748M COVERCOVER
-
1727-11750M GASKETGASKET
-
18814554T01 THERMOSTATTHERMOSTAT
-
1997705M COVERCOVER
-
2027-814555 GASKET
SN# M-029925/ML-365386 & UpGASKET
SN# M-029925/ML-365386 & Up -
2027-814555 GASKET
SN# M-029924/ML-365385 & BelowGASKET
SN# M-029924/ML-365385 & Below -
2110-83285M BOLTBOLT
-
2281267M VALVEVALVE
-
2311753M COVER, Exhaust (INNER)COVER, Exhaust (INNER)
-
2427-11754 GASKETGASKET
-
2511755M COVER, Exhaust (OUTER)COVER, Exhaust (OUTER)
-
2622-94716M FITTINGFITTING
-
2727-11756 GASKETGASKET
-
2810-82405M BOLTBOLT
-
2924-83340M SPRINGSPRING
-
3033-8M0114739 SPARK PLUGSPARK PLUG
-
31815118M HOUSING
SN# M-018524/ML-365386 & UpHOUSING
SN# M-018524/ML-365386 & Up -
31815118M HOUSING
SN# M-015221/ML-309307 THRU M-018523/ML-365385HOUSING
SN# M-015221/ML-309307 THRU M-018523/ML-365385 -
31815118M HOUSING
SN# M-015220/ML-309306 & BelowHOUSING
SN# M-015220/ML-309306 & Below -
3226-83347M SEAL, OilSEAL, Oil
-
3326-11758M SEAL, OilSEAL, Oil
-
3425-11759M O-RINGO-RING
-
3525-83348M O-RINGO-RING
-
3653-11760M RING, SnapRING, Snap
-
3717-82145M PINPIN
-
3832-82012M HOSEHOSE
-
3954-82047M CLAMPCLAMP
-
4022-81926M PLUGPLUG
-
4127-81990M GASKETGASKET
-
-27-11764M GASKET SET, PowerheadGASKET SET, Powerhead
-
-827139M POWERHEAD ASSEMBLY
SN# M-029924/ML-365385 & BelowPOWERHEAD ASSEMBLY
SN# M-029924/ML-365385 & Below -
-827139M POWERHEAD ASSEMBLY
SN# M-029925/ML-365386 & UpPOWERHEAD ASSEMBLY
SN# M-029925/ML-365386 & Up
