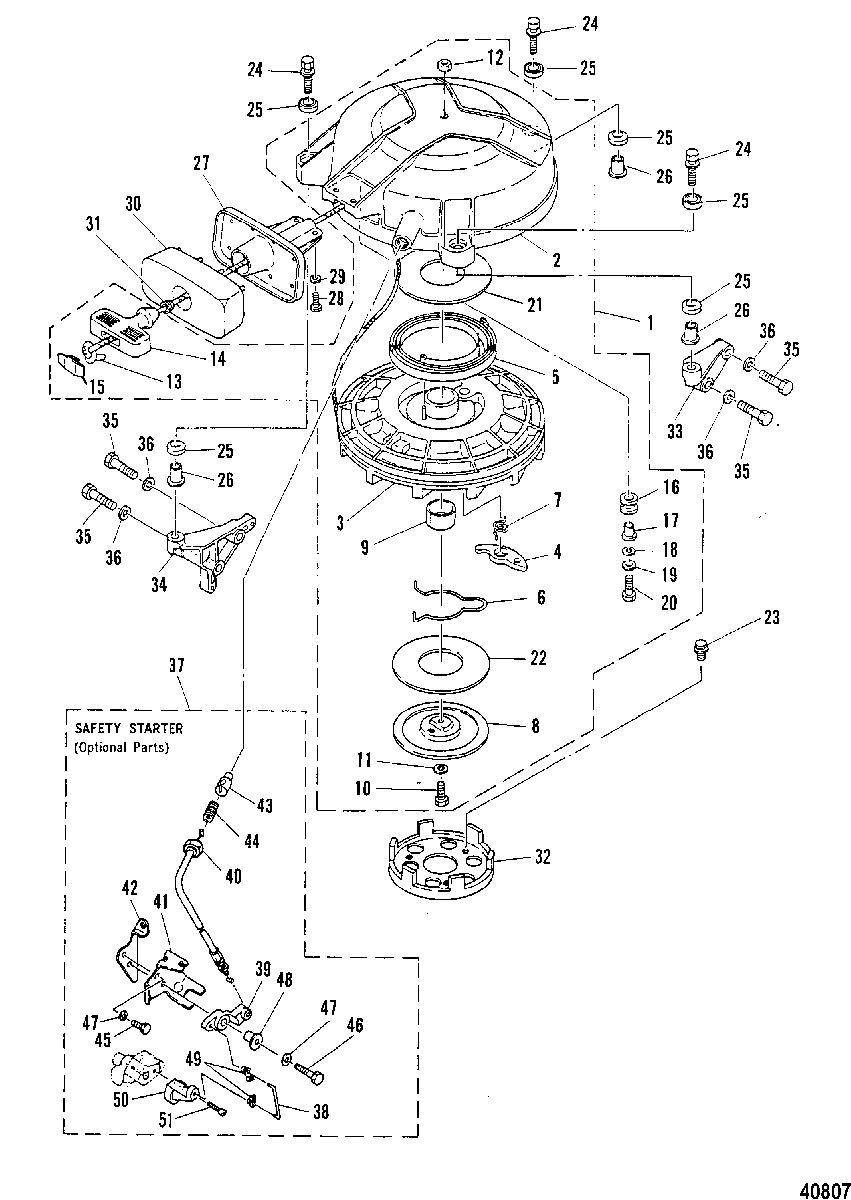

RECOIL STARTER для Mariner - W40 (W/MARATHON) 6F6-005206 & Up
-
№АртикулНазвание
-
12169-815113M STARTER ASSEMBLY, Recoil
SN# M-018524/ML-333281 & UpSTARTER ASSEMBLY, Recoil
SN# M-018524/ML-333281 & Up -
12169-815113M STARTER ASSEMBLY, Recoil
SN# M-018523/ML-333280 & BelowSTARTER ASSEMBLY, Recoil
SN# M-018523/ML-333280 & Below -
22169-9321T HOUSING, StarterHOUSING, Starter
-
350-11695M STARTER ASSEMBLY, RecoilSTARTER ASSEMBLY, Recoil
-
411696M PAWLPAWL
-
524-826952M SPRINGSPRING
-
624-11698M SPRINGSPRING
-
724-11699M SPRINGSPRING
-
811700M PLATEPLATE
-
923-11701M BUSHINGBUSHING
-
1010-82441M BOLTBOLT
-
1112-11702M WASHERWASHER
-
1211-82383M NUTNUT
-
1350-12066Q10 ROPEROPE
-
14814491M HANDLE
SN# M-018524/ML-333281 & UpHANDLE
SN# M-018524/ML-333281 & Up -
14814491A1 HANDLE
SN# M-018523/ML-333280 & BelowHANDLE
SN# M-018523/ML-333280 & Below -
15814492M COVER
SN# M-018524/ML-333281 & UpCOVER
SN# M-018524/ML-333281 & Up -
15814491A1 COVER
SN# M-018523/ML-333280 & BelowCOVER
SN# M-018523/ML-333280 & Below -
1611704M ROLLERROLLER
-
1723-11705M BUSHINGBUSHING
-
1813-11706M LOCKWASHERLOCKWASHER
-
1913-82212M LOCKWASHERLOCKWASHER
-
2010-82405M BOLTBOLT
-
2112-11707M WASHERWASHER
-
2211703M COLLARCOLLAR
-
2310-93110M BOLTBOLT
-
2410-11709M BOLTBOLT
-
2523-11710M BUSHINGBUSHING
-
2623-84489M COLLARCOLLAR
-
2711711M GUIDEGUIDE
-
2810-826957M BOLTBOLT
-
2912-82214M WASHERWASHER
-
3011712M SEALSEAL
-
3125-98968M GROMMETGROMMET
-
3211708M PULLEYPULLEY
-
3311713M BRACKETBRACKET
-
3411714M BRACKETBRACKET
-
3510-82442M BOLTBOLT
-
3612-82217M WASHERWASHER
-
3750-11715M STARTER KIT, RecoilSTARTER KIT, Recoil
-
3811716M LINKLINK
-
3911717M ARMARM
-
4011718M CABLE ASSEMBLYCABLE ASSEMBLY
-
4111719M BRACKETBRACKET
-
4211720M BRACKETBRACKET
-
4381106M PLUNGERPLUNGER
-
4424-82079M SPRINGSPRING
-
4510-83285M BOLTBOLT
-
4610-83285M BOLTBOLT
-
4712-82214M WASHERWASHER
-
4823-94503M COLLARCOLLAR
-
4916333 BRACKETBRACKET
-
5011721M LEVER, Shift ControlLEVER, Shift Control
-
5110-804377 SCREWSCREW
