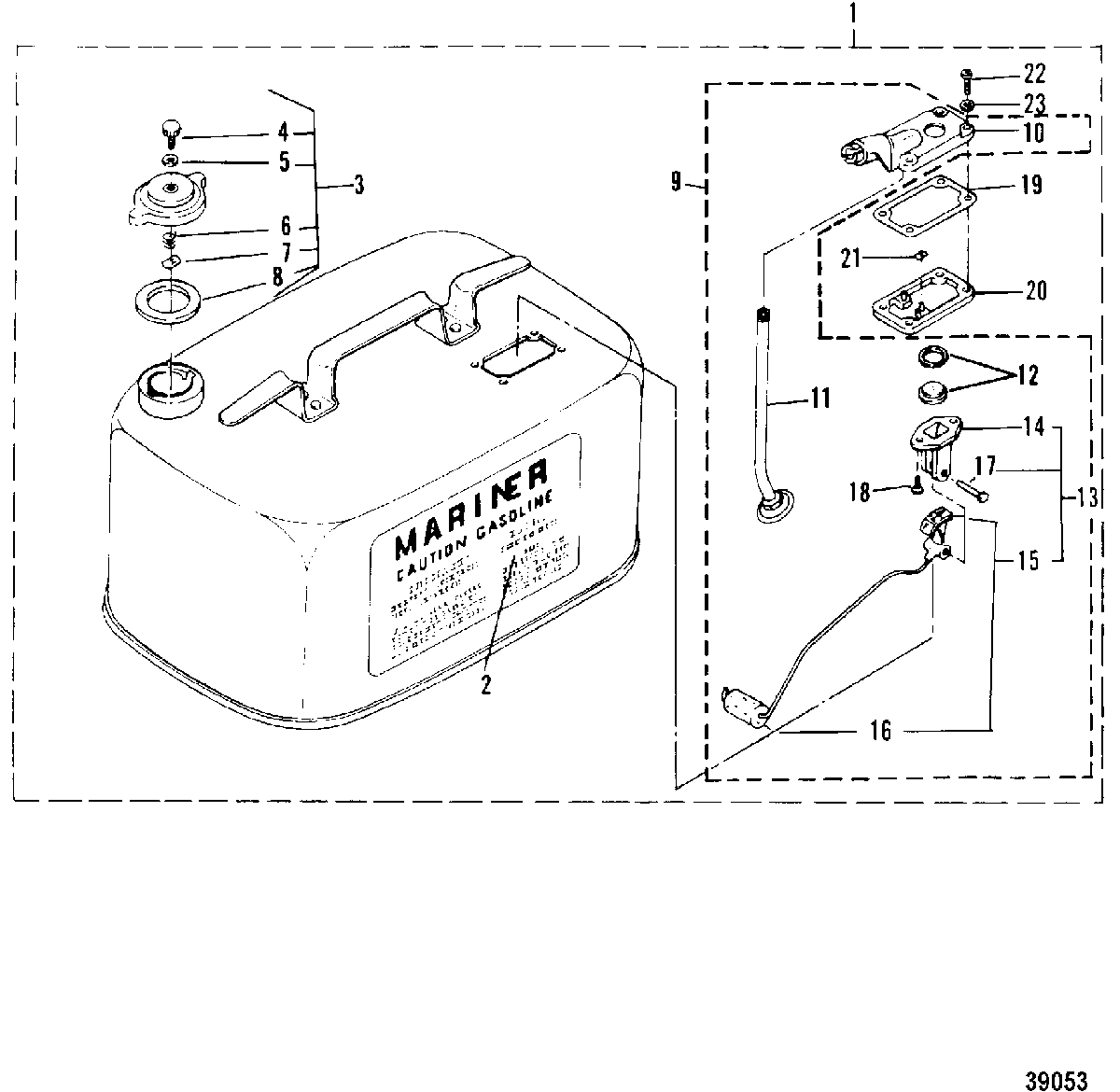

FUEL TANK(NOT ORIGINAL EQUIPMENT TANK) для Mariner - W40 (W/MARATHON) 6F6-005206 & Up
-
№АртикулНазвание
-
11259-812410A1 TANK ASSEMBLY, Fuel, COMPLETE (6 GALLON)TANK ASSEMBLY, Fuel, COMPLETE (6 GALLON)
-
290-818855 DECALDECAL
-
336-18962M CAP ASSEMBLY, Fuel TankCAP ASSEMBLY, Fuel Tank
-
410-25575 SCREWSCREW
-
512-49221 WASHERWASHER
-
624-22227 SPRINGSPRING
-
711-28587 NUTNUT
-
827-41065 GASKETGASKET
-
964841A1 CONNECTOR/GAUGE ASSEMBLY, COMPLETECONNECTOR/GAUGE ASSEMBLY, COMPLETE
-
1017792A1 COVERCOVER
-
1132-75239 TUBETUBE
-
1298542A1 WINDOW ASSEMBLYWINDOW ASSEMBLY
-
1328897A2 GAUGE ASSEMBLY, Fuel, COMPLETEGAUGE ASSEMBLY, Fuel, COMPLETE
-
1420430 RETAINERRETAINER
-
1528897A1 INDICATOR AND FLOAT ASSEMBLYINDICATOR AND FLOAT ASSEMBLY
-
1699274 FLOATFLOAT
-
1717-20426 RIVETRIVET
-
1810-62568 SCREW, (#10-16 x .375)SCREW, (#10-16 x .375)
-
1927-28862 GASKETGASKET
-
2028860 FRAME (FUEL TANK COVER)FRAME (FUEL TANK COVER)
-
2111-28903 NUTNUT
-
2210-20411 SCREW, (.190-24 x .62)SCREW, (.190-24 x .62)
-
2312-29070 WASHERWASHER
