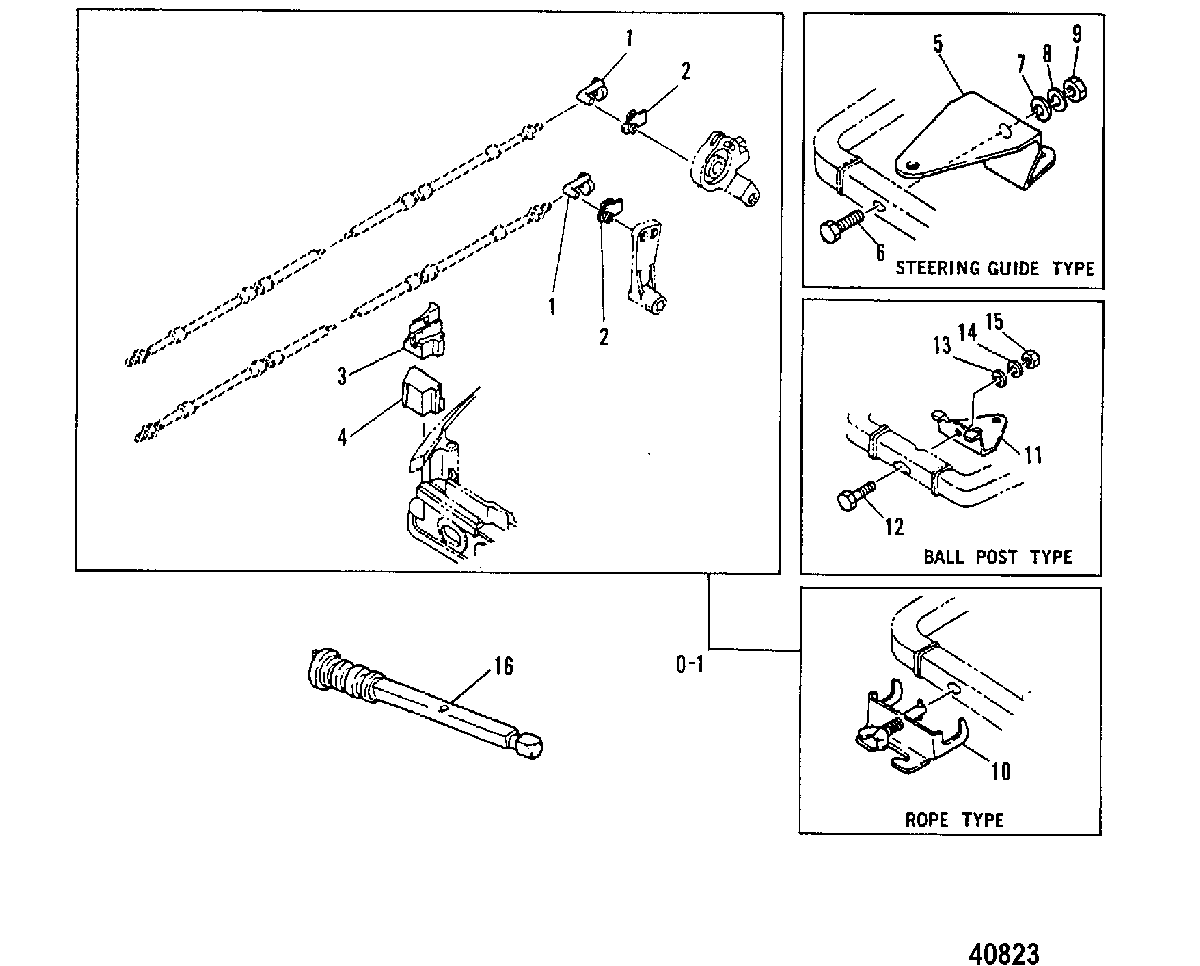

REMOTE CONTROL ATTACHING KIT для Mariner - W40 (W/MARATHON) 6F6-005206 & Up
-
№АртикулНазвание
-
0-111900A1 ATTACHING KITATTACHING KIT
-
111880M CONNECTORCONNECTOR
-
297742M JOINTJOINT
-
311881M CLAMPCLAMP
-
425-11882M GROMMETGROMMET
-
583698M HOOK (STEERING GUIDE TYPE)HOOK (STEERING GUIDE TYPE)
-
610-91636M BOLTBOLT
-
712-82220M WASHERWASHER
-
813-82218M LOCKWASHER
SN# M-005930/ML-309306 & BelowLOCKWASHER
SN# M-005930/ML-309306 & Below -
911-81785M LOCKNUTLOCKNUT
-
1083727M BRACKET (ROPE TYPE)BRACKET (ROPE TYPE)
-
1111670T BRACKET (BALL POST TYPE)BRACKET (BALL POST TYPE)
-
1210-91636M BOLTBOLT
-
1312-82220M WASHERWASHER
-
1413-82218M LOCKWASHER
SN# M-005930/ML-309306 & BelowLOCKWASHER
SN# M-005930/ML-309306 & Below -
1511-81785M LOCKNUTLOCKNUT
-
1611884M HANDLE
SN# M-005931/ML-309307 THRU M-018523/ML-333280HANDLE
SN# M-005931/ML-309307 THRU M-018523/ML-333280
