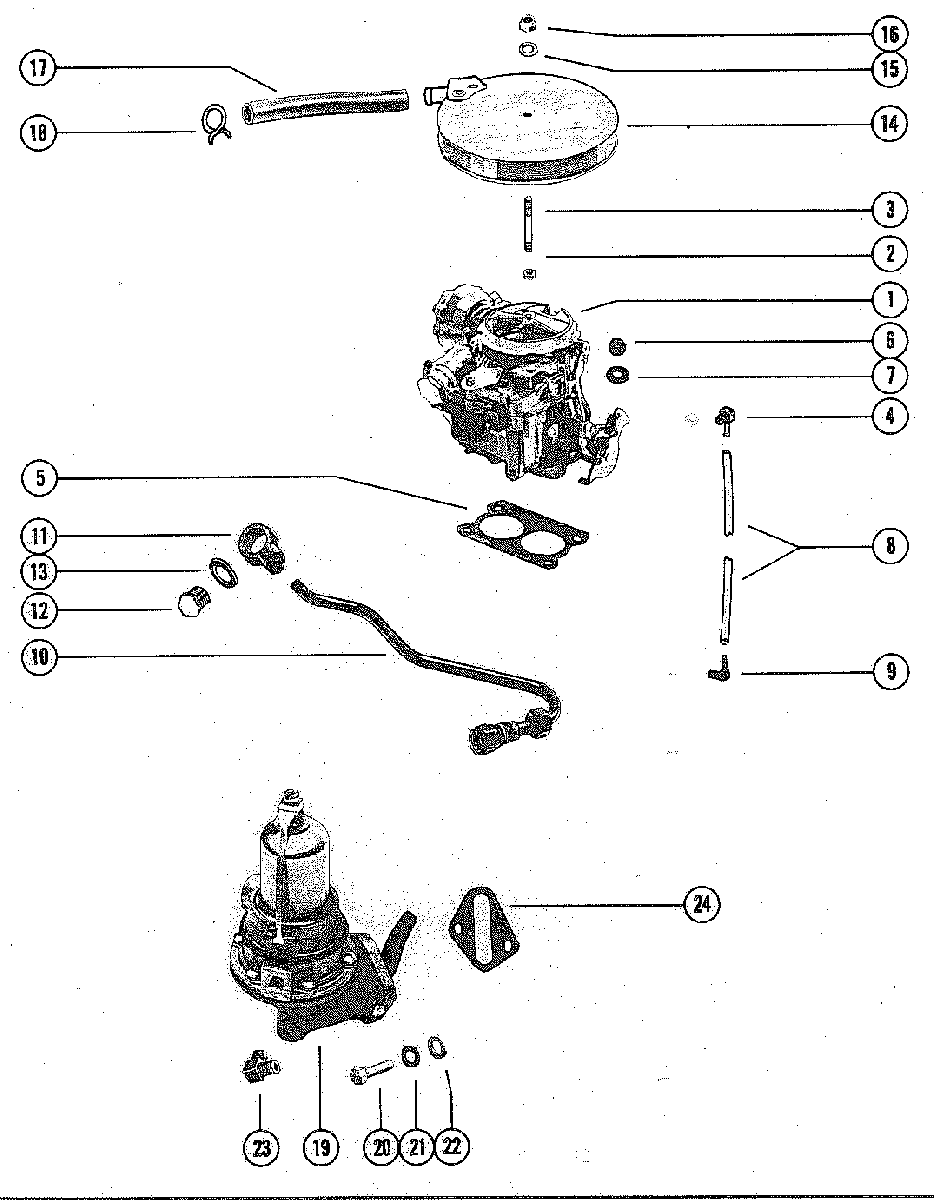

CARBURETOR ASSEMBLY, FLAME ARRESTOR AND FUEL PUMP для Mercruiser - 485 (2 BBL.) MERCURY 224 I/L4 1980-1982 5685394 THRU 6218036
-
№АртикулНазвание
-
13310-860071A4 CARBURETOR ASSEMBLYCARBURETOR ASSEMBLY
-
216-70878 STUD, CARBURETOR - FLAME ARRESTOR (2")STUD, CARBURETOR - FLAME ARRESTOR (2")
-
311-8267139 NUT, FLAME ARRESTOR STUDNUT, FLAME ARRESTOR STUD
-
422-54090 CONNECTOR, HOSE - CARBURETOR VENTCONNECTOR, HOSE - CARBURETOR VENT
-
527-8079821 GASKET, CARBURETOR TO INTAKE MANIFOLDGASKET, CARBURETOR TO INTAKE MANIFOLD
-
611-29250 NUT, CARBURETOR TO INTAKE MANIFOLDNUT, CARBURETOR TO INTAKE MANIFOLD
-
712-20084 WASHER, CARBURETOR TO INTAKE MANIFOLDWASHER, CARBURETOR TO INTAKE MANIFOLD
-
832-7381567 HOSE, FUEL VENTHOSE, FUEL VENT
-
922-73817 FITTING, VENT TO FUEL PUMPFITTING, VENT TO FUEL PUMP
-
1032-76312A1 FUEL LINEFUEL LINE
-
1176277 FITTING, BANJO - FUEL LINEFITTING, BANJO - FUEL LINE
-
1222-73808 FITTING, FUEL INLETFITTING, FUEL INLET
-
1312-74784 WASHER, FUEL INLET FITTINGWASHER, FUEL INLET FITTING
-
14805016A1 FLAME ARRESTORFLAME ARRESTOR
-
1512-86400 WASHER, FLAME ARRESTOR ATTACHINGWASHER, FLAME ARRESTOR ATTACHING
-
1611-826709109 NUT, FLAME ARRESTOR ATTACHINGNUT, FLAME ARRESTOR ATTACHING
-
1732-8M0062669 HOSE, FLAME ARRESTOR TO ROCKER COVERHOSE, FLAME ARRESTOR TO ROCKER COVER
-
1854-53101 CLIP, HOSE TO FLAME ARRESTORCLIP, HOSE TO FLAME ARRESTOR
-
1986234A05 FUEL PUMPFUEL PUMP
-
--35-49088Q2 FILTER KITFILTER KIT
-
--49089A1 DIAPHRAGM KITDIAPHRAGM KIT
-
2010-35386 SCREW, FUEL PUMP ATTACHING (5/16-18 X 1")SCREW, FUEL PUMP ATTACHING (5/16-18 X 1")
-
2113-20202 LOCKWASHER, FUEL ATTACHING SCREWLOCKWASHER, FUEL ATTACHING SCREW
-
2212-20546 WASHER, FUEL PUMP ATTACHING SCREWWASHER, FUEL PUMP ATTACHING SCREW
-
2322-98646 FITTING, ELBOW - FUEL PUMPFITTING, ELBOW - FUEL PUMP
-
2427-72805 GASKET, FUEL PUMP ATTACHINGGASKET, FUEL PUMP ATTACHING
