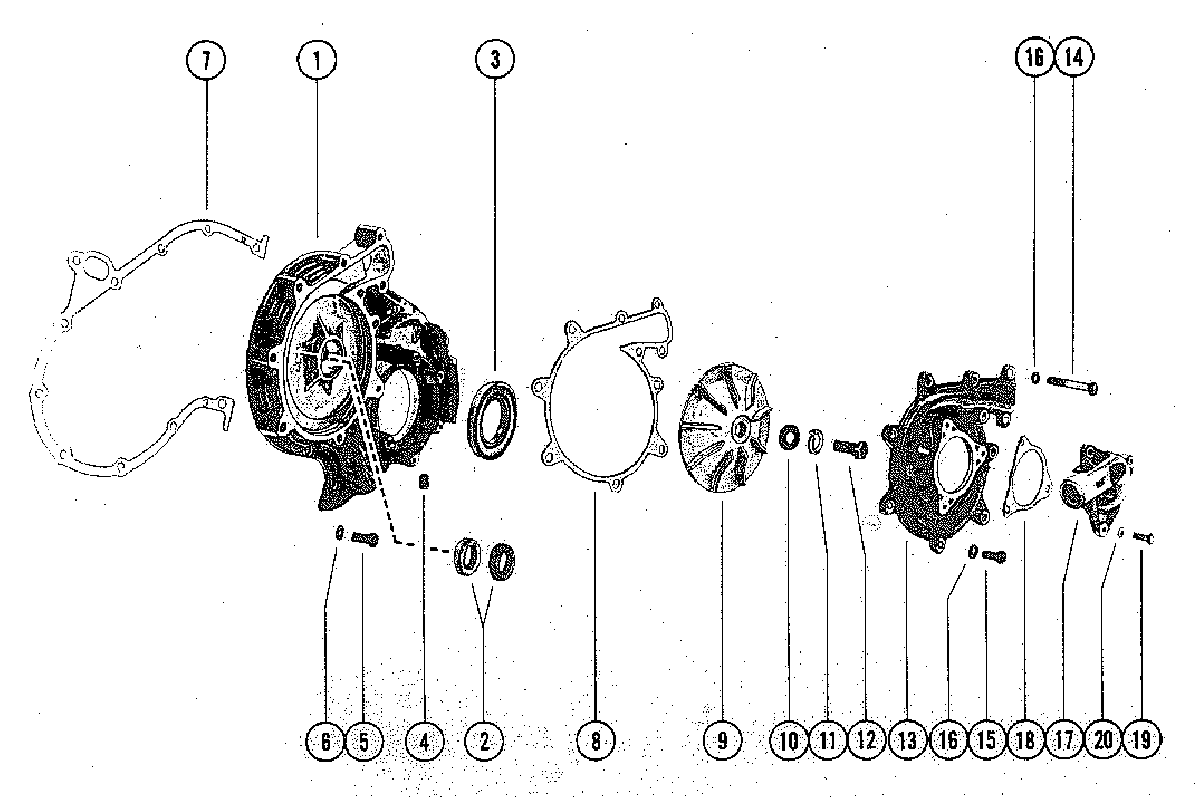

FRONT COVER ASSEMBLY для Mercruiser - 485 (2 BBL.) MERCURY 224 I/L4 1980-1982 5685394 THRU 6218036
-
№АртикулНазвание
-
171903A2 FRONT COVER ASSEMBLYFRONT COVER ASSEMBLY
-
226-89238 SEAL, WATER PUMPSEAL, WATER PUMP
-
326-67388 SEAL, FRONTSEAL, FRONT
-
422-328022 PIPE PLUG, DRAINPIPE PLUG, DRAIN
-
510-35386 SCREW, FRONT COVER TO CYLINDER BLOCK (1")SCREW, FRONT COVER TO CYLINDER BLOCK (1")
-
612-20084 WASHER, FRONT COVER TO CYLINDER BLOCK SCREWWASHER, FRONT COVER TO CYLINDER BLOCK SCREW
-
727-68714A7 GASKET, FRONT COVER TO CYLINDER BLOCKGASKET, FRONT COVER TO CYLINDER BLOCK
-
827-68714A7 GASKET, IMPELLER COVER TO FRONT COVERGASKET, IMPELLER COVER TO FRONT COVER
-
947-86462A1 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
1012-91863 WASHER, IMPELLER SCREWWASHER, IMPELLER SCREW
-
1113-21804 LOCKWASHER, IMPELLER SCREWLOCKWASHER, IMPELLER SCREW
-
1210-824941 SCREW, IMPELLER ATTACHINGSCREW, IMPELLER ATTACHING
-
1371902A1 COVER, IMPELLERCOVER, IMPELLER
-
1410-67450 SCRE, COVER TO CYLINDER BLOCK (2 1/4")SCRE, COVER TO CYLINDER BLOCK (2 1/4")
-
1510-35386 SCREW, IMPELLER COVER TO FRONT COVER (1")SCREW, IMPELLER COVER TO FRONT COVER (1")
-
1612-20084 WASHER, COVER ATTACHING SCREWSWASHER, COVER ATTACHING SCREWS
-
1771904A1 COVER, WATER INLETCOVER, WATER INLET
-
1827-68714A7 GASKET, WATER INLET COVERGASKET, WATER INLET COVER
-
1910-28668 SCREW, INLET COVER (7/8")SCREW, INLET COVER (7/8")
-
2012-21249 WASHER, INLET COVER TO IMPELLER COVER SCREWWASHER, INLET COVER TO IMPELLER COVER SCREW
Все узлы модели:
- CAMSHAFT AND PISTON ASSEMBLY
- CARBURETOR ASSEMBLY
- CARBURETOR ASSEMBLY, FLAME ARRESTOR AND FUEL PUMP
- COOLANT RECOVERY SYSTEM
- CRANKSHAFT, FLYWHEEL AND ALTERNATOR ASSEMBLY
- CYLINDER BLOCK ASSEMBLY AND OIL FILTER ADAPTOR
- CYLINDER HEAD ASSEMBLY AND ROCKER COVER
- DISTRIBUTOR ASSEMBLY AND COIL
- EXHAUST ELBOW ASSEMBLY
- EXHAUST MANIFOLD ASSEMBLY AND EXHAUST ELBOW ASSEMBLY
- FLYWHEEL HOUSING ASSEMBLY
- • FRONT COVER ASSEMBLY
- FRONT MOUNT ASSEMBLY
- HEAT EXCHANGER AND POWER STEERING COOLER
- INTAKE MANIFOLD, LINKAGE AND ENGINE OIL COOLER
- OIL PUMP AND OIL PAN
- POWER STEERING ASSEMBLY
- STARTER ASSEMBLY, WIRING HARNESS AND VOLTAGE REGULATOR
- STARTER MOTOR ASSEMBLY, COMPLETE
- WATER CLOSED COOLING KIT
