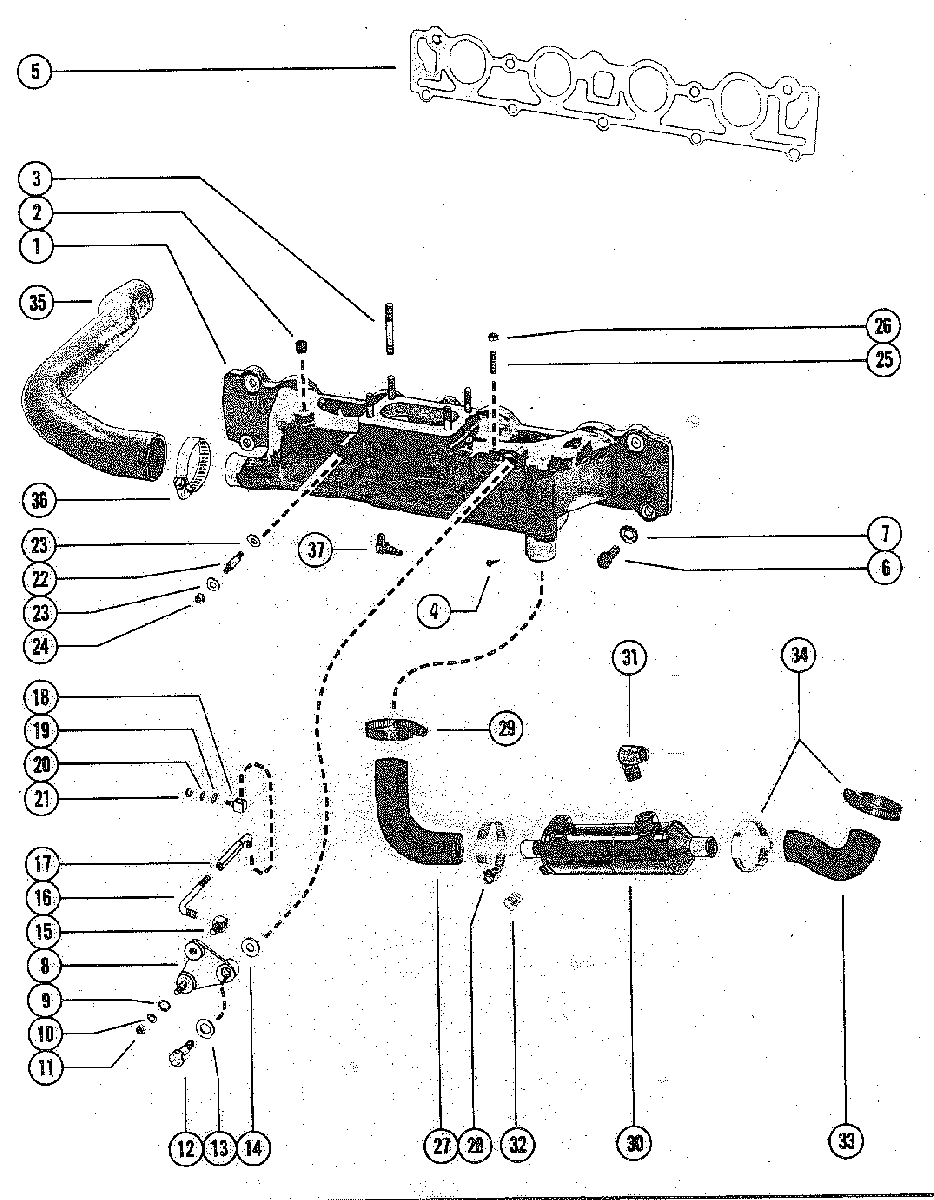

INTAKE MANIFOLD, LINKAGE AND ENGINE OIL COOLER для Mercruiser - 485 (2 BBL.) MERCURY 224 I/L4 1980-1982 5685394 THRU 6218036
-
№АртикулНазвание
-
189953A2 INTAKE MANIFOLD ASSEMBLYINTAKE MANIFOLD ASSEMBLY
-
222-36382 PLUG, INTAKE MANIFOLD - TOPPLUG, INTAKE MANIFOLD - TOP
-
316-8M0113177 STUD, CARBURETOR TO MANIFOLDSTUD, CARBURETOR TO MANIFOLD
-
410-28642 SCREW, DRIVE - WATER TUBE FLANGESCREW, DRIVE - WATER TUBE FLANGE
-
527-70905 GASKET, INTAKE MANIFOLDGASKET, INTAKE MANIFOLD
-
610-68101 SCREW, INTAKE MANIFOLD TO HEAD (1 3/8")SCREW, INTAKE MANIFOLD TO HEAD (1 3/8")
-
712-25909 WASHER, INTAKE MANIFOLD SCREWWASHER, INTAKE MANIFOLD SCREW
-
878801T LEVER, INTERMEDIATE THROTTLELEVER, INTERMEDIATE THROTTLE
-
912-35950 WASHER, INTERMEDIATE THROTTLE STUDWASHER, INTERMEDIATE THROTTLE STUD
-
1012-30164 WASHER, INTERMEDIATE THORTTLE STUDWASHER, INTERMEDIATE THORTTLE STUD
-
1111-20110 NUT, INTERMEDIATE THROTTLE STUDNUT, INTERMEDIATE THROTTLE STUD
-
1210-38507 SCREW, LEVER TO INTAKE MANIFOLD (1 5/16")SCREW, LEVER TO INTAKE MANIFOLD (1 5/16")
-
1312-20553 WASHER, LEVER TO INTAKE MANIFOLD SCREWWASHER, LEVER TO INTAKE MANIFOLD SCREW
-
1412-57792 WASHER, LEVER TO INTAKE MANIFOLD SCREWWASHER, LEVER TO INTAKE MANIFOLD SCREW
-
1527947 SWIVEL, LINKAGESWIVEL, LINKAGE
-
1664804 LINK ROD, LINKAGELINK ROD, LINKAGE
-
1763145A1 LINK ROD ASSEMBLY, LINKAGELINK ROD ASSEMBLY, LINKAGE
-
1838983 SWIVEL, LINKAGE - CARBURETORSWIVEL, LINKAGE - CARBURETOR
-
1912-35950 WASHER, SWIVEL LINKAGE - CARBURETORWASHER, SWIVEL LINKAGE - CARBURETOR
-
2012-30164 WASHER, SWIVEL LINKAGE - CARBURETORWASHER, SWIVEL LINKAGE - CARBURETOR
-
2111-20110 NUT, SWIVEL LINKAGE - CARBURETORNUT, SWIVEL LINKAGE - CARBURETOR
-
2216-38525 STUD, THROTTLE CABLE ANCHORSTUD, THROTTLE CABLE ANCHOR
-
2312-24664 WASHER, THROTTLE CABLE ANCHOR STUDWASHER, THROTTLE CABLE ANCHOR STUD
-
2411-826709109 NUT, THROTTLE CABLE ANCHOR STUDNUT, THROTTLE CABLE ANCHOR STUD
-
2510-64969 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
2611-33122 NUT, THROTTLE STOP SCREWNUT, THROTTLE STOP SCREW
-
2732-90476 HOSE, MANIFOLD TO COOLERHOSE, MANIFOLD TO COOLER
-
2854-815504220 CLAMP, HOSE TO COOLERCLAMP, HOSE TO COOLER
-
2954-815504228 CLAMP, HOSE TO INTAKE MANIFOLDCLAMP, HOSE TO INTAKE MANIFOLD
-
3089872A4 COOLER, ENGINE OILCOOLER, ENGINE OIL
-
3122-48246 ELBOW, TO COOLERELBOW, TO COOLER
-
3222-328022 PLUG, PIPE (1/8-27NPT)PLUG, PIPE (1/8-27NPT)
-
3332-90477 HOSE, COOLER TO WATER PUMPHOSE, COOLER TO WATER PUMP
-
3454-815504220 CLAMP, HOSE ATTACHINGCLAMP, HOSE ATTACHING
-
3532-89655 HOSE, INTAKE MANIFOLD TO EXHAUST MANIFOLDHOSE, INTAKE MANIFOLD TO EXHAUST MANIFOLD
-
3654-815504228 CLAMP, HOSE TO INTAKE MANIFOLDCLAMP, HOSE TO INTAKE MANIFOLD
-
3722-73817 FITTING, BY-PASS - INTAKE MANIFOLDFITTING, BY-PASS - INTAKE MANIFOLD
