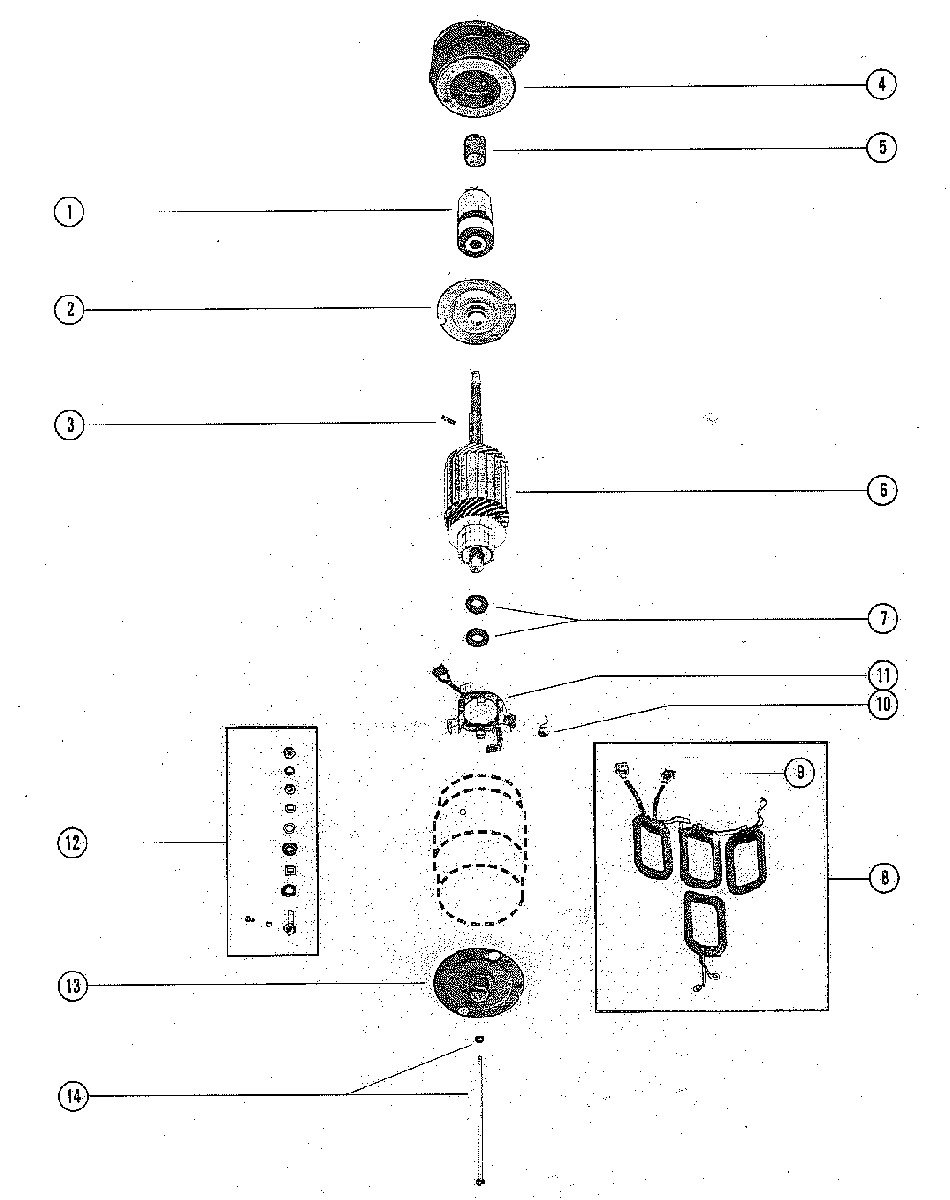

STARTER MOTOR ASSEMBLY, COMPLETE для Mercruiser - 485 (2 BBL.) MERCURY 224 I/L4 1980-1982 5685394 THRU 6218036
-
№АртикулНазвание
-
-50-69865A1 STARTER MOTOR ASSEMBLY, COMPLETESTARTER MOTOR ASSEMBLY, COMPLETE
-
-50-72550R2 STARTER MOTOR ASSEMBLY, COMPLETESTARTER MOTOR ASSEMBLY, COMPLETE
-
-50-88671A2 STARTER MOTOR ASSEMBLY, COMPLETESTARTER MOTOR ASSEMBLY, COMPLETE
-
1392-5720 MOTOR DRIVE INCLUDES NUT, SPRING AND COLLARMOTOR DRIVE INCLUDES NUT, SPRING AND COLLAR
-
1392-6177 MOTOR DRIVE INCLUDES NUT, SPRING AND COLLARMOTOR DRIVE INCLUDES NUT, SPRING AND COLLAR
-
1392-8271 MOTOR DRIVE INCLUDES NUT, SPRING AND COLLARMOTOR DRIVE INCLUDES NUT, SPRING AND COLLAR
-
2392-5719 BEARING ASSEMBLY, INTERMEDIATEBEARING ASSEMBLY, INTERMEDIATE
-
3392-5721 PIN, MOTOR DRIVEPIN, MOTOR DRIVE
-
3392-6178 PIN, MOTOR DRIVEPIN, MOTOR DRIVE
-
4392-5724 PLATE ASSEMBLY, DRIVE ENDPLATE ASSEMBLY, DRIVE END
-
5392-5725 BUSHING, DRIVE END PLATEBUSHING, DRIVE END PLATE
-
4392-6180 PLATE ASSEMBLY, DRIVE ENDPLATE ASSEMBLY, DRIVE END
-
5392-5725 BUSHING, DRIVE END PLATEBUSHING, DRIVE END PLATE
-
6392-5718 ARMATUREARMATURE
-
6392-6176 ARMATUREARMATURE
-
7392-5730 PACKAGE, ARMATURE THRUST WASHERPACKAGE, ARMATURE THRUST WASHER
-
8392-5722 FIELD ASSEMBLYFIELD ASSEMBLY
-
9392-6181 BRUSH AND TERMINAL SETBRUSH AND TERMINAL SET
-
8392-6179 FIELD ASSEMBLYFIELD ASSEMBLY
-
8392-8270 FIELD ASSEMBLYFIELD ASSEMBLY
-
9392-6181 BRUSH AND TERMINAL SETBRUSH AND TERMINAL SET
-
9392-6181 BRUSH AND TERMINAL SETBRUSH AND TERMINAL SET
-
10392-5727 SPRING SET, BRUSH (2 SPRINGS PER SET)SPRING SET, BRUSH (2 SPRINGS PER SET)
-
11392-5726 BRUSH PLATE AND HOLDER ASSEMBLYBRUSH PLATE AND HOLDER ASSEMBLY
-
12392-5728 TERMINAL STUD PACKAGETERMINAL STUD PACKAGE
-
13392-5723 END CAP ASSEMBLY, COMMUTATOREND CAP ASSEMBLY, COMMUTATOR
-
14392-5729 BOLT, THRU - END CAP TO END PLATEBOLT, THRU - END CAP TO END PLATE
