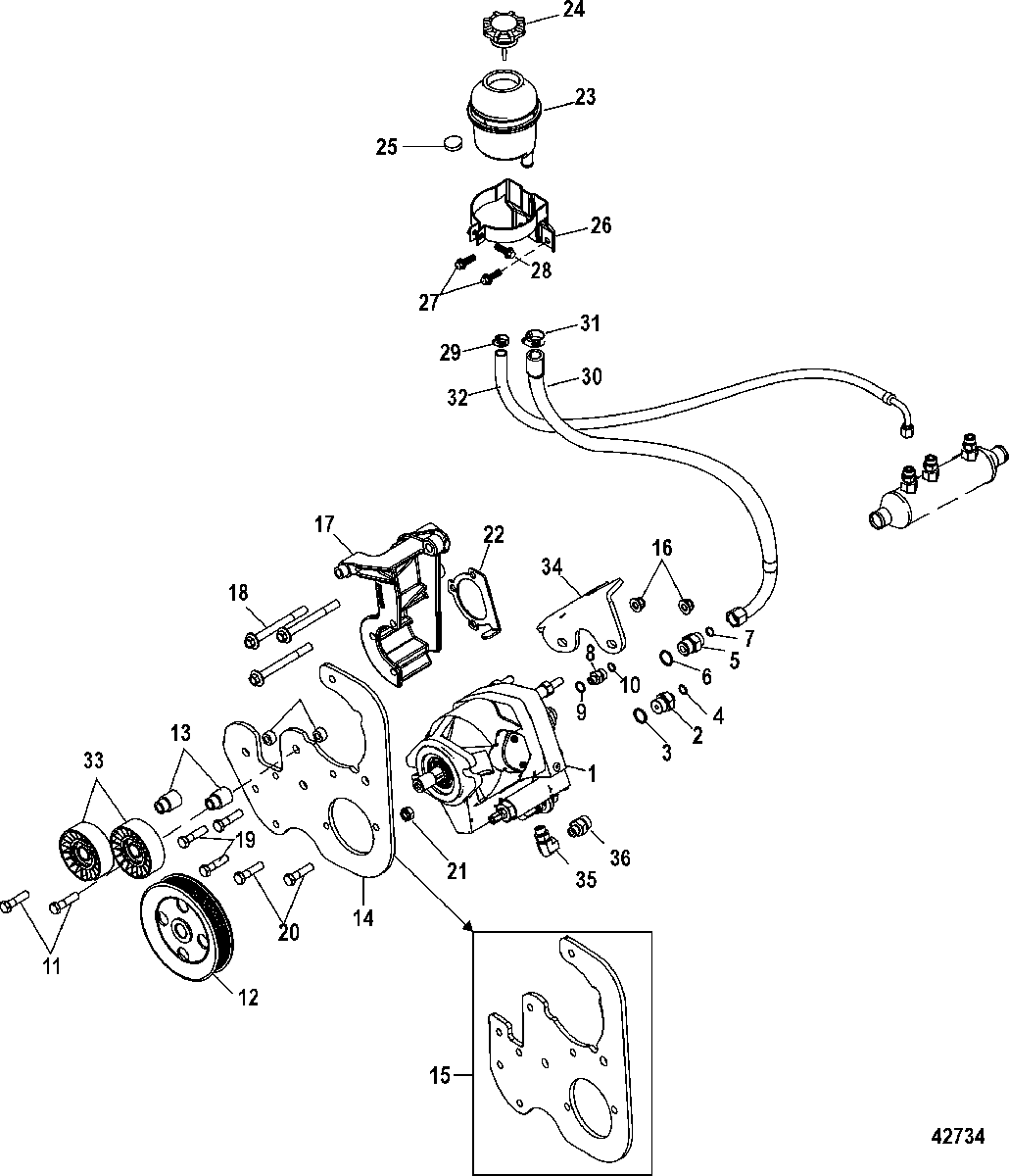

AXIUS Steering, Hydraulic Pump and Reservoir,Gen I для Mercruiser - 496 MAG EC (H.O. Model) 1A066166 THRU 1A350440
-
№АртикулНазвание
-
1879194T51 PUMPPUMP
-
222-8M2007281 FITTINGFITTING
-
3NSS NOT SOLD SEPARATENOT SOLD SEPARATE
-
425-8M2004603 O-RINGO-RING
-
522-8M2008373 FITTING, (1.25 in.)FITTING, (1.25 in.)
-
6NSS NOT SOLD SEPARATENOT SOLD SEPARATE
-
725-8M2008541 O-RINGO-RING
-
822-8M2007090 FITTING, (-6) ORF TO ( -8) ORB, StraightFITTING, (-6) ORF TO ( -8) ORB, Straight
-
925-8M0047401 O-RING, (.468 X .078)O-RING, (.468 X .078)
-
10NSS NOT SOLD SEPARATENOT SOLD SEPARATE
-
1110-4010860 SCREW, (M10 x 60) Hex Flange - Stainless SteelSCREW, (M10 x 60) Hex Flange - Stainless Steel
-
128M2001037 PULLEY, Power Steering
SN# 1A349534 & BelowPULLEY, Power Steering
SN# 1A349534 & Below -
128M8020627 PULLEY, Power Steering
SN# 1A349535 & UpPULLEY, Power Steering
SN# 1A349535 & Up -
138M8020541 BUSHINGBUSHING
-
148M2007248 BRACKET, Power Steering Pump
SN# 1A349534 & BelowBRACKET, Power Steering Pump
SN# 1A349534 & Below -
158M2013950 BRACKET, Power Steering Pump
SN# 1A349535 & UpBRACKET, Power Steering Pump
SN# 1A349535 & Up -
1611-860069 NUT, (.375-16)NUT, (.375-16)
-
178M0131223 BRACKETBRACKET
-
1810-8M0012503 SCREW, (M10 x 1.5)SCREW, (M10 x 1.5)
-
1910-4010720 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
2010-34354 SCREW, (.375-16 x 1.50)SCREW, (.375-16 x 1.50)
-
2111-860069 NUT, (.375-16)NUT, (.375-16)
-
228M2009215 BRACKETBRACKET
-
23865264T RESERVOIR ASSEMBLY, Oil - Power-Assisted SteeringRESERVOIR ASSEMBLY, Oil - Power-Assisted Steering
-
248M0121097 CAP, Oil Reservoir - BrownCAP, Oil Reservoir - Brown
-
2587919455T MAGNET, Power Steering ReservoirMAGNET, Power Steering Reservoir
-
26865262A02 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
2710-4010716 SCREW, (M8 x 16)SCREW, (M8 x 16)
-
2810-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
2954-815504105 CLAMP, Worm Gear (11-18 mm)CLAMP, Worm Gear (11-18 mm)
-
3032-8M2012143 HOSE, Inlet to ReservoirHOSE, Inlet to Reservoir
-
3154-815504210 CLAMP, Worm GearCLAMP, Worm Gear
-
3232-8M2006304 HOSEHOSE
-
338M6500024 PULLEYPULLEY
-
348M2007274 BRACKETBRACKET
-
3522-8M2009850 FITTING (-6) Orb to 1/4 NPTFITTING (-6) Orb to 1/4 NPT
-
3622-8M2009851 COUPLING, Hydraulic QuickCOUPLING, Hydraulic Quick
-
-879172A34 PULLEY KIT, High Current, Axius
SN# 1A349535 & UpPULLEY KIT, High Current, Axius
SN# 1A349535 & Up
