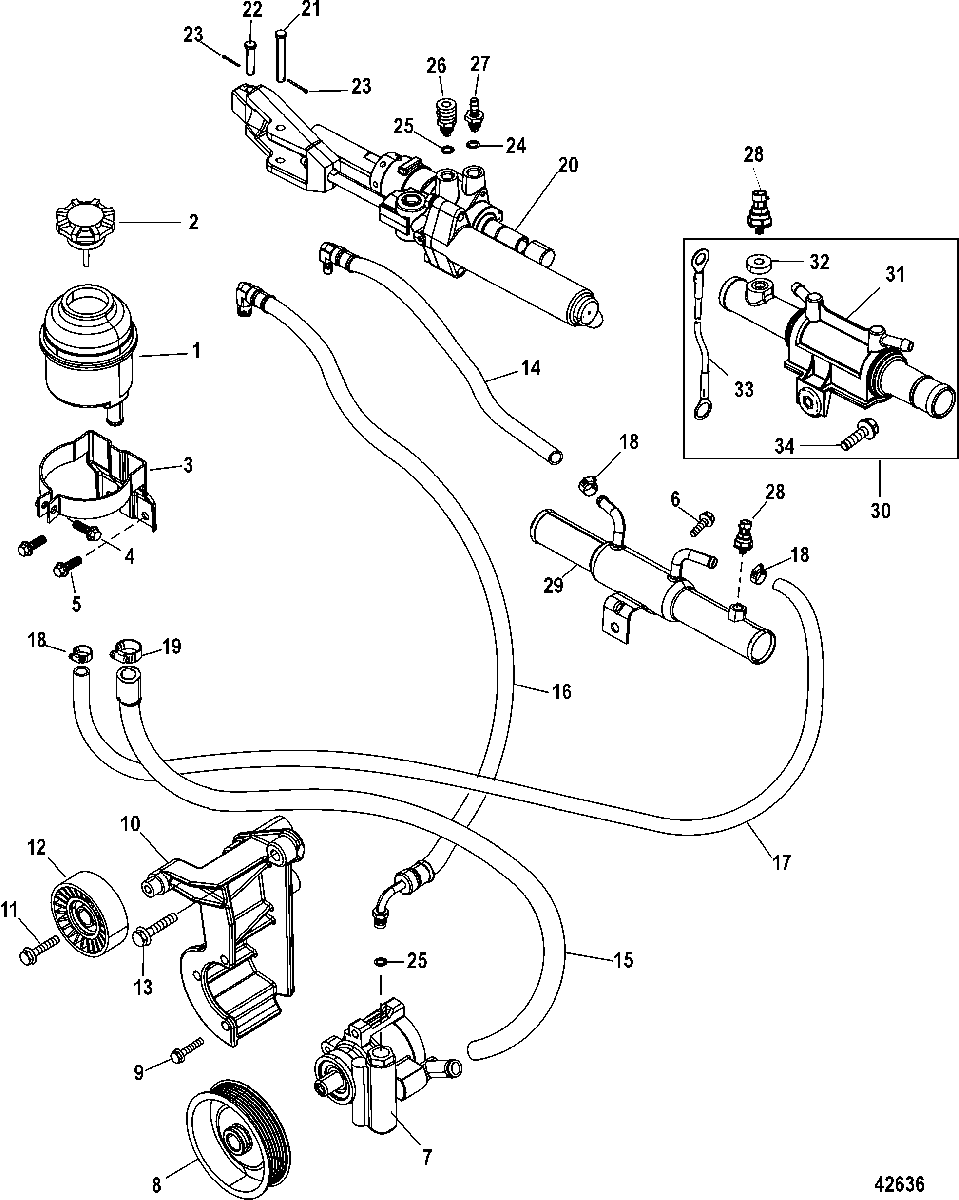

Steering Components для Mercruiser - 496 MAG EC (H.O. Model) 1A066166 THRU 1A350440
-
№АртикулНазвание
-
-865264A06 RESERVOIR KITRESERVOIR KIT
-
1865264T RESERVOIR ASSEMBLY, Oil - Power-Assisted SteeringRESERVOIR ASSEMBLY, Oil - Power-Assisted Steering
-
28M0121097 CAP, Oil Reservoir - BrownCAP, Oil Reservoir - Brown
-
3865262A02 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
410-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
510-4010716 SCREW, (M8 x 16)SCREW, (M8 x 16)
-
610-816585 SCREW, (.375-18 x .875)SCREW, (.375-18 x .875)
-
7865710T PUMP, Power SteeringPUMP, Power Steering
-
8865795 PULLEY, Power SteeringPULLEY, Power Steering
-
910-4010720 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
108M0131223 BRACKET, Power Steering PumpBRACKET, Power Steering Pump
-
1110-4010816 SCREW, (M10 x 16) Hex Flange - Stainless SteelSCREW, (M10 x 16) Hex Flange - Stainless Steel
-
128M6500024 PULLEYPULLEY
-
1310-4010890 SCREW, (M10 x 90) Hex Flange - Stainless SteelSCREW, (M10 x 90) Hex Flange - Stainless Steel
-
1432-865390015 HOSE, Male Quick Connect, Cylinder to CoolerHOSE, Male Quick Connect, Cylinder to Cooler
-
1532-866406 HOSE, Pump to ReservoirHOSE, Pump to Reservoir
-
1632-8M0063021 HOSE, Pressure, Pump to CylinderHOSE, Pressure, Pump to Cylinder
-
1632-8M0063019 HOSE, Pressure, Pump to Cylinder
(SEACORE)HOSE, Pressure, Pump to Cylinder
(SEACORE) -
1732-865717 HOSE, Reservoir to CoolerHOSE, Reservoir to Cooler
-
1854-815504104 CLAMP, (8 - 16 mm), HoseCLAMP, (8 - 16 mm), Hose
-
1954-815504210 CLAMP, Worm Gear (16-27 mm), HoseCLAMP, Worm Gear (16-27 mm), Hose
-
208M0063382 ACTUATOR ASSEMBLY, SteeringACTUATOR ASSEMBLY, Steering
-
2117-15878 PIN, Clevis
LongPIN, Clevis
Long -
2217-16419 PIN, Clevis
ShortPIN, Clevis
Short -
2318-46950 COTTER PINCOTTER PIN
-
2425-806232 O-RING, (.239 x .064)O-RING, (.239 x .064)
-
2525-89879 O-RING, (.301 x .064)O-RING, (.301 x .064)
-
2622-865415 FITTINGFITTING
-
2722-865414001 FITTINGFITTING
-
288M6000623 SENSORSENSOR
-
298M0125856 COOLER, Power Steering
MetalCOOLER, Power Steering
Metal -
308M0125856 COOLER ASSEMBLY, Power Steering
CompositeCOOLER ASSEMBLY, Power Steering
Composite -
318M0125856 COOLER, Power Steering
CompositeCOOLER, Power Steering
Composite -
3223-8M2017227 SPACERSPACER
-
3384-8M2100159 HARNESS, GroundHARNESS, Ground
-
3410-8M2016106 SCREW, (.312 x 1.25)SCREW, (.312 x 1.25)
