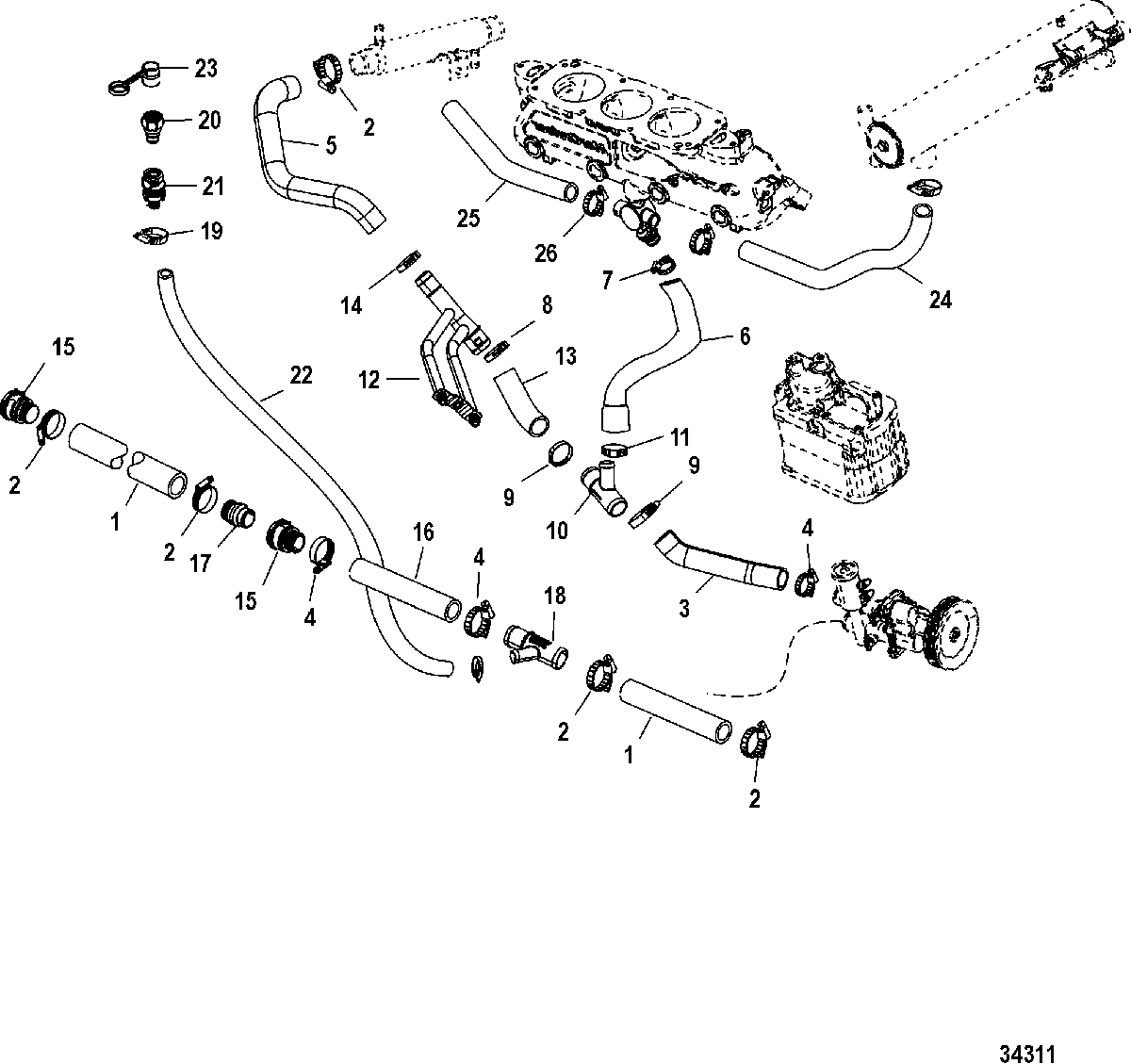

Cooling System, Raw Water, Starboard (SN 1A349419 and Below) для Mercruiser - 496 MAG EC (H.O. Model) 1A066166 THRU 1A350440
-
№АртикулНазвание
-
132-8M0062653 HOSE, (4.00 Inches)HOSE, (4.00 Inches)
-
254-815504224 CLAMP, (32 - 50 mm)CLAMP, (32 - 50 mm)
-
332-8M2004535 HOSE, Sea Water Pump to FittingHOSE, Sea Water Pump to Fitting
-
454-815504224 CLAMP, (32 - 50 mm)CLAMP, (32 - 50 mm)
-
532-8M2021655 HOSE, Water Orifice to Power Steering CoolerHOSE, Water Orifice to Power Steering Cooler
-
632-8M2004531 HOSE, Drain to Y-FittingHOSE, Drain to Y-Fitting
-
754-815504212 CLAMP, Worm GearCLAMP, Worm Gear
-
854-815504221 CLAMP, Worm Gear (30 - 45 mm)CLAMP, Worm Gear (30 - 45 mm)
-
954-815504232 CLAMP, Worm GearCLAMP, Worm Gear
-
1022-8M2008928 FITTINGFITTING
-
1154-815504216 CLAMP, (25 - 40 mm)CLAMP, (25 - 40 mm)
-
1222-865317T01 FITTING/HOSE ASSEMBLY, 2 Bib Orifice Meter
(Refer to Service Bulletin MCM 2009-01)FITTING/HOSE ASSEMBLY, 2 Bib Orifice Meter
(Refer to Service Bulletin MCM 2009-01) -
1332-8M2004536 HOSE, Y-Fitting to Orifice MeterHOSE, Y-Fitting to Orifice Meter
-
1454-815504224 CLAMP, (32 - 50 mm)CLAMP, (32 - 50 mm)
-
1522-865324 QUICK CONNECTQUICK CONNECT
-
1632-8M0062657 HOSE, (13.00 Inches), Cut to 8 InchesHOSE, (13.00 Inches), Cut to 8 Inches
-
1722-865362 QUICK CONNECTQUICK CONNECT
-
1822-862993 FITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose BarbFITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb
-
1954-815504212 CLAMP, Worm Gear (20 - 32 mm)CLAMP, Worm Gear (20 - 32 mm)
-
2022-857175 FITTINGFITTING
-
2122-861406 SOCKETSOCKET
-
2232-8M0062635 HOSE, (34 Inches), WaterHOSE, (34 Inches), Water
-
2319-858240 CAPCAP
-
2432-8M2004598 HOSE, Heat Exchanger to PoppetHOSE, Heat Exchanger to Poppet
-
2532-8M0062669 HOSE, (36.00 Inches Bulk), Poppet to Collector
Cut to FitHOSE, (36.00 Inches Bulk), Poppet to Collector
Cut to Fit -
2654-815504104 CLAMP, (8 - 16 mm)CLAMP, (8 - 16 mm)
