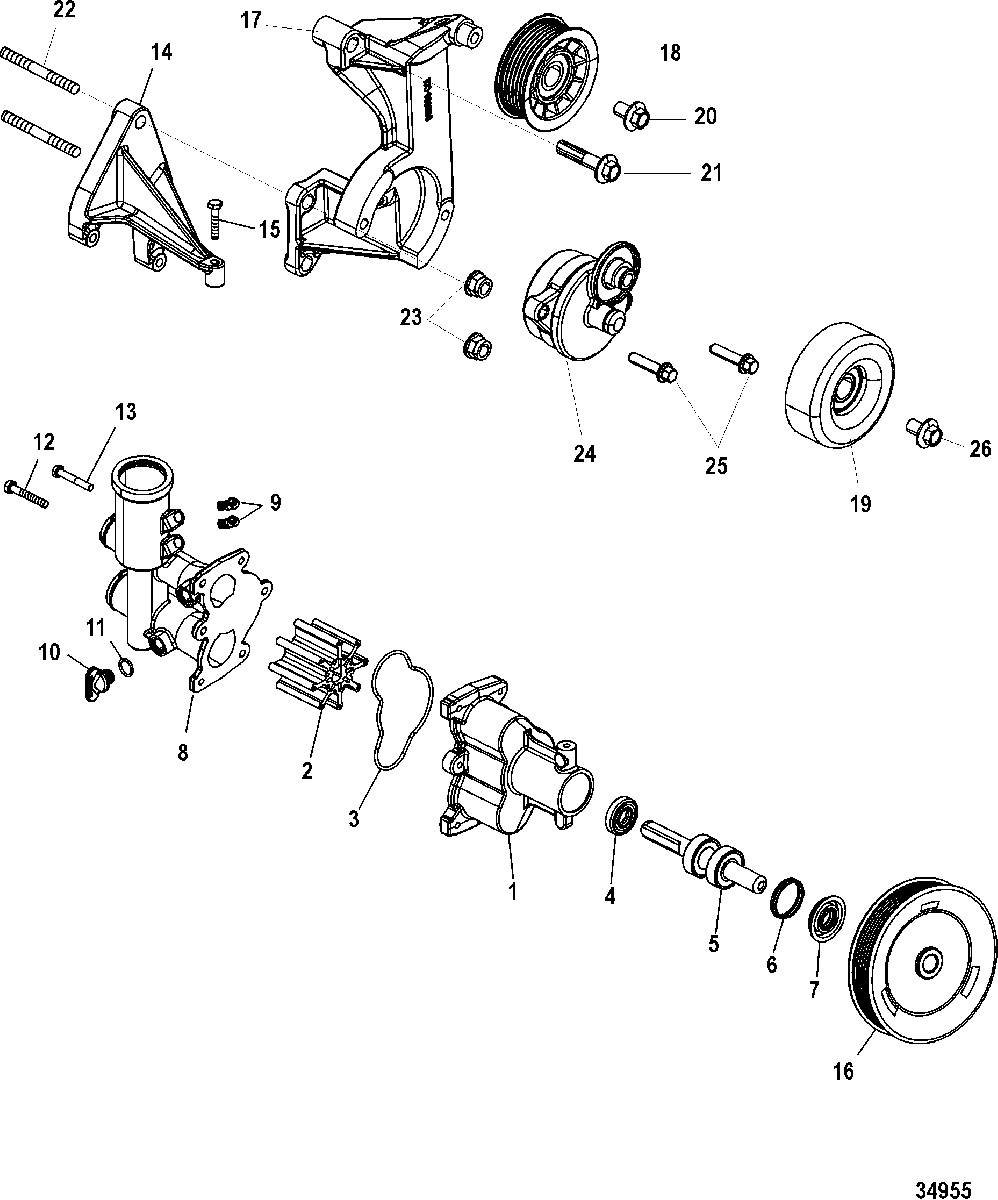

Seawater Pump для Mercruiser - 496 MAG EC (H.O. Model) 1A066166 THRU 1A350440
-
№АртикулНазвание
-
-46-8M0137218 PUMP KIT, Sea WaterPUMP KIT, Sea Water
-
18M0118062 HOUSING ASSEMBLY, ImpellerHOUSING ASSEMBLY, Impeller
-
247-8M0104229 IMPELLERIMPELLER
-
38M2021987 O-RING, FormedO-RING, Formed
-
426-8M2001645 SEAL, OilSEAL, Oil
-
58M0050018 DRIVESHAFT ASSEMBLY, ImpellerDRIVESHAFT ASSEMBLY, Impeller
-
6862039 TOLERANCE RINGTOLERANCE RING
-
726-862040 SEAL, LipSEAL, Lip
-
8863674A04 COVER KIT, Impeller HousingCOVER KIT, Impeller Housing
-
922-8M0082321 FITTING, Gray (90 Degree)FITTING, Gray (90 Degree)
-
922-8M0082322 FITTING, Orange (90 Degree)FITTING, Orange (90 Degree)
-
1022-8M0119211 PLUG ASSEMBLY, (.500-13) BluePLUG ASSEMBLY, (.500-13) Blue
-
1125-26802 O-RING, (.424 x .103)O-RING, (.424 x .103)
-
1210-4000328 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1310-8M2012296 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
14863859T BRACKET, Sea Water PumpBRACKET, Sea Water Pump
-
1510-4000331 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
16862351T PULLEYPULLEY
-
16862351T PULLEY
Axius SN# 1A349534 & BelowPULLEY
Axius SN# 1A349534 & Below -
168M0141645 PULLEY
Axius SN# 1A349535 & UpPULLEY
Axius SN# 1A349535 & Up -
17865596T01 BRACKET, Idler PulleyBRACKET, Idler Pulley
-
18865444T PULLEY, (3.50 Inch Diameter), Idler, GroovedPULLEY, (3.50 Inch Diameter), Idler, Grooved
-
19865777 PULLEY, Idler, Non-GroovedPULLEY, Idler, Non-Grooved
-
2010-4010816 SCREW, (M10 x 16) Hex Flange - Stainless SteelSCREW, (M10 x 16) Hex Flange - Stainless Steel
-
2110-4010845 SCREW, (M10 x 45) Hex Flange - Stainless SteelSCREW, (M10 x 45) Hex Flange - Stainless Steel
-
2216-854309 STUD, (M10 x 76)STUD, (M10 x 76)
-
2311-826292 NUT, (M10) Brass/Nickel PlatedNUT, (M10) Brass/Nickel Plated
-
2311-8M2000545 NUT, (M10) Stainless Steel
(SEACORE)NUT, (M10) Stainless Steel
(SEACORE) -
24865597T TENSIONER, BeltTENSIONER, Belt
-
2510-8M0103813 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
2610-4010820 SCREW, (M10 x 20) Hex Flange - Stainless SteelSCREW, (M10 x 20) Hex Flange - Stainless Steel
-
-879172A34 PULLEY KIT, High Current, Axius
SN# 1A349535 & UpPULLEY KIT, High Current, Axius
SN# 1A349535 & Up
