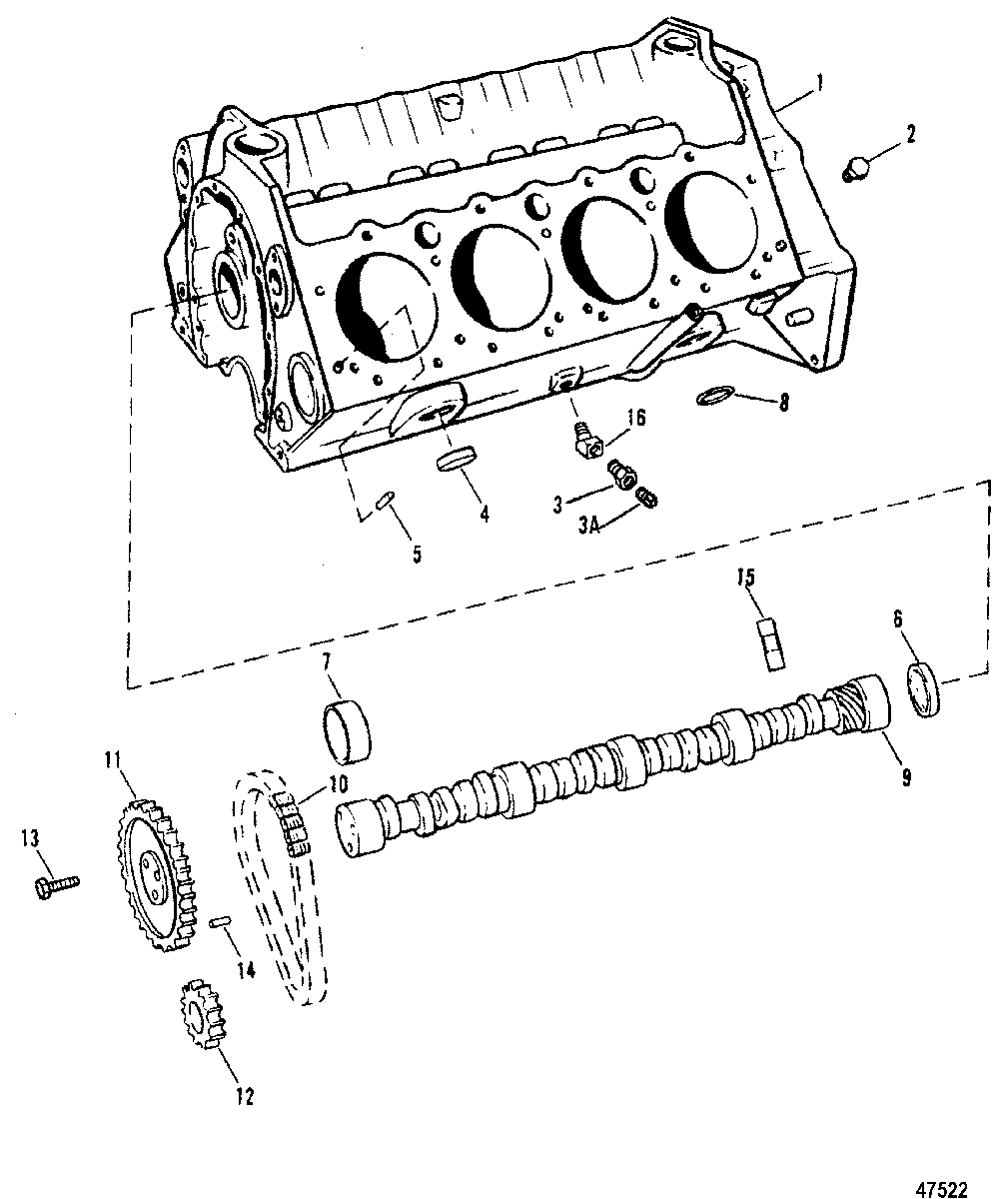

CYLINDER BLOCK AND CAMSHAFT для Mercruiser - 502 MAG. BRAVO (GEN. V) GM 502 V-8 1992-1993 0D824589 THRU 0F114528
-
№АртикулНазвание
-
1842-811527 CYLINDER BLOCKCYLINDER BLOCK
-
222-32561 PLUG, (.250-18 x .41) (1/4")PLUG, (.250-18 x .41) (1/4")
-
322-48556 BUSHING , Reducer (.250 To .125)BUSHING , Reducer (.250 To .125)
-
3A22-328022 PLUG, Pipe (.125-27)PLUG, Pipe (.125-27)
-
419-34270 EXPANSION PLUG, (1.625), Expansion (1-5/8" DIA.)EXPANSION PLUG, (1.625), Expansion (1-5/8" DIA.)
-
517-52190 PINPIN
-
619-94140 EXPANSION PLUGEXPANSION PLUG
-
723-85684 BEARING SETBEARING SET
-
825-69756 O-RING, (.500 Inch) (1/2")O-RING, (.500 Inch) (1/2")
-
9431-9830 CAMSHAFTCAMSHAFT
-
1061728 CHAIN, TIMING
(Double Roller Chain)CHAIN, TIMING
(Double Roller Chain) -
10845796T CHAIN, TIMING
(Single Roller Chain)CHAIN, TIMING
(Single Roller Chain) -
1143-61726 SPROCKET, CAMSHAFT
(Double Roller Chain)SPROCKET, CAMSHAFT
(Double Roller Chain) -
1143-811578 SPROCKET, CAMSHAFT
(Single Roller Chain)SPROCKET, CAMSHAFT
(Single Roller Chain) -
1243-61727 SPROCKET, CRANKSHAFT
(Double Roller Chain)SPROCKET, CRANKSHAFT
(Double Roller Chain) -
1243-845794T SPROCKET, CRANKSHAFT
(Single Roller Chain)SPROCKET, CRANKSHAFT
(Single Roller Chain) -
1310-8M0043993 SCREW, (.312-18 x .750)SCREW, (.312-18 x .750)
-
1417-843378 PIN, Dowel (1/4 In. Diameter) (1/4" DIA.)PIN, Dowel (1/4 In. Diameter) (1/4" DIA.)
-
15811583 LIFTERLIFTER
-
1622-37682 FITTING, Elbow (45 Degree) (45DEGREES)FITTING, Elbow (45 Degree) (45DEGREES)
-
-807745A3 MARINE LONG BLOCK ENGINEMARINE LONG BLOCK ENGINE
-
-27-812712A92 GASKET SET, OVERHAUL (CONTENTS INDICATED BY #)GASKET SET, OVERHAUL (CONTENTS INDICATED BY #)
-
-92-809826 SEALER, Red RTV, RED RTVSEALER, Red RTV, RED RTV
-
-92-34227Q02 SEALING COMPOUND, (16 Ounce)SEALING COMPOUND, (16 Ounce)
